Strainer

  • Removes particles to prevent system blockages and reduce maintenance costs.
  • Protects downstream equipment from debris, sand, and rust damage.
  • Extends pump, valve, and equipment lifespan by eliminating solid particles.

Strainer

Sedelon specializes in producing strainers in various materials, sizes, and pressure. Our strainers are manufactured and tested according to the highest international standards.

Strainers are essential equipment used in various industries to remove unwanted particles and impurities from liquids or gases. These strainers play a crucial role in maintaining the quality and efficiency of industrial processes. Strainers are designed to capture and separate solid particles, debris, and contaminants from the fluid flow. They are commonly used in pipelines, tanks, and other systems to protect sensitive equipment such as pumps, valves, and meters from damage caused by foreign objects.

  • Design Standards: Available in DIN, ANSI, etc., ensuring compatibility with various systems.
  • Material Variety: Mainly in carbon steel, stainless steel, bronze, alloy steel, etc.
  • Connection Types: Threaded, flanged, and welded (butt weld, socket weld)

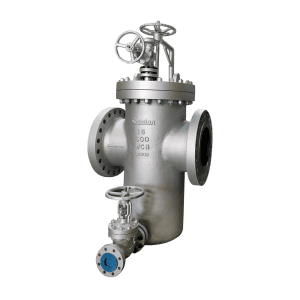

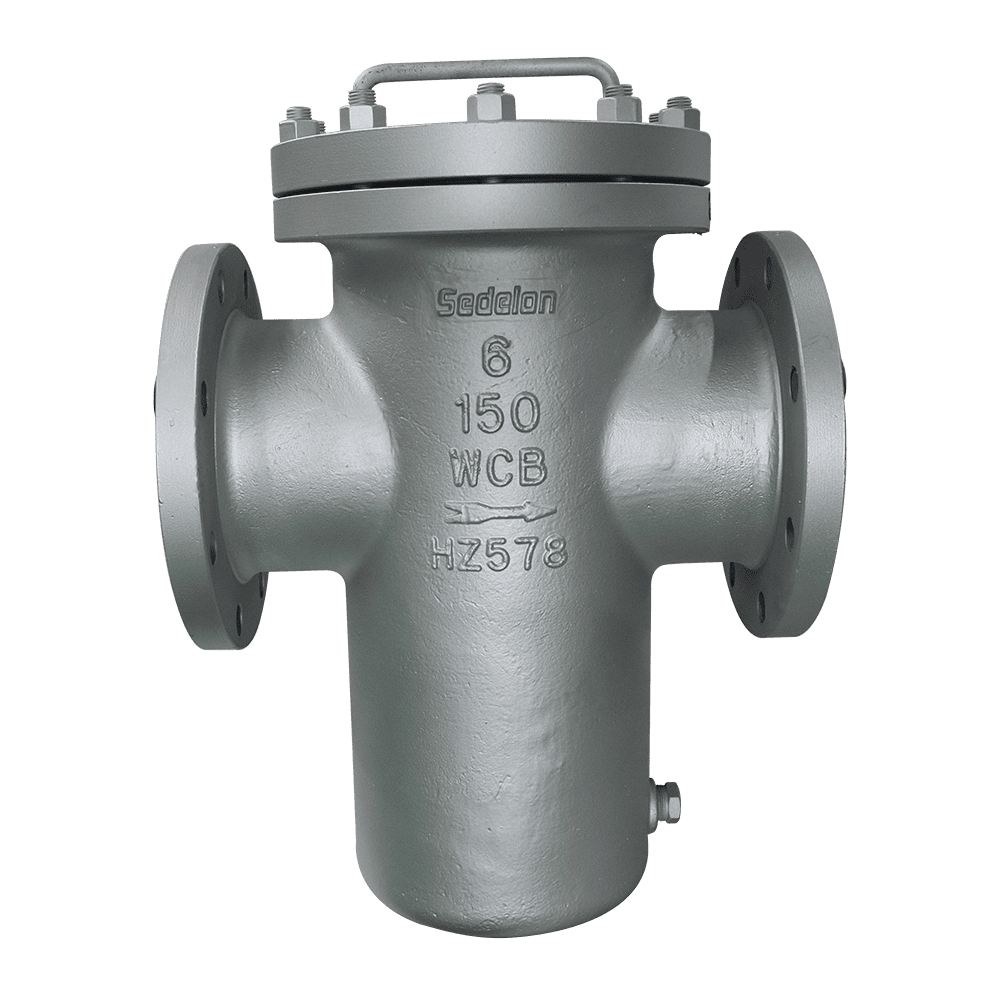

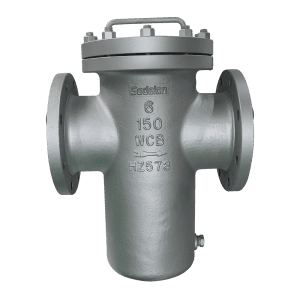

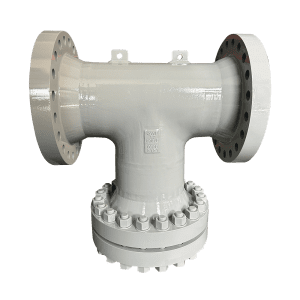

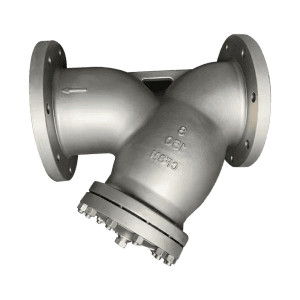

  • Valve Types: Basket Strainer, Davit Assembly Basket Strainer, T Type Strainer, and Y Type Strainer
  • Chemical Industry: Strainers are used in the chemical industry to remove impurities, such as rust and other solids, from process fluids. This helps in maintaining the quality of the products and protecting equipment from damage.
  • Oil and Gas Industry: Strainers are used in the oil and gas industry to remove debris, sand, and other solids from crude oil, natural gas, and various process fluids. This helps in protecting downstream equipment and ensuring the quality of the products.

Materials:

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Materials:

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Materials:

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Materials:

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Why Choose Sedelon as Industrial Valves Vanufacturer?

Sedelon is your reliable industrial valve manufacturer. We have a trusted supply network as well as we offer the latest production and assembly machinery. Here are the reasons why you should choose us as your industrial valve supplier.

Frequently Asked Questions

1、Materia
2、After Sales
3、Design
4、Standard
5、Production capability
6、Others
What material can you produce?
We mainly produce carbon steel (WCB, LCB, A105, LF2, etc.), alloy steel (WC6, WC9, C5, F11, F22, F5, etc.), stainless steel (CF8, CF8M, 4A, 5A, F304, F316, F51, F53, etc.), bronze (C95800, C95500, C83600, etc.)
Could you do PMI (Positive Material Identification) on the material?
Yes, we have portable PMI machines.
Could you provide certificate of material?
Yes, we can provide a material report EN 10204 3.1 certificate after the strainer is completed.
Could you provide test bars for chemical analysis, impact test and other tests?
Yes, as long as the customer requests the test bars, we will prepare it during production.
What are the screen materials of the strainers?
Screens are generally stainless steel material, such as: SS316, SS304, etc.
Could the mesh be produced as required?
Yes, we can prepare the screen with required mesh.
How long is the warranty?
Our warranty is 12 months from the date leaving our company.
What is your payment term?
We prefer T/T.
What is the standard of package?
We adopt standard seaworthy packing, strainers in water-proof plastic bags, fixed in plywood case. If client need non-fumigation wooden box, we can provide too.
Can you submit ITP for strainers production?
Yes, we can provide.
Do you have your own QMS for strainer production?
Yes, we have our own Quality Management System.
Do you supply Y-strainer with BW ends connection?
Yes, besides BW, we also can supply flange, SW, NPT connection.
Can the Y-strainer with two nozzles?
Yes, we can produce.
What is the mesh size of the screen in the strainers?
Mesh can be customized, generally our manufacture standard is mesh 40.
What type of strainer can you produce?
Y type strainer, T type strainer, and basket strainer.
1.What is a strainer?
Strainer is a device that can mechanically removes solids from a flowing fluid.
What information will be shown on the strainer body?
On the strainer body it shows: body material, size, pressure rating and heat number. The marking is conducted according to MSS SP25 standard.
What standard do you produce strainers according to?
We can produce strainers with standard of ANSI, DIN, JIS, etc.
Can you make custom production on request?
We can customize based on the original standard strainer body according to customer's special requirements.
Do you have stock?
Yes, WCB material strainers are available in stock. Stock strainer size range is 2”~8”.
What is the pressure range of strainer that you can produce?
We can supply strainer pressure range from 150LB to 2500LB.
Do you have any MOQ limit for strainer order?
For small size we have MOQ limit. For big size, 1 piece is okay.
What is your delivery time?
Generally it is 5-10 working days if the goods are in stock. And it is 30-35 working days if produce new ones, it depends on material and quantity.
What is your delivery on time rate last year (%)?
It’s above 99.5%. We have system and Kan ban board to support the order process tracking.
Can you make Non Destructive Testing (NDT)?
Yes, we can make, such as Radiographic Testing(RT), Ultrasonic Testing(UT), Penetrant Testing(PT), Magnetic Particle Testing(MPT).
What is the size range for strainer?
Our size range is 1/2" to 24".
Do you have tagging are required for all items? Tag details shall be furnished in case of order?
Yes, we can make the tagging according to your requirement.
How to install a strainer in the pipeline?
The strainer should be properly installed according to the arrow on the body pointing in the direction of flow.
How to select a strainer?
It depends on maximum working pressure, open area ratio, pressure drop and velocity.
Could the paint be as per our request?
Yes, we have our own painting procedure standard, and we can also customize the painting according to the special requirement.
What technical documents can you provide?
We can provide drawings and catalogs, ITP, MTC, etc.
Could you please provide samples?
Yes, we can.
Do you have equipment and staff to perform NDT?
Yes, we have the equipment and qualified staff to operate the NDT.
How to ship?
Strainers can be dispatched by sea, air and express, etc.
