If you’re in the market for swing check valves, understanding the different types available can make a huge difference in your purchasing decision. These valves are essential for preventing backflow in piping systems, and choosing the right type ensures efficiency and longevity. Let’s dive into the various types of swing check valves, their features, and how Sedelon’s products stand out.
Types of Swing Check Valves
1. Standard Swing Check Valve

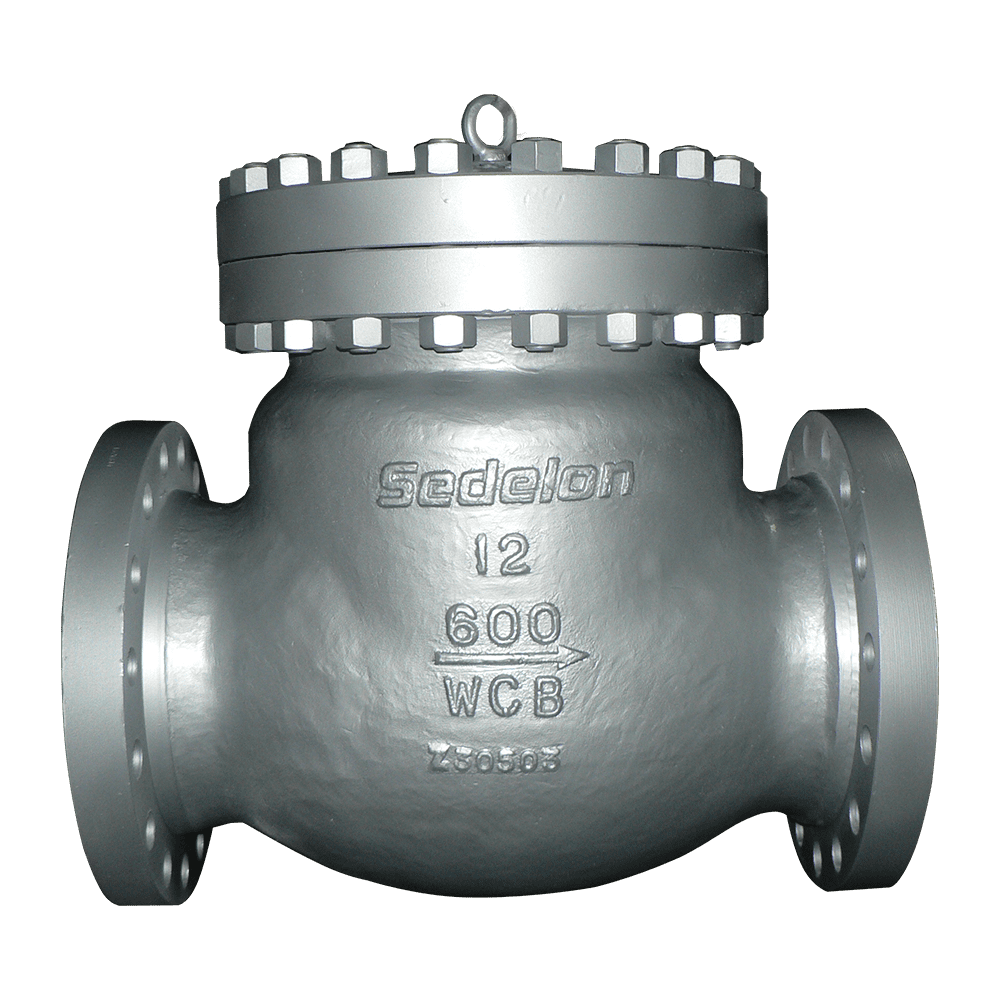

The most common type, the standard swing check valve, features a hinged disc that swings open to allow flow and closes to prevent backflow. It’s widely used in water, oil, and gas pipelines.
– Simple design, easy maintenance
– Suitable for horizontal and vertical installations
– Moderate pressure and temperature handling
2. Lift Swing Check Valve
This type combines the swing mechanism with a lift disc, allowing the valve to open fully with minimal pressure drop. It’s ideal for systems requiring quick response to flow changes.
– Faster disc movement reduces wear
– Better for high-pressure applications
– Often used in steam and chemical industries
3. Dual Plate Swing Check Valve
Featuring two spring-loaded plates that swing open, this valve type offers a compact design and reduced weight compared to traditional swing check valves.
– Compact and lightweight
– Quick closing action reduces water hammer
– Suitable for tight spaces
4. Wafer Swing Check Valve
Designed to fit between flanges, wafer swing check valves save space and are easy to install. They are popular in HVAC and water treatment systems.
– Space-saving design
– Cost-effective installation
– Compatible with various flange standards
5. Tilting Disc Swing Check Valve
This valve uses a disc that tilts to open and close, providing a more balanced flow and less resistance.
– Smooth flow with minimal turbulence
– Reduced pressure loss
– Ideal for large diameter pipelines
Comparison Table of Swing Check Valve Types
| Type | Design | Installation | Pressure Range | Typical Applications | Advantages |
|---|---|---|---|---|---|
| Standard Swing Check Valve | Hinged disc | Horizontal/Vertical | Low to Medium | Water, Oil, Gas | Simple, easy maintenance |
| Lift Swing Check Valve | Hinged + Lift disc | Horizontal | Medium to High | Steam, Chemicals | Fast response, durable |
| Dual Plate Swing Check Valve | Two spring-loaded plates | Horizontal | Medium | HVAC, Water | Compact, reduces water hammer |
| Wafer Swing Check Valve | Wafer style | Between flanges | Low to Medium | Water treatment, HVAC | Space-saving, cost-effective |
| Tilting Disc Swing Check Valve | Tilting disc | Horizontal | Medium to High | Large pipelines | Low pressure loss, smooth flow |
Key Points to Remember
– Swing check valves prevent backflow by allowing fluid to flow in one direction only.
– Different types suit different pressure ranges and installation needs.
– Material and design affect durability and maintenance frequency.
– Sedelon offers a wide range of swing check valves tailored to various industries.
– Proper valve selection can reduce operational costs and downtime.
Why Choose Sedelon Swing Check Valves?
Sedelon’s swing check valves are engineered with precision and quality materials to ensure reliable performance in demanding environments. Whether you need a compact wafer valve or a heavy-duty lift swing valve, Sedelon has you covered. Check out their full product range here: [Sedelon Swing Check Valve].
Conclusion
Choosing the right swing check valve is crucial for maintaining system integrity and efficiency. From the classic standard swing valve to the innovative dual plate and tilting disc designs, each type offers unique benefits tailored to specific applications. When you select Sedelon, you’re not just buying a valve—you’re investing in quality, durability, and peace of mind. Don’t hesitate to explore Sedelon’s offerings and find the perfect valve for your needs today!
FAQs
What is the main function of a swing check valve?
It prevents backflow by allowing fluid to flow in only one direction, protecting pumps and equipment.
Can swing check valves be installed vertically?
Yes, but it depends on the valve type and flow direction; standard swing check valves often support vertical installation.
How do I choose the right swing check valve for my system?
Consider pressure, temperature, fluid type, and installation space. Sedelon’s product specs can guide you.
What materials are commonly used for swing check valves?
Cast iron, stainless steel, carbon steel, and bronze are typical, chosen based on application requirements.
How often should swing check valves be maintained?
Regular inspection is recommended, especially in harsh environments, to ensure the disc and hinge are functioning properly.
