Bronze Valve Manufacturer

1.Primarily according to API 600, API 6D and DIN standards.
Available with plug disc, needle disc, parabolic disc, ball type disc, etc.
2.Available in structure of Y type, angle type, straight type, etc.
3.Simple structure, easy to repair and replace
4.Regulating flow in the pipeline
5.Corrosion resistance , oxidation resistance , electric resistance and clean sanitation.

Categories

Bronze Valve

Sedelon® is a professional bronze valve manufacturer based in China, supplying industrial bronze valves to over 50 countries worldwide. Our bronze valves are engineered for highly corrosive environments, including desalination plants, offshore platforms, chemical processing facilities, and seawater service systems.
All bronze valves are manufactured in strict accordance with API 600, API 6D, and DIN standards, and have passed Fugitive Emission certification (ISO 15848-1:2006), ensuring low-emission and low-leakage performance throughout their service life.
Available types include Bronze Gate Valves, Bronze Ball Valves, Bronze Globe Valves, Bronze Check Valves, and Bronze Butterfly Valves. Sizes range from ½” to 24″, with pressure ratings from PN10 to PN40 (or Class 150 to Class 600). Actuation options include handwheel, gear-operated, pneumatic, and electric motor actuators.

  • Made from corrosion-resistant bronze, ideal for high salinity and corrosive environments.
  • Options include Gate, Ball, Globe, Check, and Butterfly valves for versatile applications.
  • Available with hand wheel, gear-operated, pneumatic, or electric motor options.
  • Low-emission design, certified to ISO 15848-1:2006, minimizing fugitive emissions and environmental impact.
  • API 600: Standard for Bronze Gate valves.
  • API 6D: Pipeline Valves (Bronze Wafer Check Valve, short-pattern wafer body)
  • Fugitive Emission Test Certificate ISO 15848-1:2006 for low emission Bronze valves.
  • DIN Standards: Bronze Gate and Globe Valves (European market)

Valve failures in seawater pipelines are often not caused by insufficient pressure, but rather by the wrong choice of material: 316L can develop pitting corrosion and perforations in warm seawater within just 18 months, while duplex stainless steel, although corrosion-resistant, creates a potential difference with carbon steel pipes, which accelerates the corrosion of the steel pipes. Nickel-aluminum bronze ball valves (C95800 / C95500) address both of these issues simultaneously—they resist seawater pitting, prevent fouling by marine organisms, and are galvanically compatible with steel pipes. This series is manufactured in accordance with API 608, features RF flanged ends, and covers Class 150 (NPS 2”–10”) and Class 300 (NPS 2”–8”). Each unit undergoes body and seal testing in accordance with API 598.

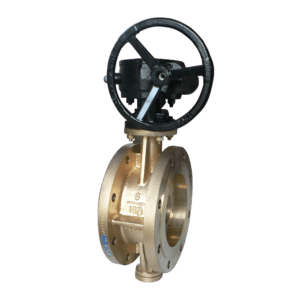

Bronze butterfly valves are the standard choice for large-diameter seawater, desalination, and offshore pipelines: for the same diameter, they are shorter and lighter than gate valves and cost about half as much, while bronze ensures they are resistant to pitting corrosion and do not accumulate marine growth in seawater. This series is designed and manufactured in accordance with API 609 (concentric, resilient seat). Face-to-face dimensions comply with ANSI B16.10, and flange ends comply with ANSI B16.5, covering NPS 2″–24″ and Class 150–300. The valve body and disc are made of copper alloys such as C95800, C95500, and C95600, and each unit is pressure-tested in accordance with API 598.

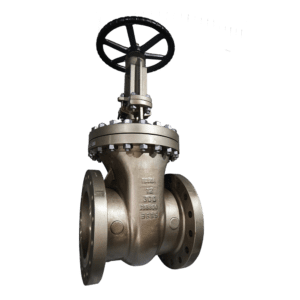

For large-diameter seawater piping above DN100, stainless steel valves can be prohibitively expensive, while conventional cast iron valves are prone to rapid corrosion in seawater service. Large-size nickel-aluminum bronze gate valves provide excellent resistance to seawater corrosion and dezincification, making them a reliable choice for large-diameter piping in marine, offshore, and seawater systems.

This series is designed and manufactured in accordance with API 600 and applicable DIN standards, covering DN100–DN600 and PN10–PN25. Valve bodies are manufactured from nickel-aluminum bronze, and each valve is hydrostatically and seat tested in accordance with API 598 prior to shipment. Classification society certification can also be provided for marine applications.

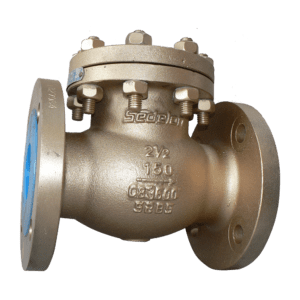

The standard configuration for bronze check valves in seawater pipelines is flanged—seawater systems require periodic disassembly and inspection for marine fouling and corrosion, and welded-end valves cannot be removed. Clamp-type valve bodies are secured by long bolts between the flanges on both sides of the pipeline and cannot be disassembled or installed independently. This series is designed and manufactured in accordance with BS 1868, with flange ends complying with ANSI B16.5 and face-to-face dimensions complying with ANSI B16.10. It covers NPS 2″–24″ and Class 150–900. The valve bodies are made of C95800 and C95500 nickel-aluminum bronze, and each unit is pressure-tested in accordance with API 598.

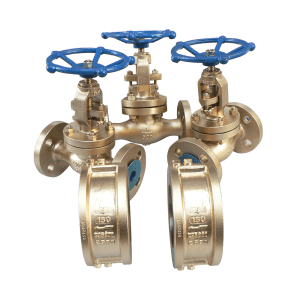

“API 600 bronze valves” refers to bronze valves whose dimensions and pressure boundaries follow the American standards system: face-to-face per ANSI B16.10, flanges per ANSI B16.5, butt-weld ends per ANSI B16.25, pressure ratings per Class 150–900, sizes NPS 2″–24″, and pressure testing per API 598. It should be noted that API 600 itself is a cast steel gate valve standard, and bronze is not within its material scope—materials and pressure-temperature ratings are issued separately in accordance with copper alloy standards.

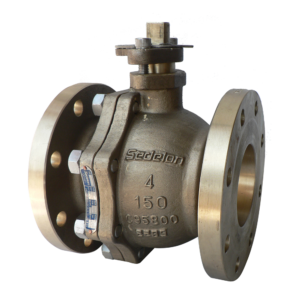

In a bronze floating-ball valve, the ball has no upper or lower support shafts; it is suspended between two valve seats and is pressed against the outlet-side seat by the pipeline pressure—the greater the pressure differential, the tighter the seal. This series is pressure-tested in accordance with API 598 and covers Class 150 (NPS 2″–10″) and Class 300 (NPS 2″–8″). The valve body is made of C95800 / C95500 nickel-aluminum bronze with RF flanged ends, and is designed for use in seawater, desalination, and marine applications.

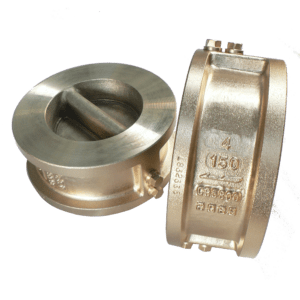

A wafer-type check valve does not have its own flanges—it is sandwiched between two pipe flanges and secured by long bolts that pass through the valve body. As a result, it weighs only a fraction of what a flanged valve does and takes up virtually no space in the pipeline. This series is cast from copper alloys such as C95800, C95500, and C95600. It is designed and manufactured in accordance with API 594 and pressure-tested per API 598, covering NPS 2″–24″ and Class 150–600.

DIN bronze gate valves are manufactured in accordance with the European standards system: face-to-face dimensions per EN558-1/DIN3202 F7, flanges per EN1092-1/DIN2545, design and manufacture per EN1984/DIN3352, and pressure testing per EN12266/DIN3230. Sizes are designated by DN, with pressure ratings covering PN16, PN25, PN40, and PN63. Cast bronze valve body materials include C95800, C95500, C95600, and others, suitable for seawater and corrosive media pipelines.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

When “flow regulation” is required rather than simply “shut-off,” the globe valve is the only bronze valve capable of doing so: ball valves and plug valves are quarter-turn on/off valves; leaving them partially open for extended periods can cause cavitation and wear on the sealing surfaces. The disc of a globe valve moves up and down along the centerline of the seat and can be stabilized at any opening position. This series is manufactured in accordance with MSS SP-80 / BS 5154, covering NPS 2″–12″ and Class 150–900. The valve bodies are made of cast aluminum bronze grades such as C95800, C95600, and C95500, and each valve is pressure-tested in accordance with API 598.

Bronze gate valves provide fully open or fully closed isolation for seawater, desalination, cooling water, and other compatible corrosive media. The range shown on this page covers NPS 2″–24″, Class 150–900, with copper alloy material options including C95800, C95500, C95600, C95200, and C95300. Face-to-face dimensions follow ANSI B16.10, flanges follow ANSI B16.5, and pressure testing follows API 598. Specify the bronze material standard and its pressure-temperature rating separately; API 600 is a cast steel gate valve standard and does not itself establish bronze material compliance.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

DIN bronze globe valves are manufactured in accordance with the European standards system: face-to-face dimensions comply with EN 558-1/DIN 3202 F2; flanges comply with EN 1092-1/DIN 2545; design and manufacture comply with EN 13709/DIN 3356; and pressure testing complies with EN 12266/DIN 3230. Sizes start at DN50, with pressure ratings ranging from PN16 to PN63. The cast bronze valve bodies are made of materials such as C95800, C95500, and C95600. Unlike gate valves, globe valves can be used for flow regulation.

In seawater, seawater slurry, and sand-laden media, material buildup, erosion, or even jamming can occur between the ball and seat of a standard ball valve. Bronze plug valves feature a conical plug that provides a full-circumferential seal; their flow path is straight with no dead corners, allowing pigging tools to pass through normally. When equipped with an in-line grease injection system, seal grease can be replenished under pressure. The valve bodies in this series are made of C95800 and C95500 nickel-aluminum bronze, with ratings of Class 150–300 and NPS 2″–12″; each valve is pressure-tested in accordance with API 598.

Why Choose Sedelon as Industrial Valves Manufacturer?

Sedelon is your reliable industrial valve manufacturer. We have a trusted supply network as well as we offer the latest production and assembly machinery. Here are the reasons why you should choose us as your industrial valve supplier.

Frequently Asked Questions

1、Material
2、After Sales
3、Design
4、Standard
5、Production capability
6、Others
What material can you produce?
B61 C92200, B62 C83600, B148 C95800, B148 C95500, B148 C95400, etc.
Do the bronze valves be used for sour/sea water medium?
Yes, this material has good abrasion, corrosion resistance, and is suitable for seawater environments.
What are the advantages and properties of bronze material?
This material has good abrasion and corrosion resistance, especially for seawater applications.
Do you have stock in warehouse?
We don’t have stock for bronze valves, but for MSS SP-80 standard small sizes, delivery can be 2-3 weeks.
What’s the suitable temperature range of bronze valves?
-29~260℃
What’s the warranty?
Our warranty is 12 months from the date leaving our factory.
Can you provide an operation and maintenance manual for valves?
Yes, we can provide.
What’s your packing method?
Seaworthy plywood case, valves in water-proof plastic bags, fixed in the case. Non-fumigation box available upon request.
Why is FF flange recommended for bronze valves?
Due to the soft nature of bronze, raised faces may easily be damaged.
Are your bronze valves fire-proof? Are they fire-safe certified?
Yes, we have API 607 and API 6FA fire-safe certificates.
Do your bronze valves have renewable seats?
No, bronze valves typically have integral seats.
Do the valves have zero leakage?
Yes, they are zero leakage except for check valves, which may allow minor leakage per standards.
What is the difference between API 600 and API 6D bronze valves?
API 600 covers bronze gate valves used in general industrial and pipeline service, while API 6D is specifically for pipeline valves including check valves with full-bore, bidirectional designs suitable for pig-able pipelines.
What is the difference between brass and bronze valves?
Bronze has better corrosion resistance and mechanical properties compared to brass.
What sizes are available for bronze valves?
Sedelon® bronze valves are available in sizes from DN15 (½") to DN600 (24"), covering pressure ratings from PN10 to PN40 and ANSI Class 150 to Class 600.
Can bronze valves be used with pneumatic or electric actuators?
Yes. Sedelon® bronze valves are designed with ISO 5211 top flange mounting pads, making them fully compatible with pneumatic actuators, electric actuators, and gear operators for remote or automated control.
What certificates do you have?
API, CE, ISO, fugitive emission test, etc.
What valve standards do you mainly produce?
ANSI, DIN, JIS, etc.
Can you provide FM/UL certification?
No, but we have API 607/6FA, and our valves meet fire-safe design requirements.
Can you perform NDE tests for bronze valves?
PT tests are possible, but RT/MT/UT tests are not recommended due to the soft, non-magnetic nature of bronze.
What’s your production scope for bronze material?
Gate Valve, Globe Valve, Check Valve, Ball Valve, Butterfly Valve, Plug Valve, Strainer, etc.
What is the MOQ for your valves?
For large sizes, one piece is acceptable, but small size orders may incur additional costs.
How long is your delivery time?
Delivery time depends on material and quantity; stock orders take 2-3 weeks.
Can you provide a 3.1 certificate?
Yes, we can provide an EN 10204 3.1 material certificate after production.
Can you provide a certificate of origin?
Yes, we can provide a certificate of origin.
Can you provide samples?
Yes, we can provide samples.
Will the offer include painting costs?
Yes, standard painting is included, but bronze and stainless steel valves typically do not need coating.
What are your payment terms?
Our payment terms are by T/T.
