Bronze Lug type Butterfly Valve-Bronze valve manufacturer
A Bronze Butterfly valve is a valve which can be used for isolating or regulating flow.
Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

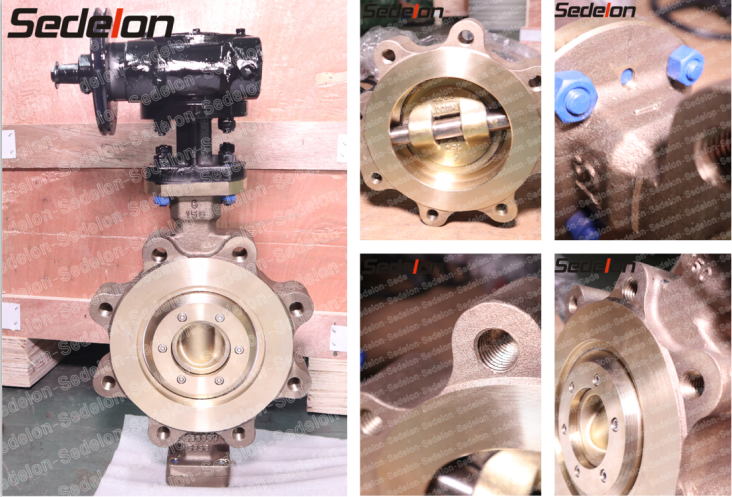

The specifications of the bronze butterfly valves in this order is in below.
Size:6inch
Pressure:class 150LB
Body Material:Bronze C95800
Disc Material:Bronze C95800
Stem Material:Monel K500
Boltings:B8M/8M lined PTFE
Connection:Lug type
Operated:Worm Gear
Application
Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Design and Manufacture：API 609
Pressure Test：API598
Materials：C95800、C95500、C95200、C95300、C95400 ect.
Class150 Bronze Butterfly Valve
