Introduction
In industrial fluid control systems, high-reliability and cost-effective valves are required to control, protect and limit the flow of liquids, gases and vapors under various operating conditions. Among the types of industrial valves, the butterfly valve is one of the most widely used options in modern piping systems. With a simple design featuring a rotating plate structure, it offers excellent sealing performance, appropriate flow regulation capabilities, and outstanding cost comparison performance. In this way, it achieves a smaller volume and energy efficiency compared to many existing valves. From basic HVAC systems to large-scale petrochemical, power generation and wastewater treatment facilities, butterfly valve products deliver reliable performance even in complex operating conditions. This article covers the definition, core butterfly valve types, industrial applications, pros and cons, professional solutions, installation guidelines, maintenance protocols and selection tips. It helps engineers, purchasers and operators maximize valve value and resolve common industrial installation and operation issues efficiently.
What Is a Butterfly Valve?
The butterfly valve is a device designed to cut off, regulate, and restore the flow of liquids, utilizing a quarter-turn action. Its main components include a circular plate placed at the center of the stem. When activated, this plate rotates 90 degrees around the stem, allowing for complete opening and closing or partial regulation of the flow. This structure provides high flexibility in controlling the flow rate and volume of liquids.
Unlike gate valves and globe valves, the butterfly valve has a slender rotating structure, characterized by its compactness and light weight. The main components include the valve body, valve plate, valve support, valve logic element, and operating device. In the fully open position, the valve plate is parallel to the direction of fluid flow, minimizing the resistance of the fluid.
In the closed position, the valve plate is firmly fixed to the support, ensuring complete sealing. Due to its simple structure, fast startup, low pressure loss, and strong adaptability to various materials, the butterfly valve is widely used as the most suitable valve for regulating large pipeline flow. In modern industrial fields, from general shut-off and precise flow regulation scenarios.
CommonButterfly Valve Types
According to structural design, sealing form, and functional positioning, industrial butterfly valves are mainly divided into three core types, each with unique performance characteristics and targeted applicable scenarios to meet differentiated industrial fluid control demands.
Resilient Seat Butterfly Valves
Resilient seat butterfly valves, also known as soft-seal butterfly valves, adopt elastic rubber materials such as EPDM, NBR, and PTFE as the sealing seat. The elastic deformation of the rubber seat enables the valve disc to achieve zero-leakage tight sealing when closed. This type of butterfly valve features excellent sealing performance, low opening and closing torque, and flexible operation, with outstanding adaptability for clean and low-corrosive fluid media.
With the advantages of low cost, no leakage, and stable daily operation, resilient seat butterfly valves are the most widely used general-purpose butterfly valves. They are mainly suitable for normal-temperature and medium-low pressure working conditions, including water supply and drainage, HVAC systems, and general industrial circulating water pipelines. Their only limitation is that elastic rubber seats are prone to aging and damage under high temperature, high pressure, and strong corrosive media, limiting their application in extreme working scenarios.

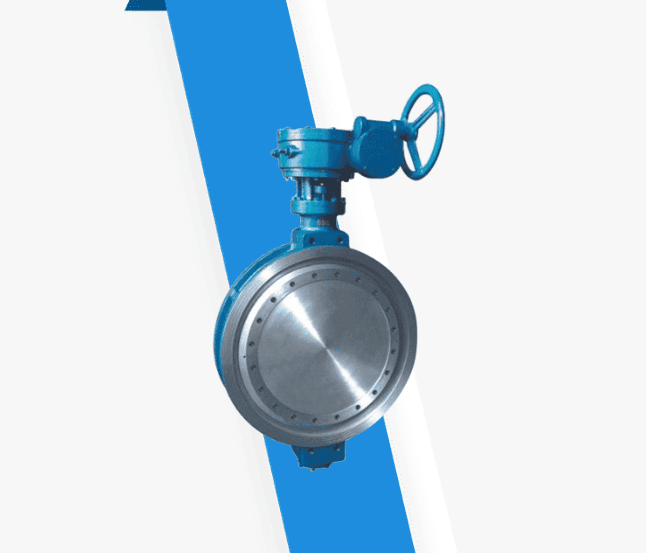

Offset Butterfly Valves
Offset butterfly valves are upgraded hard-seal butterfly valves, including single-offset, double-offset, and triple-offset structural designs. Different from concentric resilient seat butterfly valves, their valve stem and disc center are offset from the sealing surface, which effectively eliminates friction between the disc and the seat during opening and closing processes.
Triple offset butterfly valves, the most high-performance type in this series, adopt an all-metal hard-seal structure with no elastic components. They feature high temperature resistance, high pressure resistance, wear resistance, and corrosion resistance, completely solving the aging and failure problems of soft-seal valves in harsh environments. Offset butterfly valves are suitable for high-temperature steam, high-pressure oil, chemical corrosive media, and long-term continuous operation industrial systems, serving as heavy-duty fluid shut-off and control core equipment in process industries.

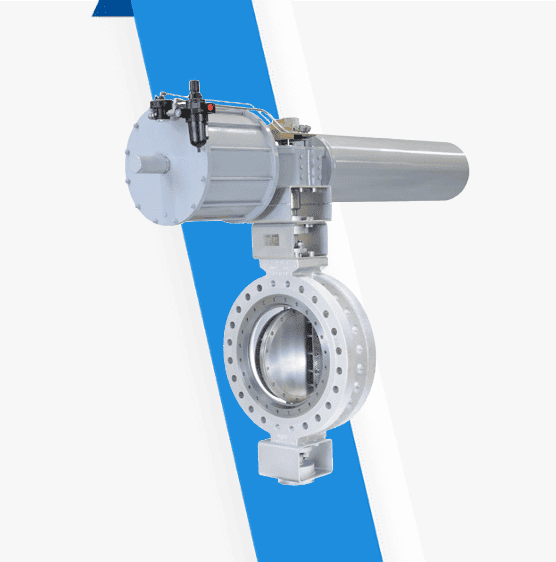

Butterfly Control Valves
A butterfly control valve is a special functional valve optimized for precise flow regulation, usually equipped with electric or pneumatic actuators and intelligent positioning devices. Compared with ordinary shut-off butterfly valves, their disc flow curve is precisely optimized, enabling linear adjustment of fluid flow, pressure, and velocity.
This type of valve can realize stepless adjustment of pipeline fluid within 0-100% opening, with high control accuracy and fast response speed. It can automatically adjust the opening according to system signal feedback to maintain stable pipeline fluid parameters. Butterfly control valves are widely used in industrial process scenarios requiring precise fluid regulation, such as chemical reaction processes, power plant water supply regulation, and wastewater treatment flow balance control.
| Valve Type | Core Structure & Seal | Key Advantages | Limitations | Typical Application Scenarios |
| Resilient Seat Butterfly Valve | Concentric structure, soft rubber seal (EPDM/NBR/PTFE) | Zero leakage, low torque, cost-effective, flexible operation | Poor high-temperature & anti-corrosion performance, easy seal aging | Water supply, HVAC, general circulating water, normal-temperature low-pressure pipelines |
| Offset Butterfly Valve | Single/double/triple offset, all-metal hard seal | High temperature & pressure resistance, wear & corrosion resistant, long service life | Slight allowable leakage, higher procurement cost | Petrochemical, high-temperature steam, power generation, heavy-duty continuous operation systems |
| Butterfly Control Valve | Optimized disc flow curve, equipped with electric/pneumatic actuator & positioner | Precise linear flow regulation, fast response, automatic adjustment | Higher cost, requires regular calibration, not purely for shut-off | Chemical process regulation, wastewater flow balance, power plant fluid control |
Core Industrial Applications
Benefiting from diverse structural types and flexible performance matching, butterfly valves cover both civil general pipeline systems and heavy industrial process equipment, realizing dual functions of reliable shut-off and accurate flow control.
General Shut-off Service
Water, HVAC, General Pipeline Systems
In civil and general industrial fields, butterfly valves are the mainstream choice for pipeline shut-off and on-off control. In urban water supply and drainage systems, they are used for trunk pipeline fluid switching, water source cutoff, and pipeline maintenance isolation, adapting to large-diameter water pipeline working conditions. In HVAC heating and central air conditioning systems, butterfly valves control the circulation and cutoff of hot water, cold water, and chilled water, with fast switching speed and low pipeline resistance, ensuring efficient and energy-saving system operation.
In addition, general butterfly valves are also widely used in fire protection pipeline systems, factory circulating water pipelines, and building fluid systems. Their compact structure saves pipeline installation space, and low cost reduces project investment, making them the most cost-effective shut-off valve for general fluid scenarios.
Process & Energy Industry Applications
Petrochemical, Power and Wastewater Systems
In heavy process and energy industries, high-performance offset butterfly valves and control butterfly valves undertake core fluid control tasks. In petrochemical projects, they are used for the transmission and isolation of crude oil, refined oil, and chemical corrosive media, withstanding high pressure and medium corrosion to ensure safe operation of chemical pipelines.
In power generation systems including thermal power and new energy power plants, butterfly valves control high-temperature cooling water, steam auxiliary pipelines, and flue gas desulfurization fluid systems, adapting to high-temperature and continuous operation working conditions. In municipal and industrial wastewater treatment projects, they handle sewage containing suspended solids and tiny impurities, realizing stable fluid shut-off and flow regulation, and effectively supporting environmental protection and water treatment process operation.
Key Advantages & Limitations
As a versatile industrial valve, butterfly valves have prominent comprehensive advantages, but they also have inherent scenario limitations. Clear understanding of their pros and cons is the key to accurate model selection and avoiding application failures.
Main Advantages
Compact Design, Fast Operation & Cost Benefits
First of all, butterfly valves have an extremely compact and lightweight structural design. Compared with gate valves and globe valves of the same caliber, they occupy far less installation space, reduce pipeline system load, and are especially suitable for limited-space industrial equipment layout. Secondly, the quarter-turn rotary structure enables ultra-fast opening and closing, completing full switching in a few seconds, which is conducive to emergency cutoff and rapid system adjustment.
In terms of cost performance, butterfly valves have simple structures, fewer accessories, and lower manufacturing and processing costs. Their installation and maintenance costs are also significantly lower than those of traditional valves. In addition, they feature low fluid resistance and small pressure loss during operation, helping enterprises reduce long-term system energy consumption and achieve energy-saving production. Diversified types also enable them to match multiple working conditions, with extremely high application flexibility.
Main Limitations
Pressure Limits, Seal Wear and Media Restrictions
Butterfly valves have obvious working condition limitations. First, ordinary soft-seal butterfly valves cannot adapt to ultra-high pressure and ultra-high temperature environments, and excessive pressure will cause seal deformation and leakage. Second, the valve seat and disc are in frequent contact and friction during operation; soft seals are prone to aging and wear after long-term use, affecting sealing performance and requiring regular replacement and maintenance.
In terms of media adaptability, ordinary butterfly valves are not suitable for high-viscosity fluids, granular media, and easily scaling fluids. Impurities will cause disc jamming and seal abrasion, leading to poor sealing and control failure. Meanwhile, compared with ball valves, the shut-off precision of ordinary butterfly valves has slight gaps, and they are not suitable for ultra-high precision micro-flow control scenarios.
Sedelon Butterfly Valve Solutions
Sedelon focuses on R&D, production and customization of high-quality industrial butterfly valves, targeting the pain points of unstable sealing, poor extreme condition adaptability, and difficult model matching in the market, providing standardized and personalized full-set valve solutions for global industrial projects.
Standard & High-Performance Models
Sedelon provides a complete range of standard butterfly valve products, including resilient seat concentric butterfly valves for general civil and industrial scenarios, covering conventional water, HVAC, and circulating water systems with zero leakage sealing and stable operation. For heavy-duty industrial working conditions, we supply double-offset and triple-offset high-performance hard-seal butterfly valves, which can withstand high temperature, high pressure, and weak corrosion media, fully adapting to petrochemical, power generation, and wastewater treatment continuous operation systems.
All standard products adopt high-precision casting technology and high-quality sealing materials, with strict factory pressure and sealing tests. They feature long service life, low failure rate, and excellent cost performance, meeting the universal configuration needs of most industrial pipeline systems.
Customized Industrial Valve Options
For special working conditions that standard valves cannot adapt to, Sedelon supports full-dimensional customized butterfly valve solutions. We can customize valve body materials (cast iron, carbon steel, stainless steel, alloy steel), sealing materials (high-temperature resistant, corrosion-resistant, wear-resistant special materials), and actuator types (manual, pneumatic, electric, hydraulic) according to medium characteristics, temperature, pressure, and installation environment.
In addition, we provide personalized optimization such as special caliber adjustment, anti-scaling and anti-wear treatment, explosion-proof and intelligent control functions, solving the matching problems of butterfly valves in extreme working conditions, special media, and intelligent pipeline systems, helping customers realize precise valve configuration and improve system operation stability.
Installation & Maintenance Best Practices
Correct installation and standardized maintenance are crucial to extending the service life of butterfly valves and maintaining long-term stable sealing and control performance. Improper operation will easily cause valve leakage, jamming, and control failure.
Correct Installation Guidelines
First, check the valve appearance, sealing surface, and opening and closing flexibility before installation to ensure no damage, impurity adhesion, or structural deformation. Clean pipeline internal impurities to avoid particle abrasion on the valve seat and disc during operation. Second, most butterfly valves are suitable for horizontal pipeline installation; vertical installation needs to confirm the valve model and avoid unstable operation caused by gravity impact.
During installation, ensure the valve axis is consistent with the pipeline centerline, avoid forced assembly and uneven flange stress, and prevent valve body deformation and seal damage. After installation, conduct pressure testing and sealing detection to verify no leakage at the connection and sealing position, and confirm the butterfly valve symbol marking on pipeline drawings matches the actual installed valve type for standardized system management., and debug the actuator to ensure flexible and accurate opening and closing action.
Routine Inspection & Maintenance
Daily routine inspection mainly includes checking valve opening and closing flexibility, pipeline medium leakage, actuator operation status, and connection bolt tightness. For frequently used valves, regularly clean the valve interior and sealing surface to remove accumulated scale and impurities and avoid seal wear and jamming.
Regularly inspect the aging degree of soft seals and replace worn and failed sealing parts in time to ensure zero leakage shut-off performance. For electric and pneumatic control butterfly valves, regularly check the power supply, air source, and signal response sensitivity, calibrate the control accuracy, and eliminate potential faults. Long-term unused valves need regular opening and closing operation to prevent structural rust and seal adhesion failure.
Butterfly Valve Selection Guide
Facing multiple types of butterfly valves, scientific selection according to actual working conditions can maximize valve performance and reduce operating costs. The following two-step selection method helps you quickly complete accurate model matching.
Confirm Primary Service Type
First, clarify the core service demand of the valve: shut-off service or flow control service. If the valve is only used for pipeline on-off isolation and maintenance cutoff in water supply, HVAC, and general circulating water systems, select cost-effective resilient seat concentric butterfly valves. If precise flow, pressure, and velocity regulation is required in industrial process systems, select intelligent butterfly control valves with actuators.
For heavy-duty industrial scenarios requiring both shut-off and anti-corrosion and high-temperature resistance, prioritize offset hard-seal butterfly valves to ensure long-term stable operation of the system.
Specify Operating Conditions
Confirm key operating parameters including pipeline caliber, working pressure, working temperature, medium type, and operation frequency. For normal-temperature, medium-low pressure, and clean media, soft-seal butterfly valves are sufficient. For high temperature, high pressure, corrosive media, and high-frequency continuous operation, high-performance triple offset butterfly valves must be adopted.
Meanwhile, match the actuator type according to operation requirements: manual actuators for low-frequency manual switching scenarios, and electric/pneumatic actuators for automatic control and remote adjustment industrial systems. Combined with installation space and cost budget, finally confirm the most suitable butterfly valve model.
Conclusion
Butterfly valves stand out in industrial fluid control systems with their compact structure, fast operation, diverse functions, and high cost performance, realizing dual core values of efficient shut-off and precise flow control. Different types of butterfly valves have clear application boundaries: soft-seal products adapt to general civil and industrial conventional scenarios, offset hard-seal products cope with harsh heavy-duty working conditions, and control butterfly valves meet process precision regulation demands.
Although butterfly valves have certain limitations in ultra-high pressure, ultra-high precision control and special media scenarios, they are still the most ideal fluid control equipment for most industrial pipelines after scientific selection and standardized installation and maintenance. With Sedelon’s standardized and customized butterfly valve solutions, enterprises can effectively optimize pipeline system operation efficiency, reduce failure rates and comprehensive costs, and ensure long-term stable and safe operation of fluid systems.
FAQs
Butterfly valves are widely used for fluid shut-off, isolation, and flow regulation. They serve general systems such as water supply, drainage, and HVAC, as well as heavy industries including petrochemical, power generation, and wastewater treatment, meeting both conventional on-off and precise control demands.
Soft-seal (resilient seat) butterfly valves adopt rubber seals with zero leakage, low cost, and flexible operation, suitable for normal-temperature and clean media. Hard-seal (offset) butterfly valves use all-metal sealing, featuring high temperature and pressure resistance and corrosion resistance, ideal for harsh industrial working conditions with slight leakage allowable.
Ordinary soft-seal butterfly valves cannot be used for high-temperature steam due to easy seal aging and failure. High-performance triple offset hard-seal butterfly valves are specially designed for high-temperature steam systems and can operate stably for a long time.
Yes. Butterfly valves have outstanding advantages in large-diameter pipeline applications. Their compact structure and light weight avoid the heavy weight and high installation cost of large-diameter gate valves and globe valves, making them the preferred valve type for large-caliber fluid systems.
Yes. Professional butterfly control valves equipped with electric or pneumatic positioning actuators can realize linear stepless adjustment of fluid flow and pressure, achieving precise fluid control for industrial process systems.
Under standard working conditions and standardized maintenance, soft-seal butterfly valves can work stably for 3–5 years, and high-performance hard-seal butterfly valves can reach 8–10 years. The actual service life depends on medium corrosivity, operating frequency, and daily maintenance quality.
Most standard butterfly valves are recommended for horizontal installation. Only small-caliber lightweight models support vertical installation. Vertical installation of large-diameter valves will cause uneven stress and affect sealing stability.
Common causes include aging and wear of soft seals, scaling and impurity abrasion on the sealing surface, loose connecting bolts, and actuator positioning deviation. Regular cleaning and seal replacement can effectively solve leakage problems.
They are not recommended for ultra-high pressure environments, high-viscosity easily-scaling media, and scenarios requiring ultra-high precision micro-flow control, which will easily cause jamming, seal failure and inaccurate regulation.
Manual actuators are suitable for low-frequency switching; pneumatic actuators are applicable for explosion-proof and quick-switch scenarios; electric actuators are the best choice for automatic control, remote regulation, and high-precision flow control systems.
Regularly check opening and closing flexibility and sealing performance, clean pipeline scale and impurities, inspect actuator operation status, tighten loose bolts, and replace aging sealing parts in time to avoid failure.
Yes. For extreme temperature/pressure, strong corrosion, special caliber, and intelligent control scenarios, standard valves cannot meet the demand. Sedelon customized butterfly valves can perfectly match personalized working conditions and improve system operation reliability.
