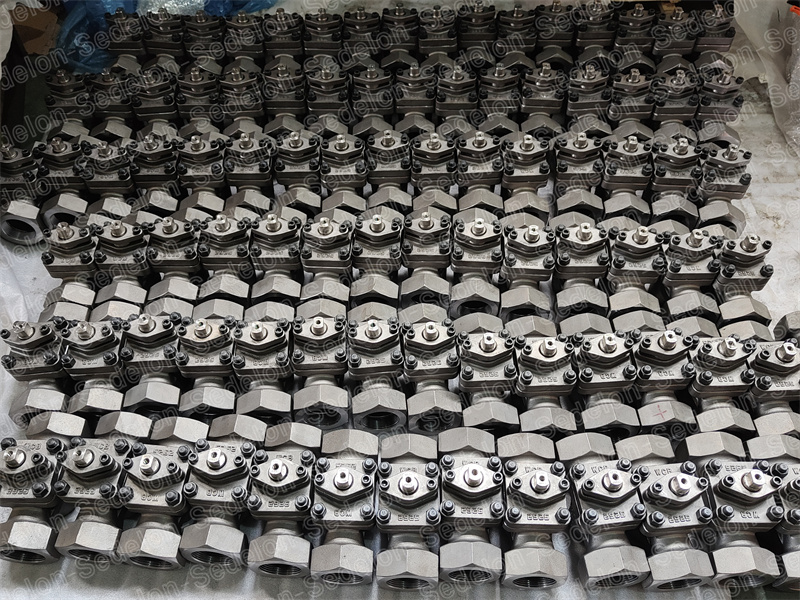

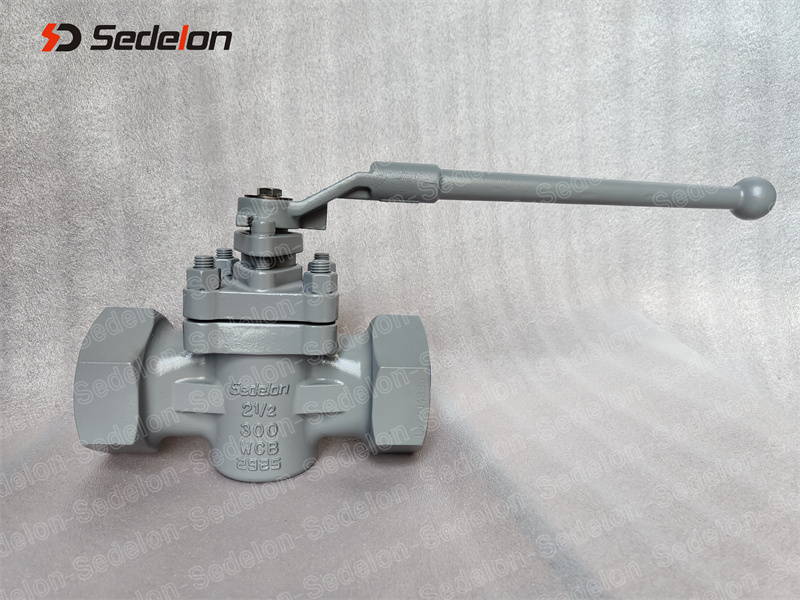

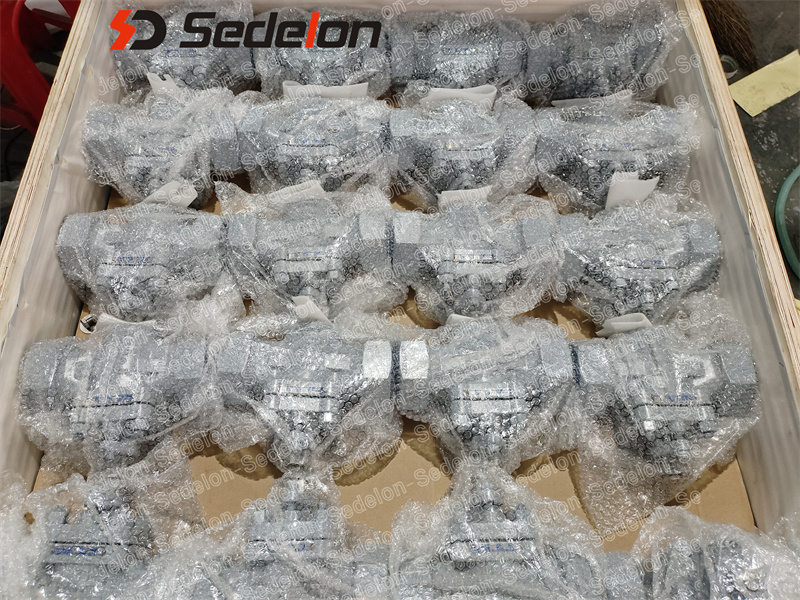

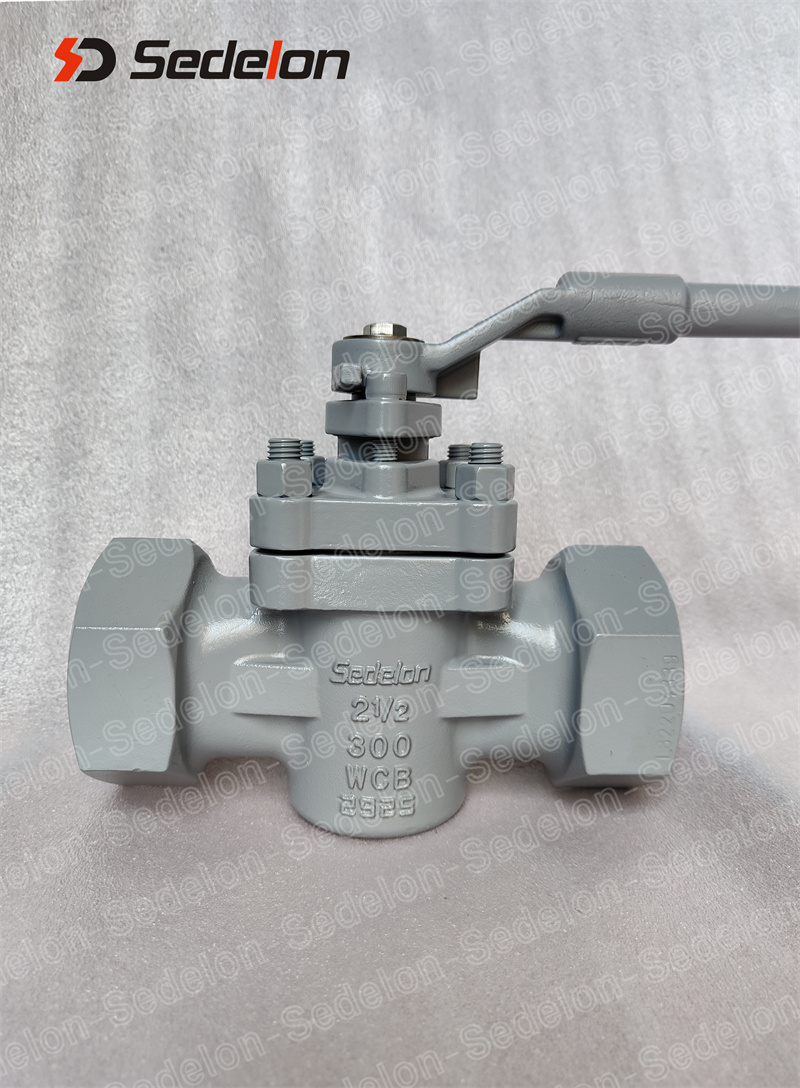

Sedelon received an order for over 1000 female threaded plug valves. The valve specifications are as follows:
Body: ASTM A216 WCB
Nominal Size: 2-1/2”
Nominal Class: 300LB
Connection ends: FNPT
Operation: Lever
Suitable Medium: Water, Oil, Gas etc.
Design and Manufacture: API 599
Face to Face Dimensions: ASME B16.10
End Dimensions: ASME B1.20.1
Test and inspection: API 598
Plug valve is a quick opening and closing through valve, which is used for frequent operation.
Plug valve has the following advantages:
1. Low fluid resistance
2. Good sealing performance
3. Easier to open and close
4. Simple structure, small volume, light weight, and easy to maintenance
5. The flow direction of the medium can be arbitrary without being limited by the installation direction
