Wafer vs Lug Butterfly Valves: Which Type Fits Your Pipeline Design?

Introduction

When designing industrial piping systems, choosing the right butterfly valve mounting style directly affects space efficiency, pressure performance, and maintenance flexibility. Wafer and lug butterfly valves are the two most common options, but they serve different pipeline needs. Understanding their structural differences helps you build safer, more efficient systems.

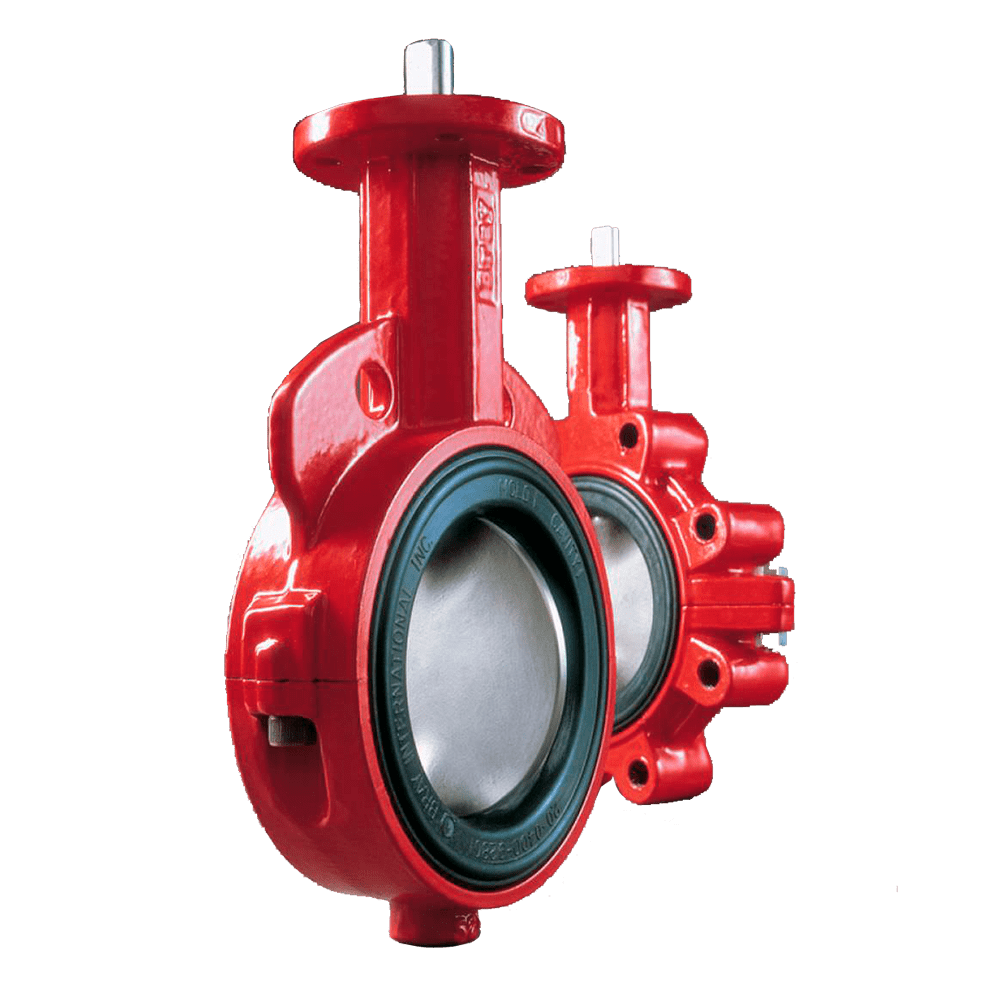

What Is a Wafer Butterfly Valve?

A wafer butterfly valve is designed to fit between two pipeline flanges and is held in place by through-bolts that compress the flanges together.

Key features include:

• Compact and lightweight structure
• Space-saving installation
• Cost-effective design
• Simple alignment between flanges

You commonly use wafer butterfly valves where space is limited and frequent pipeline disassembly is not required.

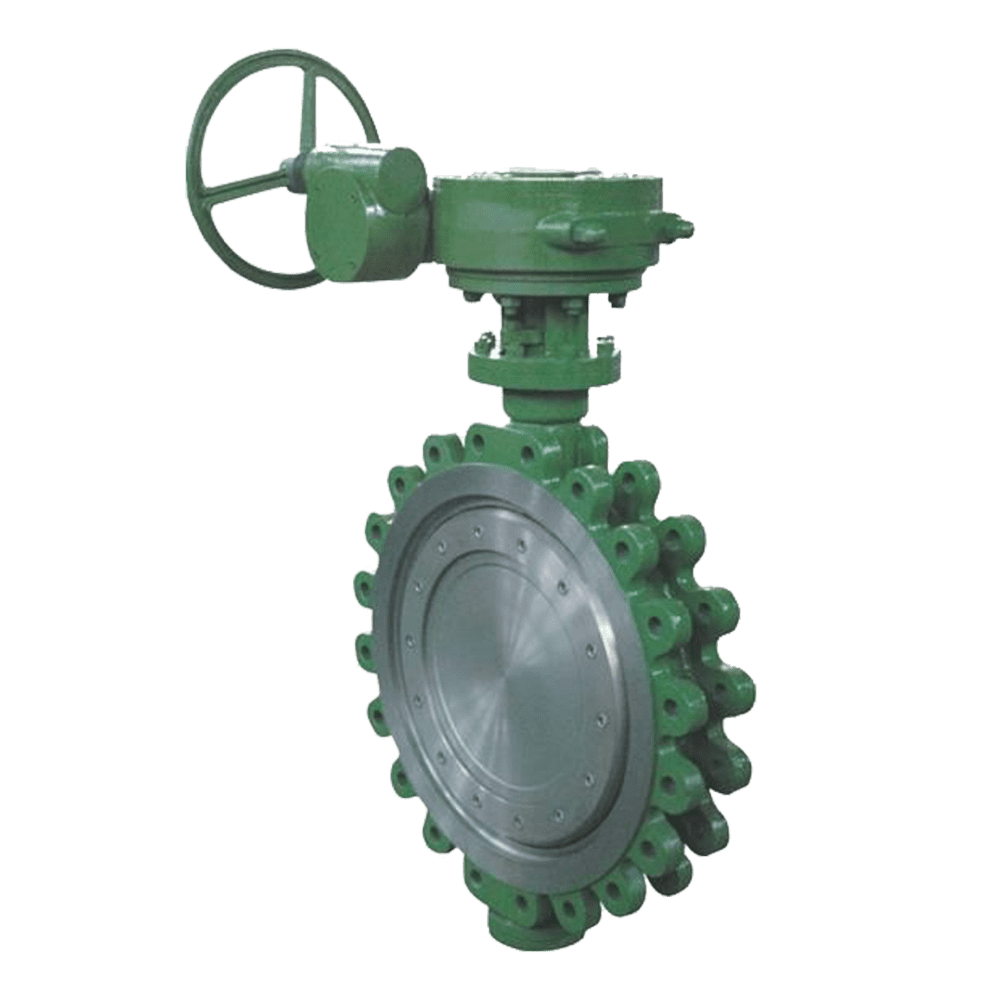

What Is a Lug Butterfly Valve?

A lug butterfly valve features threaded lugs around the valve body, allowing it to be bolted directly to each flange independently.

Main advantages include:

• Stronger mechanical support
• Ability to isolate one side of the pipeline
• Suitable for end-of-line service
• Easier maintenance without shutting down the full system

Lug-type valves are preferred in systems requiring section isolation and frequent servicing.

Key Differences Between Wafer and Lug Butterfly Valves

In summary: wafer valves prioritize compactness and cost, while lug valves prioritize strength and serviceability.

Applications of Wafer and Lug Butterfly Valves in Industry

Wafer Butterfly Valve Applications

You should choose wafer butterfly valves for:

• Compact pipeline layouts
• HVAC systems
• Water treatment lines
• Low to medium pressure services

They are ideal when space saving and budget efficiency are priorities.

Lug Butterfly Valve Applications

Lug butterfly valves perform best in:

• Industrial process pipelines
• Chemical and oil systems
• Pipelines requiring frequent isolation
• End-of-line installations

They offer greater operational flexibility and safety.

How to Choose the Right Butterfly Valve for Your Pipeline Design

Space and Installation Constraints

If your piping system is tight on space, wafer valves provide a slimmer profile.

Pressure and Temperature Requirements

Higher pressure systems benefit from lug valve structural strength.

Maintenance and Isolation Needs

Choose lug valves if you need to shut down sections independently.

End-of-Line Operation Requirements

Only lug valves are designed for safe end-of-line service.

Budget and Long-Term Costs

Wafer valves offer lower upfront cost, while lug valves reduce maintenance downtime.

Common Mistakes in Butterfly Valve Selection

• Choosing wafer valves for end-of-line service
• Ignoring pressure ratings
• Underestimating maintenance accessibility
• Selecting based on price alone
• Overlooking pipeline alignment requirements

Avoiding these mistakes improves system reliability.

FAQs

Neither is universally better. Wafer valves are best for compact systems, while lug valves are better for isolation and heavy-duty service.

Yes. Lug valves are specifically designed to handle end-of-line pressure safely.

Yes, wafer valves typically cost less due to simpler construction.

Lug butterfly valves allow section isolation, making maintenance faster and safer.

Conclusion

Choosing between wafer and lug butterfly valves depends on your pipeline layout, pressure demands, maintenance strategy, and long-term operational goals. Wafer valves offer compact, cost-effective solutions, while lug valves deliver strength and service flexibility for industrial systems.
