What You Need to Consider When Selecting Cryogenic Globe Valve

In the world of extreme industrial applications, few challenges are as daunting as handling cryogenic fluids. Materials like Liquefied Natural Gas (LNG), liquid nitrogen, liquid oxygen, and liquid hydrogen operate at temperatures as low as -254°C. At these sub-zero levels, standard industrial valves are not just inefficient—they are dangerous. A standard valve body can shatter like glass, and seals can become brittle enough to crumble under the slightest pressure. This is why the cryogenic globe valve is the preferred choice for engineers requiring precise throttling and reliable shut-off in deep-cold environments.

At Sedelon Valve, we specialize in the engineering and manufacturing of high-performance cryogenic solutions. Selecting the right valve involves more than just picking a size; it requires a deep dive into material science, thermal dynamics, and stringent safety protocols. This guide explores the critical factors you must consider to ensure your cryogenic system remains safe, efficient, and durable.

Material Integrity: The Battle Against Embrittlement

The most significant factor in cryogenic valve selection is the choice of metal. Most common carbon steels undergo a “ductile-to-brittle transition” when cooled. This means that while they are strong at room temperature, they lose all impact resistance at cryogenic temperatures. For safety, you must select materials that maintain their toughness even at absolute zero.

As illustrated in the table above, Austenitic stainless steels (the 300 series) are the gold standard for cryogenic globe valves. These metals possess a face-centered cubic (FCC) crystalline structure that does not become brittle as the temperature drops. At Sedelon Valve, we subject our castings to Charpy V-notch impact testing at -196°C to verify that the metal can absorb energy without fracturing. Furthermore, we consider the “coefficient of thermal expansion.” Because different components shrink at different rates, we precisely calculate tolerances so that the valve stem does not seize within the body when the system is cooled to operating temperature.

The Extended Bonnet: Managing Thermal Gradients

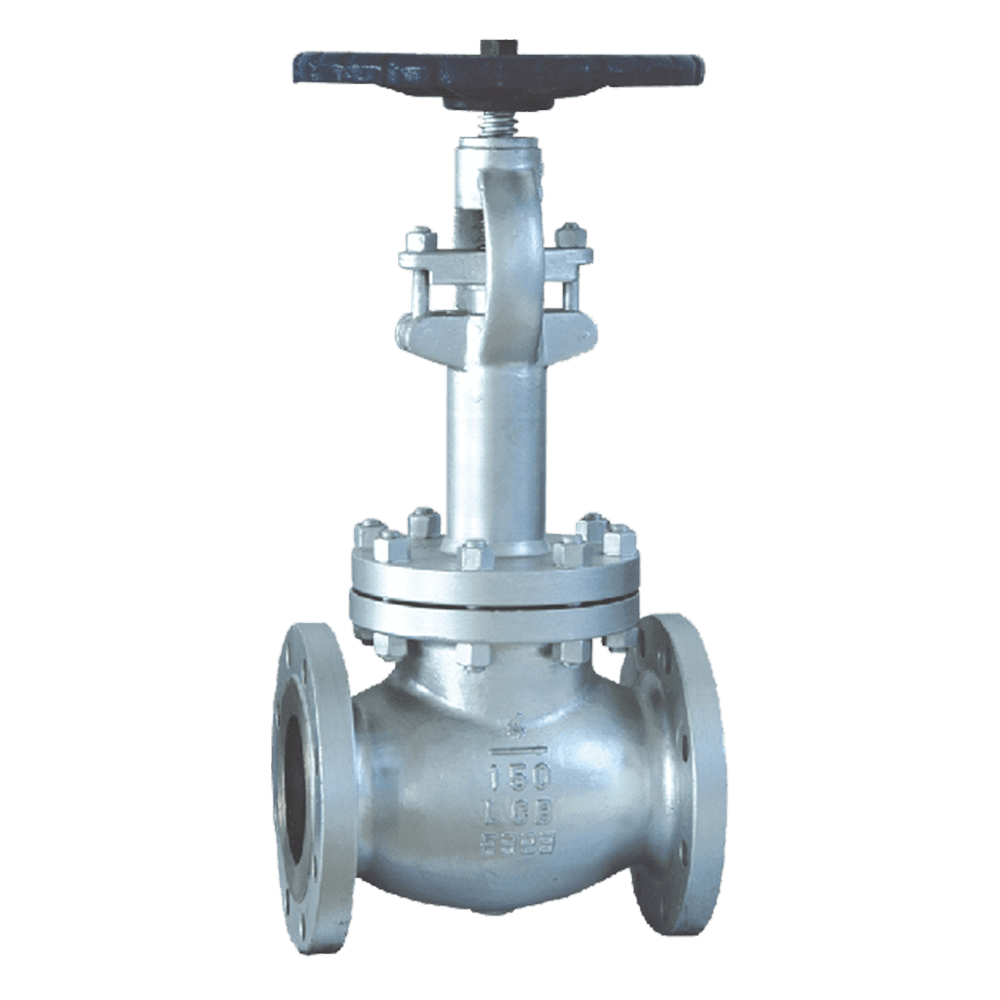

If you look at a cryogenic globe valve, the most striking feature is its long, thin neck. This is known as the extended bonnet. Its primary purpose is to protect the stem packing—the seal that prevents gas from leaking out of the top of the valve. If the packing is too close to the cold fluid, it will freeze, harden, and fail, leading to dangerous leaks.

The mechanics behind the extended bonnet are fascinating. Inside the long neck, the liquid cryogen begins to boil into a gas. This gas column creates a “vapor space” with very low thermal conductivity. Essentially, the gas acts as a buffer, keeping the top of the bonnet at a temperature close to the ambient air (usually above 0°C), even while the bottom of the valve is at -162°C (the temperature of LNG). At Sedelon Valve, we design our bonnets according to BS 6364 standards, ensuring the length is sufficient to keep the stem packing flexible and the handwheel ice-free for the operator.

Sealing Technology: Achieving “Bubble-Tight” Performance

In cryogenic service, the molecules of gases like Helium and Hydrogen are incredibly small and can escape through the tiniest imperfections. Achieving a “zero-leak” or “bubble-tight” seal is a significant engineering feat. You must choose between soft seats and metal-to-metal seats based on your system’s pressure and purity requirements.

The data in the table highlights why PCTFE is the preferred choice for most cryogenic globe valves. Unlike standard PTFE (Teflon), which can “cold flow” or deform at low temperatures, PCTFE maintains its structural rigidity and provides a superior seal against gas molecules. However, for high-cycle applications where the valve is opened and closed frequently, Sedelon Valve utilizes metal seats with Stellite (a hard cobalt-chromium alloy) overlays. We use high-precision lapping machines to ensure the disc and seat are perfectly matched, often achieving leakage rates far below industry standards.

Cleaning and Oxygen Safety: The Non-Negotiables

If your cryogenic globe valve is destined for Liquid Oxygen (LOX) service, cleanliness is a matter of life and death. In an oxygen-rich environment, even a microscopic trace of oil, grease, or dust can act as a fuel. Friction during the valve’s operation can create a spark, leading to a catastrophic explosion.

To prevent this, valves must undergo a specialized cleaning process. At Sedelon Valve, we have a dedicated clean room where every component is ultrasonically cleaned and degreased. We use specialized cleaning agents that leave zero hydrocarbon residue. After cleaning, the valves are inspected under ultraviolet (black) light to ensure no contaminants remain. Finally, they are double-bagged in polyethylene to ensure they arrive at your job site in a “pristine” state. When selecting a supplier, always verify their adherence to ASTM G93 or similar oxygen-cleaning standards.

Testing Protocols: Proving Performance in the Cold

Standard valve testing at room temperature is insufficient for cryogenic service. A valve that holds pressure at 20°C may fail miserably at -196°C. You must ensure your valve has been subjected to rigorous cryogenic testing before it is installed in your system.

At Sedelon Valve, our testing facility is equipped with liquid nitrogen pits and advanced Helium mass spectrometers. Helium is used for testing because its molecules are the smallest among non-flammable gases; if a valve is “Helium-tight,” it will safely hold LNG or Liquid Nitrogen. We also perform “Fugitive Emission Testing” to ensure that no harmful greenhouse gases escape through the stem packing, helping your facility meet modern environmental ESG standards.

Actuation and Throttling Control

Globe valves are specifically designed for throttling—the precise regulation of flow. Because cryogenic processes often involve phase changes (liquid to gas), having fine-tuned control over the flow rate is essential for system stability.

When selecting your globe valve, consider the Flow Coefficient (Cv). This value tells you how much fluid can pass through the valve. For automated systems, you will need to pair the valve with a pneumatic or electric actuator. In cryogenics, the actuator must be mounted high above the frost line using the extended bonnet. Sedelon Valve provides customized mounting pads that are compatible with all major actuator brands, ensuring that your automated control loop is responsive and accurate even in sub-zero conditions.

Why Choose Sedelon Valve?

Navigating the complexities of cryogenic valve selection requires a partner with proven expertise and a commitment to quality. At Sedelon Valve, we integrate decades of experience with state-of-the-art manufacturing technology. Our cryogenic globe valves are trusted in LNG terminals, aerospace research, and industrial gas plants worldwide.

• Certified Quality: Our valves meet API 6D, ISO 15848, and BS 6364 standards.

• Advanced Casting: We use high-purity stainless steel to ensure no internal defects.

• Global Support: Our engineering team provides technical consultations to help you size and spec the right valve for your specific environment.

FAQs

Why is an extended bonnet necessary for cryogenic valves?

The extended bonnet moves the stem packing away from the extremely cold fluid. It creates a “vapor space” where boiling gas acts as an insulator, keeping the packing at near-ambient temperatures so it stays flexible and leak-free.

Can I use a standard stainless steel valve for liquid nitrogen?

No. While standard 304/316 stainless steel has good properties, a standard valve lacks the extended bonnet and specialized seals (PCTFE) needed for cryogenics. Without these, the valve will freeze shut, and the seals will leak immediately.

What is the benefit of Helium testing over air testing?

Helium molecules are much smaller than air (oxygen/nitrogen) molecules. A Helium leak test is far more sensitive and can detect microscopic pathways for gas to escape that a standard air test would miss, ensuring higher safety.

What is Oxygen cleaning, and why is it important?

Oxygen cleaning removes all hydrocarbons (oils/grease) from the valve. In the presence of liquid oxygen, these hydrocarbons can ignite due to friction or pressure changes, leading to an explosion. It is a vital safety requirement for LOX service.

How does a globe valve differ from a ball valve in cryogenics?

A globe valve is superior for throttling and flow regulation, whereas a ball valve is primarily for on/off service. Globe valves also offer easier maintenance of the seat and disc, which is often required in high-pressure cryogenic systems.

Conclusion

Selecting a cryogenic globe valve is a high-stakes decision that impacts the safety and efficiency of your entire facility. By focusing on material toughness, the engineering of the extended bonnet, and the precision of the sealing mechanism, you can eliminate the risks of embrittlement and leakage. Always insist on Helium leak testing and Oxygen-grade cleaning to ensure your project meets international safety benchmarks.

Selecting the right cryogenic globe valve requires matching ASTM A351 stainless steels with the specific sub-zero temperatures of your media. An extended bonnet is essential for protecting stem seals, while PCTFE soft seats ensure gas-tight performance. Rigorous Helium leak testing and Oxygen cleaning are mandatory for maximum system safety.
