Introduction
In fluid control systems, many users struggle with proper selection and upkeep of gate valves, leading to frequent failures and safety risks. Knowing what is a gate valve, identifying gate valve components with a clear gate valve diagram, and performing fast fixes with a gate valve repair kit all greatly improve reliability and lower costs. This document covers core concepts, classification, selection, maintenance and repair to support safe and stable operation.
What Is a Gate Valve?
A gate valve is a linear motion valve designed to control the flow of fluids by raising or lowering a gate (also known as a disc) within the valve body. To fully understand Gate Valves, it’s essential to start with the basics: what is a gate valve? Simply put, it is a flow control device that uses a movable gate to either allow full, unobstructed flow or complete shut-off, distinguishing it from valves designed for throttling. The gate’s movement is perpendicular to the direction of fluid flow: when fully open, the gate is completely lifted, allowing unobstructed flow with minimal pressure drop; when fully closed, the gate seats tightly against the valve’s internal seats, creating a leak-tight seal to block fluid flow entirely. A clear gate valve diagram would illustrate these core components and their interaction, showing how the gate, stem, and actuator work together to control flow. This on-off functionality is what distinguishes gate valves from other valve types, such as globe valves (which are suitable for throttling) or ball valves (which offer quarter-turn operation).
To further clarify what is a gate valve, it’s helpful to reference its core gate valve components, which work in tandem to ensure reliable operation. A standard gate valve’s anatomy includes the valve body (the outer casing that connects to the pipeline), the gate (the movable disc that controls flow), the valve stem (which transmits force to the gate), the bonnet (which seals the valve body to prevent leakage), the actuator (manual or automated device that moves the stem), and the seats (which form a tight seal with the gate when closed). A gate valve diagram would label each of these gate valve components clearly, making it easy to visualize how they function together to regulate fluid flow.
Understanding gate valve components is also critical for maintenance and repair, as wear or damage to any component can impact the valve’s performance. For example, a worn stem or damaged seat may lead to leaks, which can often be resolved with a gate valve repair kit rather than replacing the entire valve. A gate valve repair kit typically includes replacement parts for common wear items, such as seats, gaskets, stems, and O-rings, allowing for cost-effective repairs that extend the valve’s service life.
The core components of a gate valve include the valve body, gate (disc), valve stem, bonnet, actuator (manual or automated), and seats. The valve body houses the internal components and connects to the pipeline, while the gate is the movable element that controls flow. The valve stem transmits force from the actuator to the gate, and the bonnet seals the valve body to prevent fluid leakage. Seats are typically made of resilient or metal materials, depending on the application, and form a tight seal with the gate when closed.
One of the key advantages of gate valves is their low pressure drop when fully open, as the gate does not obstruct the flow path—making them ideal for large-volume, high-flow applications. They also offer bi-directional flow capability, meaning they can be installed in either direction without affecting performance. However, gate valves are not suitable for throttling, as partial opening can cause vibration, cavitation, and excessive wear on the gate and seats. Understanding this fundamental functionality is critical for selecting the right gate valve for your application.
Key Types & Differentiation of Gate Valves
Gate valves are available in a wide range of types, differentiated by their design, operation, material, and pressure class. Properly distinguishing between these types is essential for ensuring compatibility with your system’s requirements, including fluid type, pressure, temperature, and installation environment. Below is a detailed breakdown of the most common gate valve types and their key differences, summarized in the table below for quick reference:
| Gate Valve Type | Key Design & Operation Features | Ideal Applications |
| Rising Stem (OS&Y) | Stem rises when opened (visual status indication); threads outside valve body; easy to lubricate and maintain | Oil and gas pipelines, water treatment plants, industrial process systems |
| Non-Rising Stem (NRS) | Stationary stem; gate moves up/down inside valve body; no visual status indication; threads in contact with fluid | Underground pipelines,管沟s, equipment-dense areas (clean, non-corrosive fluids) |
| Wedge (Rigid/Flexible/Double) | Wedge-shaped gate; seats against inclined seats; flexible/double types resist seizing; rigid type requires precise machining | High-pressure/high-temperature applications, fluids with suspended solids (flexible/double); low-temperature non-corrosive fluids (rigid) |
| Parallel Slide | Flat, parallel gate; relies on external pressure for sealing; low pressure drop | Water distribution, HVAC systems, low-pressure/low-temperature applications |
| Knife Gate | Sharp, blade-like gate; cuts through viscous fluids/slurries; minimizes clogging | Wastewater treatment, mining, pulp and paper industries |
By Design & Operation
The primary way to differentiate gate valves is by their design and operational mechanism, which directly impacts their installation, maintenance, and performance. The most common design-based classifications are:
Rising Stem (OS&Y) Gate Valves: Also known as Outside Screw and Yoke (OS&Y) gate valves, these valves feature a stem that rises upward when the valve is opened and lowers when closed. The stem’s threads are located outside the valve body, preventing contact with the fluid and reducing the risk of corrosion or fouling. A key advantage of rising stem gate valves is that the position of the stem (extended or retracted) provides a visual indication of the valve’s status (open or closed), which is critical for safety and maintenance. They are easy to lubricate and maintain, making them ideal for applications where regular inspection is required, such as oil and gas pipelines, water treatment plants, and industrial process systems. However, they require more vertical installation space due to the rising stem, which can be a limitation in tight environments.
Non-Rising Stem (NRS) Gate Valves: In contrast, non-rising stem gate valves have a stem that does not move vertically; instead, the gate is raised and lowered by rotating the stem, which is threaded into the gate itself. The stem remains stationary, and the gate moves up and down within the valve body. These valves are ideal for applications with limited vertical space, such as underground pipelines,管沟s, or equipment-dense areas. However, they do not provide a visual indication of the valve’s status, requiring additional indicators or position sensors for verification. The stem’s threads are in contact with the fluid, making them more prone to corrosion in harsh environments, so they are best suited for clean, non-corrosive fluids.
Wedge Gate Valves: Wedge gate valves feature a gate with a wedge-shaped design that seats against the valve’s inclined seats. The wedge angle (typically 2°52′, 3°30′, or 5°) is chosen based on the fluid temperature—higher temperatures require larger angles to prevent the gate from seizing due to thermal expansion. Wedge gate valves are further divided into three sub-types:
Rigid Wedge: A one-piece wedge design that offers simplicity and reliability but requires precise machining to ensure a tight seal. They are prone to seizing in high-temperature applications or when exposed to thermal cycling, making them best suited for low-temperature, non-corrosive fluids.
Flexible Wedge: A one-piece wedge with a slight flexibility (often achieved by a slot cut into the gate), allowing it to adjust to minor misalignments or thermal expansion. This design reduces the risk of seizing and improves sealing performance, making it the most widely used wedge type for industrial applications.
Double Wedge: A two-piece wedge held together by a hinge or spring, which allows the wedge to self-align with the seats. They are ideal for high-pressure, high-temperature applications and fluids with suspended solids, as they are less prone to fouling and seizing.

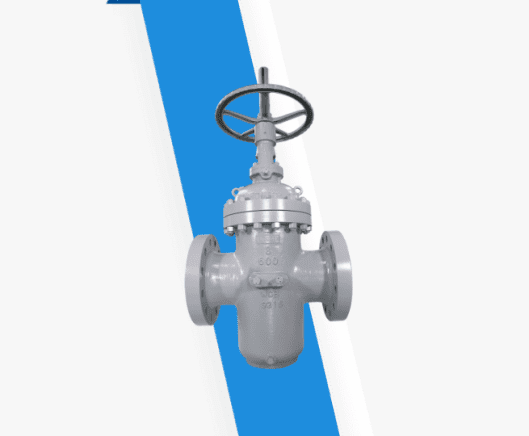

Parallel Slide Gate Valves: These valves feature a flat, parallel gate that seats against two parallel seats in the valve body. They rely on external pressure to create a tight seal, rather than the wedge’s inclined design. Parallel slide gate valves are ideal for low-pressure, low-temperature applications, such as water distribution and HVAC systems. They are also available in double-slide designs, which use two gates with a spring between them to ensure even seating and improved sealing performance.
5. Knife Gate Valves: A specialized type of gate valve with a sharp, blade-like gate designed to cut through thick, viscous fluids or slurries with suspended solids, such as sewage, sludge, or pulp. The sharp gate minimizes clogging and ensures smooth operation, making them ideal for wastewater treatment, mining, and pulp and paper industries.
By Material & Pressure Class
Gate valves are also differentiated by the materials used in their construction and their pressure class, which dictate their compatibility with different fluids, temperatures, and operating pressures.
Material Classification: The choice of material depends on the fluid type (corrosive, non-corrosive, abrasive), temperature, and pressure. Common materials include:
Cast Iron: Affordable and durable, cast iron gate valves are suitable for low-pressure, low-temperature applications with non-corrosive fluids, such as water distribution and HVAC systems. They are not recommended for corrosive or high-temperature fluids.
Carbon Steel: The most widely used material for gate valves, carbon steel offers excellent strength and durability, making it suitable for high-pressure, high-temperature applications in the oil and gas, chemical, and power generation industries. It is compatible with most non-corrosive fluids, including oil, gas, and water.
Stainless Steel: Resistant to corrosion, rust, and chemical attack, stainless steel gate valves are ideal for corrosive fluids, such as acids, alkalis, and saltwater. They are commonly used in chemical processing, food and beverage, and marine applications.
Alloy Steel: For extreme high-temperature and high-pressure applications, alloy steel gate valves are used, as they offer superior strength and resistance to thermal fatigue.
Brass/Copper: Used for low-pressure, low-temperature applications with potable water or non-corrosive fluids, brass and copper gate valves are affordable and easy to install, making them common in residential and light commercial plumbing systems.
Pressure Class Classification: Gate valves are rated by their pressure class, which indicates the maximum pressure they can withstand at a given temperature. Common pressure classes include:
ANSI Class 150/300: Low to medium pressure, suitable for residential, commercial, and light industrial applications.
ANSI Class 600/900: Medium to high pressure, used in industrial process systems, refineries, and power generation plants.
ANSI Class 1500/2500: High to ultra-high pressure, designed for critical applications such as oil and gas pipelines, offshore platforms, and high-pressure chemical reactors.
It is critical to select a gate valve with a pressure class that exceeds the maximum operating pressure of your system to ensure safety and reliability.
Gate Valve Selection Guide by Application
Selecting the right gate valve requires a thorough understanding of your application’s specific requirements, including fluid type, pressure, temperature, flow rate, installation environment, and maintenance needs. Below is a detailed guide to selecting gate valves for the most common industrial applications.
Oil & Gas Industry Applications
The oil and gas industry is one of the largest users of gate valves, relying on them for everything from exploration and production to refining and distribution. Gate valves in this industry must withstand high pressures, high temperatures, and corrosive fluids, making material and design selection critical.
Pipeline & Storage Terminal Use Cases
In oil and gas pipelines (both onshore and offshore), gate valves are used to control the flow of crude oil, natural gas, and refined products. Key requirements for these applications include:
Design: Rising stem (OS&Y) gate valves are preferred for pipelines, as their visual position indication allows for easy inspection and maintenance. Wedge gate valves (flexible or double wedge) are ideal for high-pressure pipeline applications, as they offer reliable sealing and resistance to seizing.
Material: Carbon steel or alloy steel gate valves are used for most pipeline applications, as they can withstand high pressures (up to ANSI Class 2500) and temperatures. For offshore pipelines or saltwater environments, stainless steel or corrosion-resistant alloys are recommended to prevent rust and corrosion.
Features: Gate valves for pipelines should be full-port to minimize pressure drop and allow for pigging (cleaning) of the pipeline. They should also be equipped with automated actuators (electric or pneumatic) for remote operation, as pipeline valves are often located in remote areas.
At storage terminals, gate valves are used to control the flow of fluids into and out of storage tanks. Non-rising stem gate valves are often used here due to limited vertical space, while wedge gate valves ensure tight shut-off to prevent leaks and spills.
Refinery & Process Plant Requirements
Refineries and petrochemical plants use gate valves in a variety of process lines, including distillation, cracking, and blending. These applications involve high temperatures (up to 1000°F), high pressures, and corrosive or abrasive fluids, requiring specialized gate valves:
Design: Flexible wedge gate valves are preferred for refinery applications, as their flexibility allows for thermal expansion and contraction, reducing the risk of seizing. Parallel slide gate valves are used for low-pressure process lines, such as cooling water systems.
Material: Alloy steel gate valves (e.g., chrome-molybdenum) are used for high-temperature, high-pressure process lines, while stainless steel gate valves are used for corrosive fluids (e.g., acids, solvents).

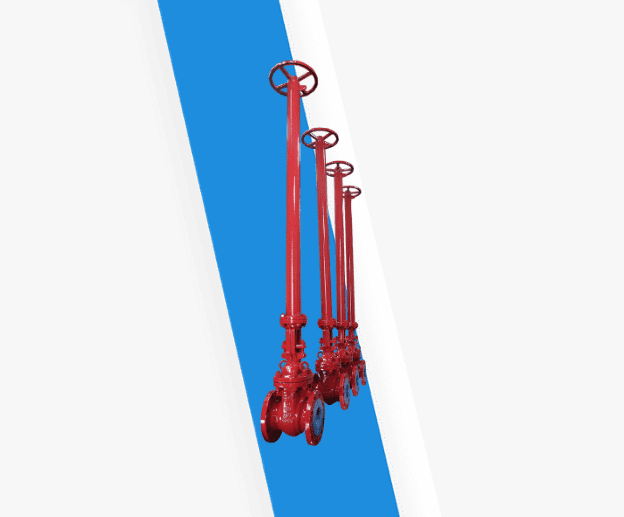

Features: Gate valves in refineries should be designed for easy maintenance, with removable bonnets and seats for quick repair or replacement. They may also be equipped with stem extensions to allow operation from ground level, as many valves are located in elevated areas.
Water Treatment & HVAC Systems
Gate valves are widely used in water treatment plants and HVAC systems, where they control the flow of water (potable, wastewater, or chilled/hot water) at low to medium pressures.
Municipal Water Distribution Networks
Municipal water distribution systems use gate valves to control the flow of potable water from treatment plants to homes, businesses, and public facilities. Key requirements include:
Design: Non-rising stem gate valves are commonly used in underground water mains, as they require minimal vertical space. Wedge gate valves (rigid or flexible) are preferred for their reliable shut-off, ensuring no water leakage.
Material: Cast iron or ductile iron gate valves are used for most water distribution applications, as they are affordable and durable. For potable water systems, lead-free brass or stainless steel valves are recommended to meet safety standards.
Features: Gate valves in water distribution networks should be designed for long service life (20+ years) with minimal maintenance. They may also be equipped with position indicators to allow operators to verify the valve’s status.
Commercial & Industrial HVAC Installations
In commercial and industrial HVAC systems, gate valves control the flow of chilled water, hot water, and steam to heating and cooling units. Key requirements include:
Design: Parallel slide gate valves are ideal for HVAC systems, as they offer low pressure drop and reliable shut-off. Non-rising stem gate valves are used in tight spaces, such as ceiling cavities or equipment rooms.
Material: Cast iron or carbon steel gate valves are used for hot water and steam lines, while brass or stainless steel valves are used for chilled water systems to prevent corrosion.
Features: Gate valves in HVAC systems should be easy to operate and maintain, with manual actuators for small valves and electric actuators for larger systems. They may also be equipped with isolation valves to allow for maintenance of individual HVAC units without shutting down the entire system.
Chemical & Power Generation Industries
Chemical and power generation industries require gate valves that can withstand extreme conditions, including corrosive fluids, high temperatures, and high pressures.
Corrosive Media Handling
Chemical processing plants handle a wide range of corrosive fluids, including acids, alkalis, solvents, and chemicals. Gate valves for these applications must be corrosion-resistant:
Design: Wedge gate valves are preferred for corrosive media, as they offer tight sealing and resistance to fouling. Knife gate valves are used for slurries or viscous corrosive fluids.
Material: Stainless stee or specialty alloys are used for corrosive applications, as they resist chemical attack and rust.
Features: Gate valves for corrosive media should have PTFE or graphite seats for improved sealing and resistance to chemical degradation. They may also be equipped with bellows seals to prevent fluid leakage along the stem.
High-Temperature & High-Pressure Service
Power generation plants use gate valves in boiler systems, steam lines, and turbine systems, where temperatures can exceed 1000°F and pressures can reach ANSI Class 2500:
Design: Flexible wedge gate valves or double wedge gate valves are used for high-temperature, high-pressure applications, as they can withstand thermal expansion and contraction without seizing. Rising stem gate valves are preferred for their visual position indication and easy maintenance.
Material: Alloy steel gate valves are used for steam lines and boiler systems, as they offer superior strength and resistance to thermal fatigue.
Features: Gate valves in power generation plants should be designed for long service life and minimal maintenance, with automated actuators for remote operation. They may also be equipped with heat shields to protect the actuator from high temperatures.
Maintenance & Repair of Gate Valves
Proper maintenance and timely repair are critical for extending the service life of gate valves, reducing downtime, and ensuring safe and reliable operation. Below are essential maintenance best practices and guidelines for using a gate valve repair kit.
Routine Maintenance Best Practices
Routine maintenance helps prevent premature failure and ensures that gate valves operate smoothly. Key best practices include:
Regular Inspection: Inspect gate valves at least annually for signs of leakage, corrosion, wear, or damage. Check the valve body, stem, bonnet, and actuator for cracks, rust, or fluid leaks. Verify that the gate moves smoothly and that the seats are intact.
Lubrication: Lubricate the valve stem and actuator regularly to reduce friction and prevent seizing. Use a lubricant compatible with the fluid type and operating temperature. Avoid over-lubrication, as excess lubricant can attract dirt and debris.
Operation Testing: Test the valve’s operation regularly by opening and closing it fully to ensure smooth movement and tight shut-off. For automated valves, test the actuator to ensure it functions properly and responds to control signals.
Cleaning: Clean the valve exterior and surrounding area to remove dirt, debris, and corrosion. For valves in corrosive or abrasive environments, clean the stem and seats periodically to prevent fouling and wear.
Record-Keeping: Maintain a maintenance log to track inspection dates, lubrication, repairs, and replacements. This helps identify patterns of wear or failure and ensures that maintenance is performed on schedule.
Using a Gate Valve Repair Kit
Many common gate valve issues can be resolved using a gate valve repair kit, which contains all the necessary parts to repair the valve without replacing the entire unit. A quality gate valve repair kit is tailored to match specific gate valve components, ensuring that replacement parts fit perfectly and restore the valve’s functionality. Below is a step-by-step guide to using a gate valve repair kit, which can be referenced alongside a gate valve diagram to ensure proper component identification and reassembly:
Safety First: Before beginning any repair, isolate the valve from the system by closing the upstream and downstream isolation valves. Relieve pressure from the system and drain any fluid from the valve to prevent leakage or injury. Wear appropriate personal protective equipment (PPE), such as gloves, goggles, and a face mask.
Disassemble the Valve: Remove the actuator (if applicable) and the bonnet bolts to access the internal components. Carefully lift the bonnet and remove the gate and stem from the valve body. Note the position of each component to ensure proper reassembly.
Inspect Components: Inspect the gate, stem, seats, and bonnet for wear, corrosion, or damage. Replace any worn or damaged parts with the components from the repair kit (e.g., new seats, stem, gate, or gaskets).
Clean and Lubricate: Clean the valve body and internal components with a mild solvent to remove dirt, debris, and old lubricant. Lubricate the stem and gate with the appropriate lubricant before reassembly.
Reassemble the Valve: Reinstall the gate and stem into the valve body, followed by the bonnet and bonnet bolts. Tighten the bolts evenly to ensure a tight seal. Reattach the actuator (if applicable) and test the valve’s operation.
Test the Valve: Reconnect the valve to the system, restore pressure, and test for leaks. Open and close the valve several times to ensure smooth operation and tight shut-off.
Note: For severe damage (e.g., cracked valve body or stem), it is recommended to replace the entire valve rather than attempting a repair. Always follow the manufacturer’s instructions when using a repair kit, as procedures may vary by valve type and model.
Sedelon Gate Valve Solutions for Industrial Applications
As a leading manufacturer of flow control solutions, Sedelon offers a comprehensive lineup of high-performance gate valves designed to meet the diverse needs of industrial applications. With decades of experience in the valve industry, Sedelon combines advanced technology, high-quality materials, and rigorous quality control to deliver reliable, durable, and cost-effective gate valve solutions.
Sedelon’s High-Performance Gate Valve Lineup
Sedelon’s gate valve lineup covers all major types and configurations of Gate Valves, ensuring compatibility with a wide range of applications, from water treatment to oil and gas and power generation. Each valve is engineered with high-quality gate valve components, and Sedelon provides detailed gate valve diagram resources to help customers understand component functionality, installation, and maintenance. Key products include:
Rising Stem (OS&Y) Gate Valves: Available in carbon steel, stainless steel, and alloy steel, Sedelon’s rising stem gate valves are designed for high-pressure, high-temperature applications. They feature full-port design for minimal pressure drop, flexible wedge for reliable sealing, and visual position indication for easy inspection.
Non-Rising Stem (NRS) Gate Valves: Ideal for tight spaces, Sedelon’s NRS gate valves are available in cast iron, carbon steel, and stainless steel. They feature corrosion-resistant stems and seats, ensuring long service life in harsh environments.
Wedge Gate Valves: Sedelon’s wedge gate valves are designed for reliable shut-off and resistance to seizing. They are available in a range of materials and pressure classes, making them suitable for oil and gas, chemical, and power generation applications.
Parallel Slide Gate Valves: Designed for low-pressure, low-temperature applications, Sedelon’s parallel slide gate valves offer low pressure drop and easy maintenance. They are ideal for water treatment and HVAC systems.
Knife Gate Valves: Sedelon’s knife gate valves feature a sharp, durable gate designed to cut through slurries and viscous fluids. They are available in stainless steel and alloy steel, making them suitable for wastewater treatment, mining, and pulp and paper industries.
All Sedelon gate valves are manufactured to international standards and undergo rigorous testing to ensure leak-tight performance, durability, and reliability. They are also customizable to meet specific application requirements, including custom materials, pressure classes, and actuator options.
Sedelon Support & Maintenance Services
Sedelon is committed to providing comprehensive support and maintenance services to help customers maximize the performance and service life of their gate valves. Key services include:
Technical Consultation: Sedelon’s team of experienced engineers provides personalized technical consultation to help customers select the right gate valve for their application. They offer guidance on material selection, design, and installation to ensure optimal performance.
Maintenance Training: Sedelon offers training programs for customers’ maintenance teams, covering routine maintenance, repair, and troubleshooting of Gate Valves. Training includes guidance on identifying gate valve components , proper use of a gate valve repair kit, and best practices for extending valve service life. This helps customers reduce downtime and maintenance costs by performing in-house repairs.
Repair Services: Sedelon provides professional repair services for gate valves, using genuine parts and advanced repair techniques. They also offer on-site repair services for critical applications, minimizing downtime.
Spare Parts Supply: Sedelon maintains a large inventory of spare parts for all gate valve models, ensuring quick delivery and minimal downtime. They also offer custom spare parts for specialized applications.
Conclusion
In conclusion, mastering gate valve basics, structure, diagram and repair methods is key to safe and efficient fluid control. Choosing professional gate valve products and supporting solutions can ensure long-term stable operation of your pipeline system.
FAQs
Q1: What is the main difference between a rising stem and non-rising stem gate valve?
A1: Rising stem (OS&Y) gate valves have a stem that rises upward when opened, providing a visual indication of the valve’s status. Their threads are outside the valve body, reducing corrosion risk. Non-rising stem gate valves have a stationary stem, with the gate moving up and down inside the valve body. They require less vertical space but do not provide visual status indication.
Q2: Can gate valves be used for throttling?
A2: No, gate valves are designed for full open or full close operation only. Partial opening can cause vibration, cavitation, and excessive wear on the gate and seats, leading to premature failure. For throttling applications, use globe valves or control valves instead.
Q3: What material is best for gate valves in corrosive applications?
A3: Stainless steel (316 or 316L) or specialty alloys are best for corrosive applications, as they resist chemical attack and rust. PTFE or graphite seats can also be used to improve sealing and corrosion resistance.
Q4: How often should gate valves be maintained?
A4: Gate valves should be inspected at least annually for non-critical applications. For critical applications (e.g., oil and gas pipelines, power generation), inspection and lubrication should be performed every 6 months. The frequency may increase for valves in harsh environments.
Q5: When should I use a gate valve repair kit versus replacing the entire valve?
A5: Use a gate valve repair kit for common issues such as worn seats, stems, or gaskets—common gate valve components that degrade over time. A gate valve diagram can help identify which components need replacement. Replace the entire valve if the valve body is cracked, the stem is severely corroded, or the gate is damaged beyond repair. Always follow the manufacturer’s recommendations.
Q6: What standards are Sedelon gate valves manufactured to?
A6: Sedelon gate valves are manufactured to international standards, including API 600, API 6D, and ANSI B16.34, ensuring quality and compatibility with global industrial applications.
Q7: What are the key gate valve components that require regular inspection?
A7: The key gate valve components to inspect regularly include the gate (disc), valve stem, seats, bonnet, and actuator. These components are prone to wear, corrosion, or damage over time—worn seats or stems can cause leaks, while a damaged gate may prevent proper shut-off. A gate valve diagram can help locate and identify each component during inspections.
Q8: Are gate valves suitable for high-pressure and high-temperature applications?
A8: Yes, gate valves can be designed for high-pressure and high-temperature applications, provided they are made of appropriate materials and feature a suitable design. Sedelon’s high-performance Gate Valves for these scenarios meet ANSI Class 1500/2500 standards and can withstand temperatures exceeding 1000°F.
Q9: How do I choose the right size of gate valve for my application?
A9: The size of a gate valve should match the diameter of the pipeline it will be installed in, to ensure minimal pressure drop and optimal flow control. Additionally, consider the flow rate, operating pressure, and fluid type—larger pipelines handling high flow rates require full-port gate valves, while smaller systems may use standard-port designs. Consulting a gate valve diagram or Sedelon’s technical team can help confirm the correct size. Q10: Can a gate valve repair kit be used for all types of gate valves?
A10: No, gate valve repair kit options are tailored to specific types and sizes of Gate Valves. For example, a repair kit for a rising stem gate valve will not be compatible with a knife gate valve, as their gate valve components differ. Always use a repair kit that matches the valve’s type, model, and size, and refer to the manufacturer’s guidelines or a gate valve diagram for compatibility.
