Standard-bonnet gate valves used on cryogenic LNG pipelines and buried underground pipelines can have the packing gland positioned too close to the cryogenic medium or pipeline wall. Heat transfer can cause the packing to freeze and crack, making this one of the most common failure modes of standard-bonnet cryogenic gate valves.
This series is designed and manufactured in accordance with BS 6364, covering NPS 2–48 and Class 150–900. It features low-temperature steel valve bodies, and every valve is pressure-tested in accordance with API 598.
The primary failure point of a standard-bonnet cryogenic gate valve is not the valve body, but the packing gland. With LNG at temperatures as low as -162°C, cold energy is conducted upward along the stem, causing conventional packing to become brittle and crack. Cryogenic medium can then leak through the stem area and immediately form a white frost layer upon contact with air. The actual leakage point can be extremely difficult to identify in the field, often requiring replacement of the entire valve.
The extended bonnet increases the heat-transfer path, allowing the temperature along the stem to gradually rise as it moves away from the cryogenic zone. As a result, the packing gland temperature can be maintained above 0°C, keeping the packing within a positive-temperature operating range and preventing direct exposure to extreme cold.
A drip tray is installed at the middle of the extended section to automatically drain condensate, preventing water from flowing down the stem and freezing into an ice buildup that could seize the stem.
The stem is equipped with three guide bushings to prevent lateral stem movement and uneven packing wear during valve operation. This extends packing service life to more than four times that of a standard-bonnet gate valve.
The stem nut is positioned on an above-ground operating platform, allowing operators to operate the handwheel without entering a cryogenic valve pit or the confined space beneath a pipe rack, reducing the risk of cold-related injuries.
The valve body and extended bonnet undergo cryogenic treatment to relieve residual casting stresses and reduce the risk of stress cracking under low-temperature service conditions.
Before shipment, every valve undergoes shell and sealing tests at -196°C, with test reports supplied with each valve.
Extension Length: Calculate the required extension length based on the medium temperature and installation depth to ensure that the packing gland remains above the material's minimum operating temperature. The packing must not be located within the cryogenic zone.
Cryogenic Materials: For service temperatures below -46°C, LF2/LF3 low-temperature steel must be selected. Conventional carbon steel can become brittle and fracture at low temperatures.
Packing Selection: Use reinforced flexible graphite or low-temperature PTFE for cryogenic service. Conventional nitrile rubber packing can become hard and brittle and lose its sealing performance under extreme cold.
Drainage Design: A drip tray should be provided at the middle of the extended section to automatically discharge condensate and prevent water from flowing back along the stem and freezing around the threads.
Q: Can the stem be extended to any length?
A: No. Excessive stem length can increase operating torque and cause stem deflection during operation. The appropriate extension length must be calculated based on the installation depth and operating-platform height. The stem cannot be extended indefinitely.
Q: Can an extended stem gate valve be buried directly in the ground?
A: The valve body can be installed underground, but the guide bushings, operating stem, and handwheel at the operating end should remain above ground for operation and maintenance. They should not be completely buried.
Q: Does the extended bonnet affect valve strength?
A: No. The extended bonnet is integrally cast rather than fabricated from multiple welded sections. Its strength is equivalent to that of a standard-bonnet valve body and the extension does not reduce the pressure-bearing capability of the valve.
At Petronas' MLNG Bintulu LNG complex in Malaysia, the LNG loading rack and cryogenic pump outlet pipelines handle liquid LNG at -162°C. The original gate valves used standard bonnets, with the packing glands positioned too close to the cryogenic medium. Cold energy conducted along the stems, causing the packing and bonnet bolts to freeze and crack. Leakage occurred approximately every 10 months on average, requiring the affected equipment to be taken out of service for thawing and maintenance, with each event affecting approximately 20,000 tonnes of LNG loading operations.
Flowork supplied 30 NPS 6–12, Class 300 extended-stem cryogenic gate valves featuring A350 LF2 low-temperature steel bodies, extended bonnets that maintain the packing gland temperature above 0°C, flexible graphite packing, Stellite 6 hardfaced sealing surfaces, and butt-weld ends. The valves were verified in accordance with BS 6364 cryogenic design requirements and subjected to -196°C cryogenic testing in accordance with API 598, with testing witnessed on site by Petronas TSR.
Since entering service in June 2022, the valves have operated continuously for three years with zero freeze-related cracking or leakage. Interruptions to LNG loading for valve maintenance have been reduced from twice per year to zero, while the packing replacement interval has increased from 10 months to more than four years.

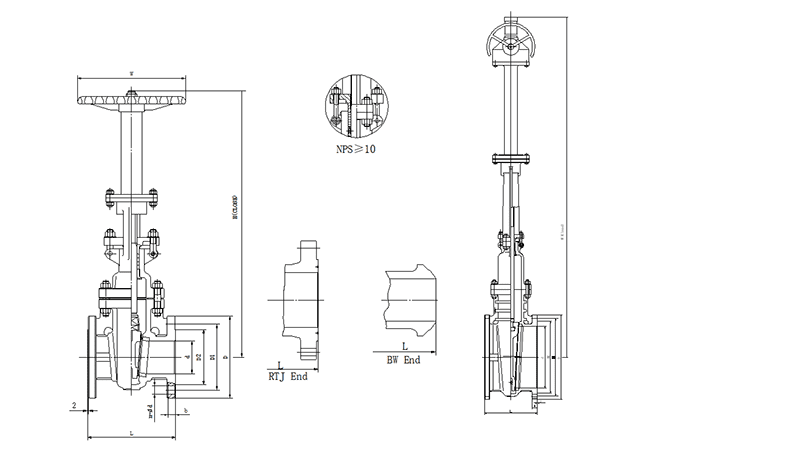

Class150 Extended stem gate valve
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 337 | 387 | 438 | 489 | 591 |
| L(RF) | mm | 178 | 190 | 203 | 229 | 254 | 267 | 292 | 330 | 356 | 381 | 406 | 432 | 457 | 508 |
| L(BW) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 572 | 610 | 660 | 711 | 813 |
| L(RTJ) | mm | 191 | 203 | 216 | 241 | 267 | 279 | 305 | 343 | 368 | 394 | 419 | 445 | 470 | 521 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 120.5 | 139.5 | 152.5 | 190.5 | 216 | 241.5 | 298.5 | 362 | 432 | 476 | 540 | 578 | 635 | 749.5 |
| D | mm | 152 | 178 | 190 | 229 | 254 | 279 | 343 | 406 | 483 | 533 | 597 | 635 | 699 | 813 |
| b | mm | 16 | 18 | 19 | 24 | 24 | 26 | 29 | 31 | 32 | 35 | 37 | 40 | 43 | 48 |
| n-Фd | mm | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 |
| H | mm | 400 | 435 | 515 | 595 | 725 | 780 | 975 | 1150 | 1380 | 1545 | 1733 | 1915 | 2122 | 2520 |
| H1 | mm | 820 | 1020 | 1200 | 1430 | 1580 | 1780 | 1990 | 2220 | 2600 | |||||
| W | mm | 200 | 200 | 250 | 280 | 280 | 300 | 350 | 400 | 450 | 500 | 500 | 500 | 600 | 600 |
| W1 | mm | 310 | 310 | 310 | 310 | 310 | 460 | 460 | 460 | 460 |

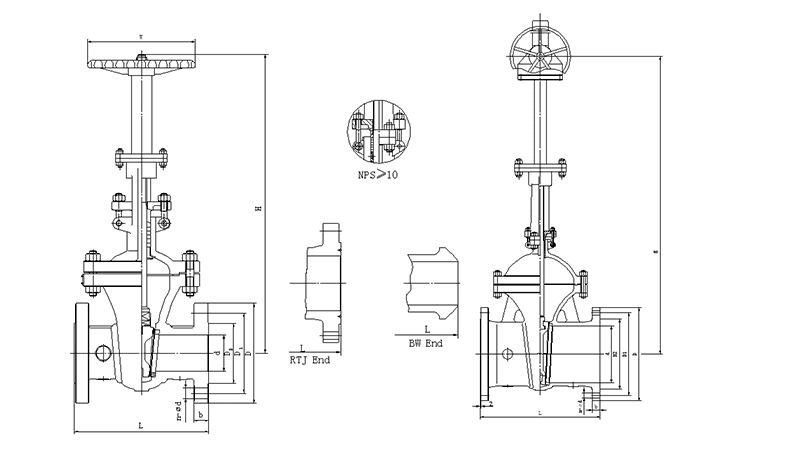

Class300 Extended stem gate valve
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 | 254 | 305 | 337 | 387 | 432 | 483 | 584 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L(BW) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 419 | 457 | 502 | 762 | 838 | 914 | 991 | 1143 |
| L(RTJ) | mm | 232 | 257 | 298 | 321 | 397 | 419 | 435 | 473 | 518 | 778 | 854 | 930 | 1010 | 1165 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 | 387.5 | 451 | 514.5 | 571.5 | 628.5 | 686 | 813 |
| D | mm | 165 | 190 | 210 | 254 | 279 | 318 | 381 | 445 | 521 | 584 | 648 | 711 | 775 | 914 |
| b | mm | 23 | 26 | 29 | 32 | 35 | 37 | 42 | 48 | 51 | 54 | 58 | 61 | 64 | 70 |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-29 | 16-32 | 20-32 | 20-35 | 24-35 | 24-35 | 24-41 |
| H | mm | 420 | 446 | 537 | 619 | 722 | 806 | 1000 | 1240 | 1425 | 1585 | 1790 | 1960 | 2158 | 2576 |
| H1 | mm | 650 | 750 | 835 | 1030 | 1280 | 1460 | 1620 | 1830 | 2000 | 2220 | 2620 | |||
| W | mm | 200 | 200 | 250 | 280 | 300 | 350 | 400 | 450 | 500 | 500 | 600 | 650 | 750 | 900 |
| W1 | mm | 310 | 310 | 310 | 310 | 310 | 310 | 460 | 460 | 460 | 460 | 600 |

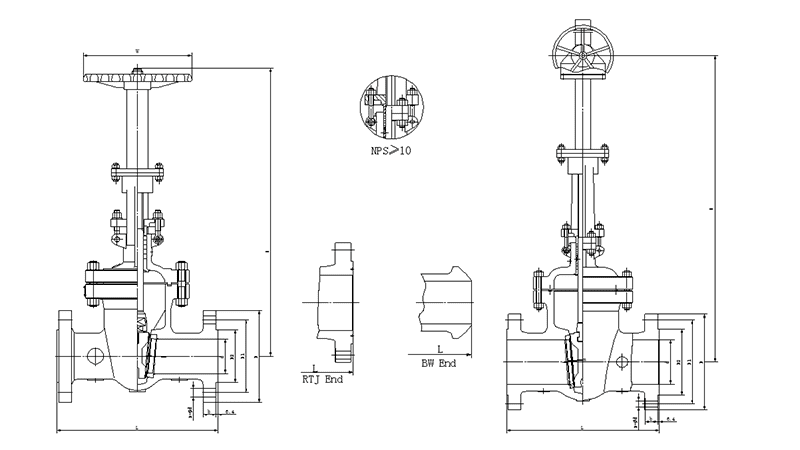

Class600 Extended stem gate valve
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 200 | 248 | 298 | 327 | 375 | 419 | 464 | 559 |
| L(RF) | mm | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L(BW) | mm | 292 | 330 | 356 | 432 | 508 | 559 | 660 | 787 | 838 | 889 | 991 | 1092 | 1194 | 1397 |
| L(RTJ) | mm | 295 | 333 | 359 | 435 | 511 | 562 | 664 | 791 | 841 | 892 | 994 | 1095 | 1200 | 1407 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 127 | 149 | 168.5 | 216 | 267 | 292 | 349 | 432 | 489 | 527 | 603 | 654 | 724 | 838 |
| D | mm | 165 | 190 | 210 | 273 | 330 | 356 | 419 | 508 | 559 | 603 | 686 | 743 | 813 | 940 |
| b | mm | 26 | 29 | 32 | 38 | 45 | 48 | 56 | 64 | 67 | 70 | 77 | 83 | 89 | 102 |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-25 | 8-29 | 12-29 | 12-32 | 16-35 | 20-35 | 20-38 | 20-41 | 20-44 | 24-44 | 24-52 |
| H | mm | 444 | 500 | 558 | 665 | 760 | 868 | 1073 | 1263 | 1600 | 1705 | 1835 | |||
| H1 | mm | 585 | 695 | 790 | 900 | 1110 | 1300 | 1650 | 1750 | 1900 | 2020 | 2172 | 2650 | ||
| W | mm | 200 | 250 | 280 | 300 | 350 | 450 | 500 | 650 | 700 | 900 | 900 | |||
| W1 | mm | 310 | 310 | 310 | 310 | 310 | 460 | 460 | 460 | 460 | 600 | 600 | 600 |

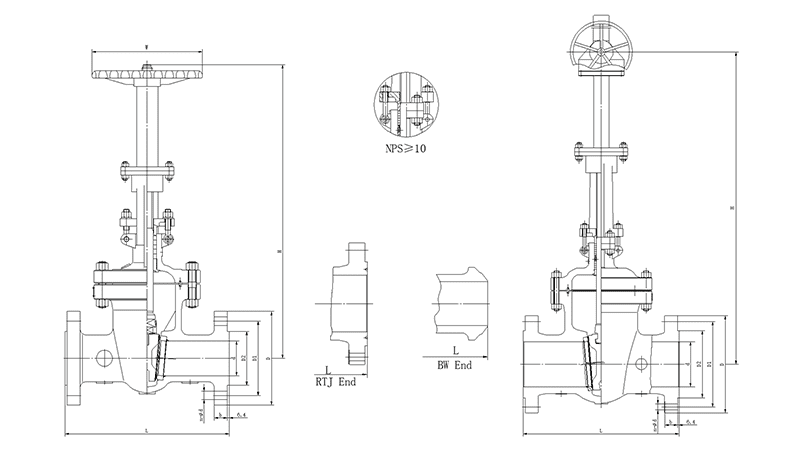

Class900 Extended stem gate valve
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 |
| d | mm | 47 | 57 | 73 | 98 | 121 | 146 | 190 | 234 | 282 | 311 | 354 | 400 | 444 | 533 |
| L(RF) | mm | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L(BW) | mm | 368 | 419 | 381 | 457 | 559 | 610 | 737 | 838 | 965 | 1029 | 1130 | 1219 | 1321 | 1549 |
| L(RTJ) | mm | 371 | 422 | 384 | 460 | 562 | 613 | 740 | 841 | 968 | 1039 | 1140 | 1232 | 1334 | 1568 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 |
| d2 | mm | 165 | 190.5 | 190.5 | 235 | 279.4 | 317.5 | 393.7 | 469.9 | 533.4 | 558.8 | 615.9 | 685.8 | 749.3 | 901.7 |
| D | mm | 216 | 244 | 241 | 292 | 349 | 381 | 470 | 545 | 610 | 640 | 705 | 785 | 855 | 1040 |
| b | mm | 38.5 | 41.5 | 38.5 | 44.5 | 51 | 56 | 64 | 70 | 79.5 | 86 | 89 | 102 | 108 | 140 |
| n-Фd | mm | 8-26 | 8-29 | 8-26 | 8-32 | 8-35 | 12-32 | 12-39 | 16-39 | 20-39 | 20-42 | 20-45 | 20-51 | 20-54 | 20-67 |
| H | mm | 500 | 550 | 610 | 702 | 850 | 980 | 1100 | 1320 | 1500 | 1900 | 2050 | |||
| H1 | mm | 660 | 750 | 900 | 1060 | 1140 | 1370 | 1560 | 1950 | 2100 | 2300 | 2450 | 2600 | ||
| W | mm | 280 | 280 | 300 | 350 | 400 | 500 | 650 | 700 | 900 | 900 | 900 | |||
| W1 | mm | 310 | 310 | 310 | 460 | 460 | 460 | 460 | 600 | 600 | 600 | 600 | 600 |
API Trim NO. Table
| No of internal parts | Seat ring or body | Gate、disc 、ball or body | Stem | No of internal parts | Seat ring or body | Gate、disc 、ball or body | Stem | |
| 01 | 13Cr | 13Cr | 13Cr | 31 | STELLITE | 321SS | 321SS | |
| 02 | 304SS | 304SS | 304SS | 32 | STELLITE | STELLITE | 321SS | |
| 03 | 310SS | 310SS | 310SS | 33 | 347SS | 347SS | 347SS | |
| 04 | HARD 13Cr | HARD 13Cr | 13Cr | 34 | STELLITE | 347SS | 347SS | |
| 05 | STELLITE | STELLITE | 13Cr | 35 | NICKEL ALLOY | 13Cr | 13Cr | |
| 06 | Cu-Ni | 13Cr | 13Cr | 36 | A105/PTFE | A105+ENP | A105+ENP | |
| 07 | 13Cr | HARD 13Cr | 13Cr | 37 | A105/PTFE | WCB+ENP | A105+ENP | |
| 08 | STELLITE | 13Cr | 13Cr | 38 | 13Cr/PTFE | 13Cr | 13Cr | |
| 09 | Cu-Ni | Cu-Ni | Cu-Ni | 39 | 304SS/PTFE | 304SS | 304SS | |
| 10 | 316SS | 316SS | 316SS | 40 | 316SS/PTFE | 316SS | 316SS | |
| 11 | Cu-Ni | STELLITE | Cu-Ni | 41 | A105/RPTFE | A105+ENP | A105+ENP | |
| 12 | STELLITE | 316SS | 316SS | 42 | A105/RPTFE | WCB+ENP | A105+ENP | |
| 13 | ALLOY 20 | ALLOY 20 | ALLOY 20 | 43 | 13Cr/RPTFE | 13Cr | 13Cr | |
| 14 | STELLITE | ALLOY 20 | ALLOY 20 | 44 | 304SS/RPTFE | 304SS | 304SS | |
| 15 | STELLITE | STELLITE | 304SS | 45 | 316SS/RPTFE | 316SS | 316SS | |
| 16 | STELLITE | STELLITE | 316SS | 46 | A105/NYLON | A105+ENP | A105+ENP | |
| 17 | STELLITE | STELLITE | 347SS | 47 | A105/NYLON | WCB+ENP | A105+ENP | |
| 18 | STELLITE | STELLITE | ALLOY 20 | 48 | A105/NYLON | 304SS | 304SS | |
| 19 | MONEL | MONEL | MONEL | 49 | A105/NYLON | 316SS | 316SS | |
| 20 | BRONZE | BRONZE | 13Cr | 50 | 13Cr/NYLON | 13Cr | 13Cr | |
| 21 | HASTELLOY B | HASTELLOY B | HASTELLOY B | 51 | 304SS/NYLON | 304SS | 304SS | |
| 22 | HASTELLOY C | HASTELLOY C | 52 | 316SS/NYLON | 316SS | 316SS | ||
| 23 | STELLITE | 304SS | 304SS | 53 | A105/PEEK | A105+ENP | A105+ENP | |
| 24 | 304LSS | 304LSS | 304LSS | 54 | A105/PEEK | WCB+ENP | A105+ENP | |
| 25 | STELLITE | 304LSS | 304LSS | 55 | 13Cr/PEEK | 13Cr | 13Cr | |
| 26 | STELLITE | STELLITE | 304LSS | 56 | 304SS/PEEK | 304SS | 304SS | |
| 27 | 316LSS | 316LSS | 316LSS | 57 | 316SS/PEEK | 316SS | 316SS | |
| 28 | STELLITE | 316LSS | 316LSS | |||||
| 29 | STELLITE | STELLITE | 316LSS | |||||
| 30 | 321SS | 321SS | 321SS | |||||
Note:please indicate it directly in the order for the internal part’smaterial uncovered in the table
