Short answer: A gear operated ball valve uses a worm-gear actuator to multiply hand torque by 20–60 times, making it the only practical manual option for large-bore (DN50+) and high-pressure (Class 300+) pipelines where a lever handle would require unsafe force. For oil & gas, petrochemical, and power generation projects, gear actuation delivers precise quarter-turn control, reduced operator fatigue, and compliance with API 6D and API 607 standards—all while keeping total installed cost below electric or pneumatic actuators.
Key Takeaways
- Gear operators multiply torque 20–60×, enabling safe manual operation of large-bore ball valves up to DN1200.
- Safety advantage: Eliminates the risk of lever-handle back-strike injuries on high-pressure lines.
- Cost-effective: 40–70% cheaper than motorized actuators for infrequently cycled isolation valves.
- Standards coverage: Fully compatible with API 6D, API 607 fire-safe, ISO 15848 fugitive emission, and ASME B16.34.
- Material range: Available in WCB, CF8M, Duplex, Hastelloy, and bronze for corrosive service.
What Is a Gear Operated Ball Valve?

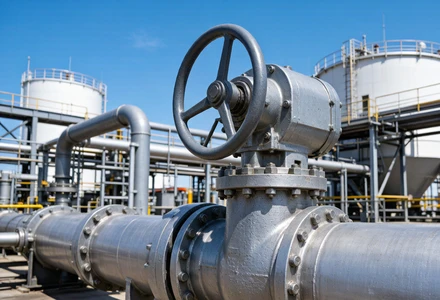

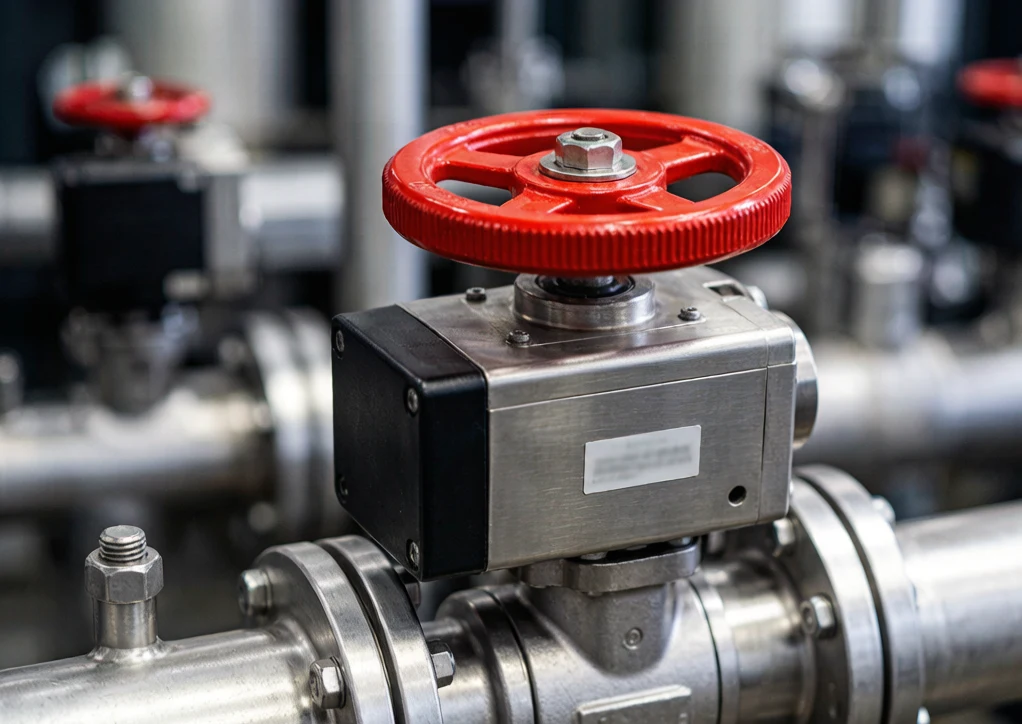

A gear operated ball valve combines a standard industrial ball valve—floating or trunnion mounted—with a worm-gear actuator (also called a gearbox or gear operator) bolted to the valve stem. When an operator turns the handwheel, the worm gear converts rotary motion into high-torque output that rotates the ball 90 degrees to open or close the flow path.
The worm-gear mechanism provides two critical advantages over direct lever operation: mechanical advantage (torque multiplication typically between 20:1 and 60:1 depending on gear ratio) and self-locking (the worm gear prevents the ball from drifting open or closed under line pressure). These properties make gear actuation the default choice for any trunnion mounted ball valve larger than NPS 2 (DN50) operating above Class 150.
Worm-gear operators are available in multiple configurations: bevel gear (for smaller valves requiring modest torque boost), worm gear (the most common for large-bore service), and helical-bevel hybrid designs for extreme pressure classes. The choice depends on valve size, pressure rating, and required cycle frequency.
Why Large-Bore & High-Pressure Lines Demand Gear Actuation
The Torque Problem with Lever Handles on Large Valves
On a small floating ball valve (NPS ½–2, Class 150), a 10-inch lever handle generates sufficient torque to overcome seat friction and hydrostatic force with comfortable hand effort. But scale changes the physics dramatically:
| Valve Size (NPS) | Typical Breakaway Torque (Class 150) | Lever Handle Force Required | Practical? |
|---|---|---|---|
| NPS 2 (DN50) | 30–50 N·m | ~15 kg (33 lb) at 12″ lever | Marginal |
| NPS 6 (DN150) | 150–300 N·m | ~75 kg (165 lb) at 16″ lever | No |
| NPS 12 (DN300) | 600–1,200 N·m | ~250+ kg (550+ lb) | Impossible |
| NPS 24+ (DN600+) | 2,000–6,000+ N·m | 500+ kg (1,100+ lb) | Impossible |
Beyond NPS 4 (DN100), a lever handle becomes a safety hazard. Operators cannot reliably apply the required force, and if the handle slips under load, the recoil can cause serious injury. On a high-pressure ball valve (Class 600+), breakaway torque increases further due to higher seat loading and line pressure acting on the ball surface area.
How a Worm-Gear Actuator Solves It
A worm-gear operator with a 40:1 ratio reduces the handwheel effort on a NPS 12 valve from 250 kg down to roughly 6 kg—a force any adult operator can apply comfortably and repeatedly. The trade-off is rotational travel: instead of one 90-degree lever sweep, the operator turns the handwheel 15–40 full revolutions (gear ratio × 90° ÷ 360°). For isolation valves that cycle infrequently (monthly or less), this extra time is negligible compared to the safety and reliability gains.
6 Key Benefits of Gear Operated Ball Valves for Industrial Pipelines
| Benefit | Why It Matters for Your Project |
|---|---|
| 1. Safe Manual Operation | Eliminates back-strike injury risk. Handwheel force stays under 10 kg even on DN1200 valves. Self-locking design prevents accidental opening under vibration or pressure surge. |
| 2. Precise Throttling Control | Multiple handwheel revolutions allow fine-positioning of the ball for partial-flow regulation (where permitted by valve design). Far more controllable than a single-lever snap action. |
| 3. Lower Installed Cost vs. Actuators | A worm-gear operator costs 40–70% less than an electric or pneumatic actuator. No power supply, control wiring, or instrument air needed. Ideal for remote or brownfield sites where utilities are limited. |
| 4. Field-Retrofittable | Gear operators bolt onto existing valve stems without disassembly. Upgrade a lever-operated valve to gear operation during a shutdown without replacing the valve body. |
| 5. Extreme Environment Tolerance | No electronics to fail in heat, cold, humidity, or explosive atmospheres (ATEX/IECEx compliant housings available). Operates reliably from −50°C to +200°C ambient. |
| 6. Compatibility with Automation Later | Most worm-gear housings accept bolt-on electric or pneumatic actuator kits. Start manual today, automate tomorrow without valve replacement—a key advantage for phased project budgets. |
These benefits explain why gear operated ball valves dominate large-bore isolation service across upstream oil & gas transmission, refinery process units, LNG terminals, and power plant cooling-water systems. For a large-bore ball valve project, specifying a gear operator from day one avoids costly field modifications and ensures OSHA-compliant ergonomics.
Sedelon’s Gear-Compatible Ball Valve Range
Sedelon has manufactured industrial valves since 1998 from our Wenzhou, China facility—the heart of China’s valve manufacturing cluster. Our ex-stock inventory covers the full spectrum of gear-compatible ball valves, ready for immediate dispatch worldwide:
- Trunnion Mounted Ball Valve — Our flagship for large-bore, high-pressure service. Sizes 2″–48″ (DN50–DN1200), Class 150–2500. Trunnion design anchors the ball at both ends, eliminating side-load on stem seals under high differential pressure. The preferred choice for main-line isolation where gear operation is mandatory.
- API 6D Ball Valve — Designed and tested per API 6D / ASME B16.34 for pipeline service. Full material traceability, MTRs included. Available with RF, RTJ, BW, and SW end connections.
- Forged Steel Ball Valves — Forged-body construction for Class 800–2500 applications. Sizes ½″–2″ (DN15–DN50). Compact, lightweight, ideal for high-pressure manifold and wellhead service where space is limited but gear actuation is still specified.
- Lever Operated Ball Valve — For smaller sizes (up to NPS 4, Class 300) where lever operation remains ergonomic. Compare lever vs. gear specs side-by-side to confirm which fits your application.
All Sedelon ball valves ship with machined mounting pads (ISO 5211 compliant) pre-drilled for direct gear-operator bolting. We supply matching worm-gear operators from reputable brands—or you can specify your preferred brand and we will verify interface compatibility before shipment.
Standards, Certifications & Operating Scope
When sourcing gear operated ball valves for regulated industries, certification compliance is non-negotiable. Sedelon’s quality management system holds API 6D, CE, ISO 9001, TS, and ISO 15848-1 certifications, with every valve individually tested per API 598 before dispatch.
| Parameter | Sedelon Specification |
|---|---|
| Size Range | ½″ – 48″ (DN15 – DN1200) |
| Pressure Rating | Class 150 – 2500 (up to 1000 bar / 14,500 psi) |
| Temperature Range | −196°C (cryogenic) to +500°C (+752°F) |
| Body Materials | WCB, LCB, A105, CF8, CF8M, F304/F316, F51/F53 (Duplex), Bronze C95800, Hastelloy, Alloy 20 |
| Fire-Safe Design | API 607 / API 6FA certified (secondary metal-to-metal sealing) |
| Fugitive Emission | ISO 15848-1:2006 certified (Class AH / BH available) |
| End Connections | Flanged (RF, RTJ), Butt-Weld (BW, SW), Threaded (NPT) |
Honest limitation: Gear operated ball valves are not suitable for applications requiring frequent cycling (more than once per shift) or fast emergency shut-off (ESD) under 10 seconds. For those scenarios, spring-return pneumatic or electric fail-safe actuators are required—and Sedelon supplies those too through our custom solution engineering service.
How to Select the Right Gear Operated Ball Valve
Selecting the correct specification requires balancing five variables: bore size, pressure class, material compatibility, end connection, and gear ratio. Use the checklist below to validate your spec against typical industry requirements:
Need a Tailored Gear Operated Ball Valve Quote?
Sedelon maintains ex-stock inventory of trunnion and floating ball valves in WCB, CF8M, and Duplex materials, with worm-gear operators ready to mount. Get a same-day quote with lead time and shipping cost included.
Frequently Asked Questions
1. What is a gear operated ball valve and how does it work?
A gear operated ball valve pairs a standard quarter-turn ball valve with a worm-gear actuator bolted to the valve stem. Turning the handwheel drives a worm shaft that engages a worm wheel connected to the stem. This arrangement multiplies input torque by 20–60 times while providing a self-locking mechanism that prevents the valve from drifting under line pressure. The result: safe, controlled operation of valves that would otherwise require excessive physical force.
2. When should I choose a gear operator over a lever handle?
Switch from lever to gear operation when any of these conditions apply: (a) valve size exceeds NPS 4 (DN100); (b) pressure class is Class 300 or higher; (c) calculated breakaway torque exceeds 80 N·m; (d) site safety rules mandate limited operator exertion; or (e) the valve cycles less than once per week (making the extra handwheel turns acceptable). For smaller low-pressure valves, a lever operated ball valve remains faster and more economical.
3. Can gear operated ball valves handle large-bore and high-pressure applications?
Yes—this is their primary design purpose. Gear operated ball valves are routinely used on pipelines up to NPS 48 (DN1200) at pressures up to Class 2500 (approximately 425 bar / 6,125 psi). The trunnion-mounted design is preferred for these extremes because it distributes hydraulic loads across two bearing points rather than relying solely on stem seals. Sedelon’s trunnion mounted ball valve range covers exactly this envelope with API 6D certification.
4. What pressure and size ranges do Sedelon gear operated ball valves cover?
Sedelon’s gear-compatible ball valve inventory spans ½″ to 48″ (DN15 to DN1200) in pressure classes from ANSI 150 to 2500. Our industrial ball valve catalog includes floating designs for smaller sizes and trunnion mounted for large-bore service. Most items are held in ex-stock for dispatch within 3–5 business days worldwide. Custom materials (Hastelloy, Inconel, titanium) are available with 4–8 week lead times.
5. Are gear operated ball valves fire-safe and suitable for oil & gas service?
Absolutely. Sedelon’s gear operated ball valves carry API 607 / API 6FA fire-safe certification, meaning the valve maintains pressure containment after exposure to a 1,538°F (837°C) flame for 30 minutes via secondary metal-to-metal seating. Combined with anti-blowout stem design, anti-static devices, and ISO 15848-1 fugitive emission certification, they meet the strictest requirements of upstream, midstream, and downstream oil & gas facilities globally.
6. How do I select the right gear operated ball valve for my pipeline?
Start with four parameters: (1) pipe size and schedule, (2) design pressure and temperature, (3) fluid composition (corrosivity, H2S content, solids), and (4) end-connection type (flanged, welded, threaded). Match these to the valve’s pressure-temperature rating per ASME B16.34, then select a gear ratio that limits handwheel effort to under 10 kg. If you share your P&ID with us, Sedelon engineers will prepare a complete valve data sheet—including gear operator model—at no charge.
7. What standards apply to gear operated ball valves?
The primary governing standards are API 6D (pipeline valve design and testing), ASME B16.34 (valve pressure-temperature ratings), API 607/API 6FA (fire-safe testing), API 598 (inspection and test), and ISO 15848-1 (fugitive emission classification). Gear operators themselves follow ISO 5211 for mounting pad dimensions and API 6DX for actuator mounting. If you’re evaluating different standard families, see our guide on API versus DIN valve standards.
Ready to Source Gear Operated Ball Valves?
With 27 years of valve manufacturing experience, Sedelon delivers API 6D-certified gear operated ball valves from ex-stock to any global destination. Contact our team for technical support, custom specifications, or bulk pricing.
Related Resources
In summary: A gear operated ball valve is not merely an accessory—it is a necessity for safe, reliable manual operation of large-bore and high-pressure isolation valves. By multiplying operator torque 20–60 times through a proven worm-gear mechanism, gear actuation eliminates ergonomic hazards, reduces maintenance burden, and keeps capital costs far below automated alternatives. Whether your project calls for a DN600 trunnion valve on a crude-oil transmission line or a Class 2500 forged steel valve on a high-pressure manifold, pairing the right ball valve with a correctly sized gear operator is a decision that pays dividends in safety, uptime, and lifecycle cost. Sedelon’s ex-stock inventory and 27-year track record in API 6D valve manufacturing mean you can specify with confidence and receive certified product within days—not months. For a tailored quotation or technical consultation, contact our engineering team today.
