The Future of Check Valves: Trends, Innovations & Technology

Introduction

Many industrial users struggle to fully grasp Check Valves and their proper use, leading to backflow risks and system failures. Clarifying what is a check valve and what does a check valve do, recognizing check valve symbol, and choosing proper check valve types can greatly enhance safety. This document explains core functions, identifies check valve one way valve applications, and covers classification, selection and trends for reliable operation.

What are Check Valves?

A check valve is an automatic fluid control device that operates externally and does not require manual operation. The purpose of this valve is to ensure the direct flow of the liquid while preventing reverse flow. For those who want to understand what a check valve is, its main function is to generate controlled flow of the liquid. Understanding the working principle of this valve is very important for evaluating its significance in the fluid system. The working principle of this valve entirely depends on the pressure difference between the inlet and the outlet of the device. If the inlet pressure exceeds a certain critical value (referred to as the opening and closing pressure), the moving parts (such as plates, cylinders, disks, etc.) will naturally open, allowing the fluid or gas to pass through. On the other hand, when the inlet pressure is lower than the outlet pressure or when the flow stops, the blocked part will automatically return to the closed position under the action of reverse pressure, gravity or spring, effectively preventing reverse flow. Technically, the symbol of a check valve shows an arrow indicating the direction of flow and a leaf or ball-shaped component of the closing part. This makes it easy to identify the check valve on fluid system drawings, especially when studying multiple check valves, which is very important.

The importance of check valves cannot be overestimated. For all experts in fluid operation systems, understanding the function of check valves is essential. If reverse flow is not prevented, it will not only cause destructive damage to important equipment such as pumps and compressors, but also lead to cross-contamination or changes in system pressure in water purification and pharmaceutical industries, failing to meet safety requirements. Its function is the same, whether it is called check valves, one-way check valves, or non-return valves. Understanding what check valves are is very important for the correct design of systems. In urban water supply networks, due to reverse flow, drinking water may be contaminated by wastewater. In oil and gas pipelines, there is a risk of pump damage or leakage, explosion. In short, check valves are the “one-way street signs” of fluid systems, ensuring order and protecting network integrity. Available in a wide range of check valve types, sizes, materials, and designs tailored to specific applications, their simplicity makes them reliable and cost-effective, but technology is elevating their capabilities far beyond basic backflow prevention. The check valve symbol is a quick visual reference that helps engineers and technicians identify these valves in schematics, ensuring proper integration into fluid systems.

A Complete Guide to Check Valve Types

The diversity of industrial applications has led to numerous check valve types, each with unique design features, advantages, and ideal use cases. For anyone seeking to understand what is a check valve and what does a check valve do, familiarizing yourself with these check valve types is essential, as each type is engineered to address specific operational needs and environmental conditions. From swing and lift check valves to ball, wafer, and specialty options, each check valve type serves a distinct purpose, and recognizing the check valve symbol for each can help in identifying them in system diagrams. Whether you need a check valve one way valve for residential plumbing or a high-pressure specialty valve for oil and gas, understanding the different check valve types ensures you select the right solution.

Swing Check Valves

Swing check valves are the most common type of check valve, featuring a hinged disc that pivots on a hinge pin inside the valve body. Forward flow pushes the disc open, allowing fluid or gas to pass through unimpeded, while reverse flow swings the disc back to its closed position, sealing the valve and preventing backflow. These valves are valued for their simplicity, low cost, and minimal pressure drop, making them ideal for large flow rates and low-to-moderate pressure applications such as water and wastewater systems, HVAC systems, and general industrial pipelines. A key consideration with swing check valves is their potential for water hammer—a sudden pressure surge caused by the abrupt slamming of the disc shut—which modern designs address with dashpot devices or spring assistance to control closure speed and reduce wear.

Lift Check Valves

Lift check valves feature a disc that moves vertically, guided by a stem or guide pins within the valve body. Forward flow lifts the disc off its seat, permitting flow, while reverse flow and gravity force the disc back down to seal the valve. Unlike swing check valves, lift check valves offer precise sealing, making them well-suited for high-pressure, high-temperature applications such as steam systems, power generation plants, and oil and gas pipelines. Spring-equipped lift check valves, often referred to as “silent check valves,” minimize disc slamming and water hammer by controlling the closure speed, though they have a higher pressure drop than swing check valves, prioritizing sealing performance over flow efficiency.

Ball Check Valves

Ball check valves use a spherical ball as the closure member, which seats against a conical seat to block backflow. Some models are spring-loaded to ensure a tight seal even at low pressures, while others rely solely on reverse flow pressure to push the ball into place. These valves are compact, simple, and cost-effective, making them ideal for small-scale, low-pressure applications involving viscous fluids or slurries, such as chemical processing, food and beverage production, and residential plumbing. Their minimal moving parts ensure high reliability, but they are not suitable for high-pressure or high-temperature environments, as the ball may wear or jam under extreme conditions.

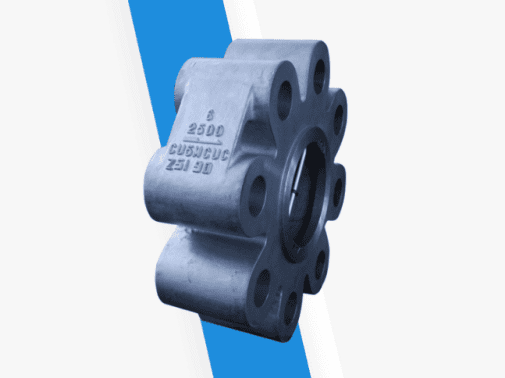

Wafer Check Valves

Wafer check valves are designed to be compact and lightweight, fitting between two flanges in a pipeline without requiring additional space or piping. They feature a thin, disc-shaped closure member that swings open with forward flow and closes with reverse flow. Their space-saving design makes them perfect for tight industrial environments, HVAC systems, and water treatment plants, where space is at a premium. Wafer check valves are available in both swing and lift designs, combining the space-saving benefits of their form factor with the performance characteristics of their respective valve types. They are often used in large-diameter pipelines where weight and space constraints are critical.

Specialty Check Valves

Beyond the four main check valve types, specialty check valves are engineered to address unique or extreme operating conditions that standard valves cannot handle. These include duckbill check valves, which are flexible and rubber-like, opening with forward flow and closing tightly with reverse flow—ideal for wastewater, marine, and irrigation applications where debris resistance is critical. Nozzle check valves feature a streamlined design to minimize pressure drop and prevent cavitation, making them suitable for high-velocity, high-pressure systems like steam turbines and gas pipelines. Stop-check valves combine the functions of a check valve and a globe valve, allowing manual shutoff in addition to automatic backflow prevention, making them ideal for critical applications that require both control and safety. Low-emission check valves are designed to minimize fugitive emissions, complying with standards like ISO 15848-1:2006, and are used in oil and gas, chemical, and environmental industries.

Current & Future Trends in Check Valve Technology

The check valve industry is evolving rapidly, driven by three key forces: the need to withstand harsher operating environments, the rise of smart industrial technologies, and demand for greater efficiency and sustainability. These trends are reshaping valve design, functionality, and performance, ensuring that modern check valves continue to fulfill their core purpose of preventing backflow while adapting to new industry challenges.

Material Innovations for Harsh Environments

Industries like oil and gas, chemical processing, and power generation operate in extreme conditions—high temperatures, pressures, corrosive fluids, and abrasive media—that degrade traditional materials like carbon steel. To address this, manufacturers are investing in advanced materials that offer superior durability, corrosion resistance, and longevity.

Corrosion-Resistant Alloys & Coatings

Corrosion is a major cause of check valve failure, especially in harsh industrial environments. High-performance corrosion-resistant alloys (CRAs) such as Hastelloy, Inconel, and duplex stainless steel are being widely used for their ability to withstand aggressive fluids, even at extreme temperatures and pressures. These alloys are ideal for offshore oil and gas platforms, chemical plants, and marine environments, where exposure to saltwater, acids, and other corrosive substances is common. Additionally, protective coatings—such as ceramic, PTFE, and thermal spray coatings—create a barrier between the valve components and the fluid, reducing wear and extending service life. Surface hardening treatments, such as 4mm+ weld overlay, further enhance component hardness and heat isolation, making valves more resilient in high-temperature applications.

Lightweight, High-Durability Composite Materials

Weight reduction is a critical priority in industries like aerospace, automotive, and offshore energy, where heavy equipment increases installation costs and operational inefficiencies. Composite materials—such as fiberglass-reinforced polymer (FRP), carbon fiber, and thermoplastics—offer a lightweight alternative to traditional metal valves while maintaining high strength and corrosion resistance. FRP check valves, for example, are replacing heavy metal valves in wastewater treatment plants, cutting installation costs and extending service life. These composites are also ideal for offshore wind turbines and marine vessels, where corrosion resistance and weight savings are essential.

Smart & IoT-Enabled Check Valve Solutions

Industry 4.0 and the Internet of Things (IoT) are transforming check valves from passive mechanical devices to active, connected components. Smart check valves integrate sensors, data analytics, and wireless communication to provide real-time performance insights, enabling predictive maintenance and reducing unplanned downtime—a critical advantage in industries where downtime is costly.

Real-Time Backflow Monitoring & Leak Detection

Traditional check valves offer no visibility into their performance; failures are often detected only after backflow or leaks have caused damage. Smart check valves address this by incorporating sensors that monitor flow direction, pressure, temperature, and valve position. This data is sent to a cloud-based platform, allowing operators to monitor valve performance remotely in real time. Alerts are triggered for abnormal conditions such as backflow, leaks, or unusual pressure fluctuations, enabling operators to take immediate action to prevent contamination, equipment damage, or safety hazards. This real-time monitoring is particularly valuable in water treatment plants, where backflow could contaminate drinking water, and in oil and gas pipelines, where leaks can lead to environmental damage and financial losses.

Predictive Maintenance & Health Monitoring

Predictive maintenance is one of the most significant benefits of smart check valves. By analyzing sensor data over time, manufacturers and operators can identify patterns that indicate potential failures—such as wear on the closure member, reduced sealing performance, or abnormal vibration. This allows maintenance to be scheduled proactively, rather than reactively, reducing unplanned downtime and extending valve service life. Some advanced smart valves even use machine learning algorithms to optimize performance, adapting to changes in flow rate or pressure to ensure optimal operation. Digital twins—virtual replicas of the valve—are also being used to simulate operating conditions, predict performance, and optimize maintenance schedules, further enhancing reliability and efficiency.

Efficiency & Low-Pressure Drop Design Advances

Energy efficiency is a top priority for industries worldwide, and check valves play a significant role in the energy consumption of fluid systems. Traditional check valves can cause significant pressure drop, forcing pumps to work harder and consume more energy. Recent design advances focus on minimizing pressure drop while maintaining reliable backflow prevention.

Reduced Cavitation & Water Hammer Prevention

Cavitation— the formation and collapse of bubbles in the fluid—and water hammer—sudden pressure surges caused by abrupt valve closure—are common issues that damage check valves and other system components. To address these problems, nozzle check valves feature a streamlined design that reduces turbulence and minimizes cavitation, making them ideal for high-velocity, high-pressure systems. Swing check valves are also being equipped with dashpot devices or spring assistance to control closure speed, reducing water hammer and wear on the valve and pipeline.

Precision Engineering for Minimal Flow Restriction

Advancements in 3D printing and computational fluid dynamics (CFD) have enabled the design of check valves with minimal flow restriction. 3D printing allows for the creation of complex, optimized flow paths that are impossible to achieve with traditional manufacturing methods, reducing pressure drop and improving flow efficiency. CFD simulations are used to test and refine valve designs, ensuring that they perform optimally under real-world operating conditions. These precision-engineered valves are particularly beneficial in industries like pharmaceuticals and food and beverage, where flow efficiency and product purity are critical, as well as in large-scale fluid systems, where reducing pressure drop can lead to significant energy savings.

Sedelon Innovations in Check Valve Design

As a leader in fluid control solutions, Sedelon is at the forefront of check valve innovation, combining advanced materials, smart technology, and precision engineering to meet the evolving needs of modern industries. The company’s commitment to quality and innovation is evident in its next-generation check valve lineup and its dedication to durability and reliability.

Sedelon’s Next-Gen Check Valve Lineup

Sedelon’s next-generation check valves are designed to address the most challenging industrial applications, with a focus on performance, efficiency, and sustainability. The lineup includes ISO 15848-1:2006 certified low-emission check valves, which minimize fugitive emissions and comply with strict environmental standards, making them ideal for oil and gas, chemical, and environmental industries. High-temperature check valves feature 4mm+ weld overlay internal components, enhancing hardness and heat isolation to extend service life in power generation and chemical processing applications. Smart check valve solutions integrate IoT technology, enabling real-time monitoring, leak detection, and predictive maintenance to reduce downtime and improve safety. Additionally, Sedelon offers lightweight composite material check valves, which are corrosion-resistant and cost-effective, making them suitable for offshore, marine, and portable fluid systems.

Sedelon’s Commitment to Durability & Reliability

Sedelon’s core mission is to deliver check valves that exceed customer expectations for durability and reliability. The company implements rigorous quality control processes throughout the manufacturing cycle, including material testing, API 598 pressure testing, and performance validation, to ensure that every valve meets or exceeds industry standards. Sedelon also prioritizes sustainability, developing valves that reduce energy consumption and emissions, aligning with global environmental goals. By combining advanced materials, precision engineering, and smart technology, Sedelon is committed to providing customers with check valves that deliver long-term performance and value.

Selecting the Right Check Valve for Your Application

Choosing the right check valve is critical for ensuring system performance, safety, and cost-effectiveness. With a wide range of check valve types and configurations available, it’s essential to consider key factors and avoid common pitfalls when making a selection.

Key Considerations for Selection

Several key factors should guide the selection of a check valve for your application. First, consider the fluid type: corrosive fluids require corrosion-resistant materials such as CRAs or composites, while viscous fluids or slurries need valves with debris-resistant designs like ball or duckbill check valves. Operating conditions—including pressure and temperature—are also critical: high-pressure and high-temperature applications require specialized valves like lift or nozzle check valves, while low-pressure applications may benefit from swing or ball check valves. Flow rate and pressure drop requirements should also be considered: high flow rates require valves with low pressure drop, such as swing or wafer check valves, while precision applications may prioritize tight shutoff, making lift check valves a better choice. Space and installation constraints are another factor: compact wafer check valves are ideal for tight spaces, while large-diameter pipelines may require swing check valves. Finally, ensure that the valve complies with relevant industry standards, such as ISO 15848-1 or API, to meet regulatory requirements.

Common Pitfalls & How to Avoid Them

When selecting a check valve, there are several common pitfalls to avoid. One of the most common mistakes is choosing the wrong valve type for the operating conditions—for example, using a swing check valve in a high-pressure application where a lift check valve would be more suitable. Ignoring material compatibility can also lead to premature valve failure; always select materials that are resistant to the fluid being handled. Oversizing or undersizing the valve can cause inefficiencies or performance issues, so it’s important to calculate the flow rate and pressure drop to select the correct size. Neglecting to match the valve’s cracking pressure to the system’s operating pressure can result in poor sealing or failure to open properly. Finally, forgetting to prioritize maintenance can lead to increased downtime and costs; choose valves that are easy to maintain and avoid complex, hard-to-repair designs.

Maintenance & Troubleshooting for Long-Term Performance

Proper maintenance and troubleshooting are essential for ensuring the long-term performance and reliability of check valves. By following best practices for preventive maintenance and addressing common issues promptly, you can extend the service life of your valves and minimize downtime.

Preventive Maintenance Best Practices

Preventive maintenance is key to avoiding unplanned downtime and extending valve service life. Regular inspections—monthly, quarterly, or annual—should be conducted to check for wear, corrosion, leaks, or debris buildup. Cleaning the valve and pipeline regularly is particularly important in applications involving slurries or debris, as buildup can cause the valve to stick or fail. Lubricating moving parts with a compatible lubricant—taking care not to over-lubricate—can reduce friction and wear. Worn seals should be replaced proactively to prevent backflow or leaks. Periodic pressure and flow testing is also recommended, especially for high-risk applications, to ensure that the valve is performing as expected.

Troubleshooting Common Issues

When issues arise with check valves, prompt troubleshooting can help minimize damage and downtime. Backflow is a common issue that can be resolved by replacing worn seals, cleaning the valve and pipeline, or verifying that the valve is the correct size and type for the application. Valve sticking is often caused by debris buildup or corrosion; cleaning the valve, lubricating moving parts, or replacing corroded components can resolve this issue. Noise and vibration may be caused by water hammer or loose components; using dashpot or spring-assisted valves, nozzle check valves, or tightening loose components can mitigate these problems. Leakage can be addressed by replacing worn seals, repairing cracked valve bodies, or ensuring proper installation. Reduced flow efficiency may be caused by debris buildup or damaged closure members; cleaning the valve or replacing damaged components can restore performance.

Conclusion

In conclusion, Check Valves are key components for anti-backflow protection in fluid systems, with continuous technological innovation enhancing safety and efficiency. Selecting the right check valve and supporting intelligent solutions can ensure long-term stable and reliable operation of industrial fluid systems.

FAQs

Q1: What is a check valve, and how does it differ from other fluid control valves?

A1: A check valve—also known as a check valve one way valve or non-return valve—is an automatic, self-actuated fluid control device that permits flow in only one direction while preventing backflow, with no external power or manual operation required. This directly answers what is a check valve, and what does a check valve do is simple: it safeguards against backflow to protect system equipment and integrity. Unlike globe valves or gate valves, which require manual or automated control to open and close, check valves operate solely based on pressure differentials. The check valve symbol, used in engineering diagrams, features an arrow (indicating allowed flow direction) and a closure member (flap or ball), distinguishing it from other valve symbols. Its core function is to protect systems from backflow damage, making it a unique and essential component in fluid systems, available in various check valve types to suit different industrial needs.

Q2: How do smart check valves improve maintenance?

A2: Smart check valves integrate sensors, data analytics, and wireless communication to provide real-time performance insights. They monitor flow direction, pressure, temperature, and valve position, sending data to a cloud platform for remote monitoring. This enables early detection of leaks, backflow, or abnormal pressure, as well as predictive maintenance by identifying failure patterns, reducing unplanned downtime and extending valve service life.

Q3: What materials are best for check valves in corrosive environments?

A3: The best materials for check valves in corrosive environments include corrosion-resistant alloys (CRAs) such as Hastelloy, Inconel, and duplex stainless steel, which withstand aggressive fluids at extreme temperatures and pressures. Protective coatings (e.g., ceramic, PTFE) and composite materials (e.g., fiberglass-reinforced polymer (FRP), carbon fiber) also offer excellent corrosion resistance, making them suitable for harsh industrial settings. Sedelon’s low-emission valves utilize these materials for corrosive applications.

Q4: How can I prevent water hammer in check valves?

A4: Water hammer can be prevented by using check valves equipped with dashpot or spring assistance to control closure speed, as well as nozzle check valves or silent lift check valves. Proper valve sizing and installation also play a key role in reducing water hammer risks, ensuring the valve operates in line with the system’s flow and pressure requirements.

Q5: What factors should I consider when selecting check valve types for my application?

A5: When selecting check valve types, key factors include fluid type (corrosive, viscous, slurry, etc.), operating conditions (pressure, temperature), flow rate and pressure drop requirements, space and installation constraints, and regulatory compliance (e.g., ISO 15848-1, API standards). It’s also critical to understand what does a check valve do in your specific system—ensuring it can effectively prevent backflow while aligning with your system’s needs—and what is a check valve in terms of its design and operation. For example, corrosive fluids may require check valves made of CRAs or composites, while high-pressure systems benefit from lift or nozzle check valve types. Additionally, matching the valve’s cracking pressure to the system’s operating pressure and prioritizing easy maintenance are key to long-term performance. The check valve symbol is also useful when selecting valves, as it helps identify the valve type in schematics, ensuring you choose the right check valve one way valve for your application.

Q6: Are wafer check valves suitable for high-pressure applications?

A6: Wafer check valves are primarily designed for space-constrained settings and moderate pressure applications. While some specialized wafer valves can handle higher pressures, they are generally not the first choice for extreme high-pressure environments. For high-pressure applications, lift check valves or nozzle check valves are more suitable due to their precise sealing and structural design.

Q7: What is the purpose of a specialty check valve, and when should I use one?

A7: Specialty check valves are designed to address unique or extreme operating conditions that standard check valves cannot handle. For example, duckbill check valves are ideal for wastewater, marine, and irrigation applications due to their flexibility and debris resistance; nozzle check valves are used for high-velocity, high-pressure systems to minimize cavitation; stop-check valves combine check and globe valve functions for critical applications needing both control and safety; and low-emission check valves comply with environmental standards for oil and gas, chemical, and environmental industries.

Q8: How often should check valves be inspected and maintained?

A8: The frequency of inspection and maintenance depends on the application and operating conditions. For most industrial applications, monthly or quarterly visual inspections for wear, corrosion, leaks, or debris are recommended, with annual comprehensive inspections that include cleaning, lubrication, seal replacement, and performance testing. High-risk applications (e.g., oil and gas, power generation) may require more frequent maintenance to ensure safety and reliability.

Q9: Can check valves be repaired, or should they be replaced when they fail?

A9: Many check valve issues can be repaired, such as replacing worn seals, cleaning debris, lubricating moving parts, or repairing minor cracks. However, if the valve body is severely damaged, the closure member is worn beyond repair, or the valve fails to meet performance standards after repair, it should be replaced. Choosing easy-to-maintain valve designs can reduce repair costs and downtime.

Q10: How do composite material check valves compare to metal check valves?

A10: Composite material check valves (e.g., FRP, carbon fiber) are lighter, more corrosion-resistant, and often more cost-effective to install than metal check valves. They are ideal for applications where weight and corrosion resistance are critical, such as offshore energy, marine, and wastewater treatment. However, metal check valves (e.g., stainless steel, CRAs) are better suited for extreme high-temperature and high-pressure applications where structural strength is a top priority.
