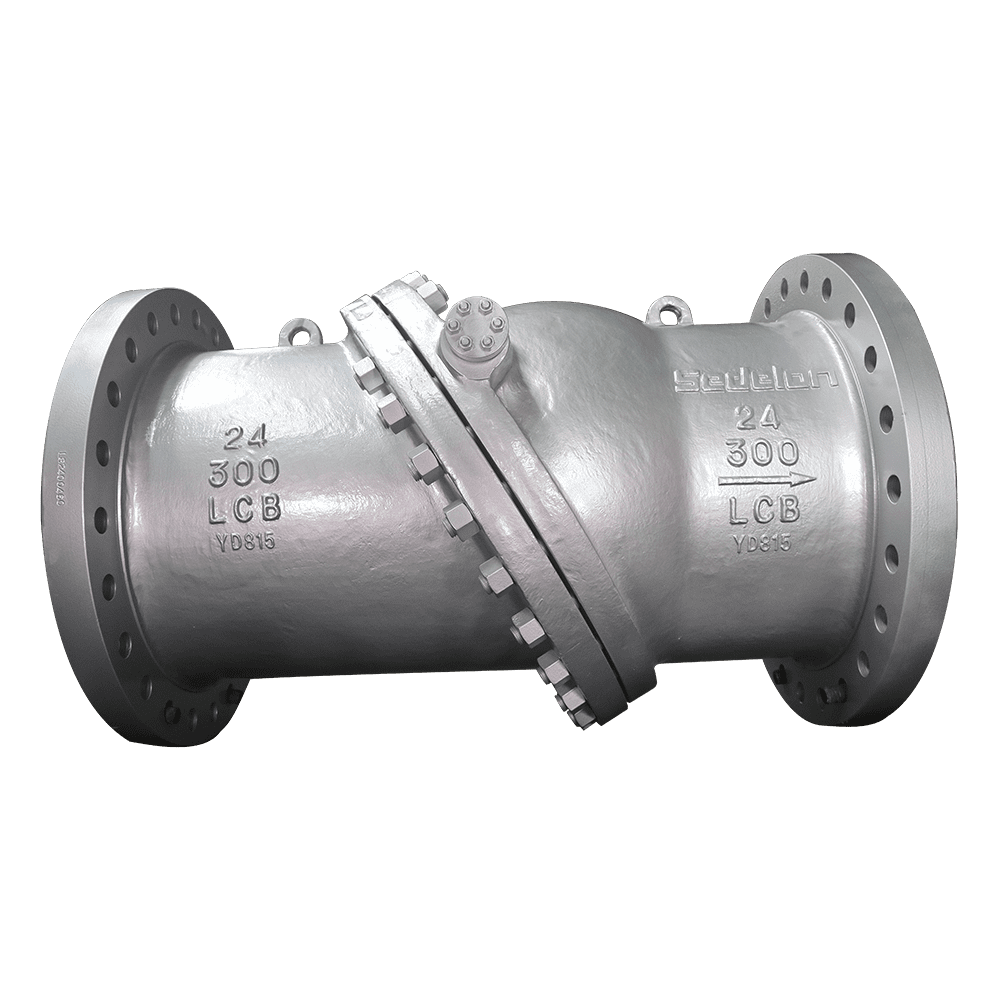

Tilting Disc Check Valve API 598

Tilting Disc Check Valve

Materials：

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A

Get A Quote
Download

product feature

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI 16.34

Pressure Test：API598

Follow Us

Facebook Youtube X-twitter Tiktok

Class150 Tilting Disc Check Valve



Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI 16.34

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A

NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
D3 mm 51 64 76 102 127 152 203 254 305 337 387 438 489 591
L(RF) mm 203 216 241 292 330 356 495 622 699 787 864 978 978 1295
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
D1 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D mm 152 178 190 229 254 279 343 406 483 533 597 635 699 813
b mm 16 18 19 24 24 26 29 31 32 35 37 40 43 48
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35

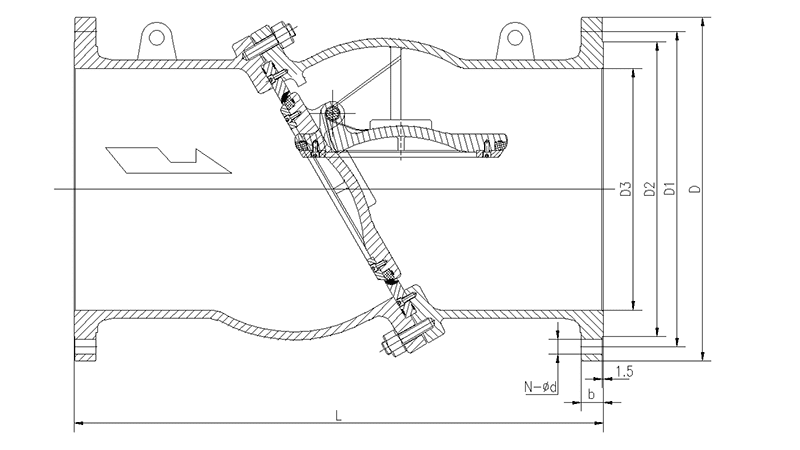

Class300 Tilting Disc Check Valve



Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI 16.34

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A

NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
D3 mm 51 64 76 102 127 152 203 254 305 337 387 432 483 584
L(RF) mm 267 292 318 356 400 445 533 622 711 838 864 978 1016 1346
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
D1 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 279 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 35 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41

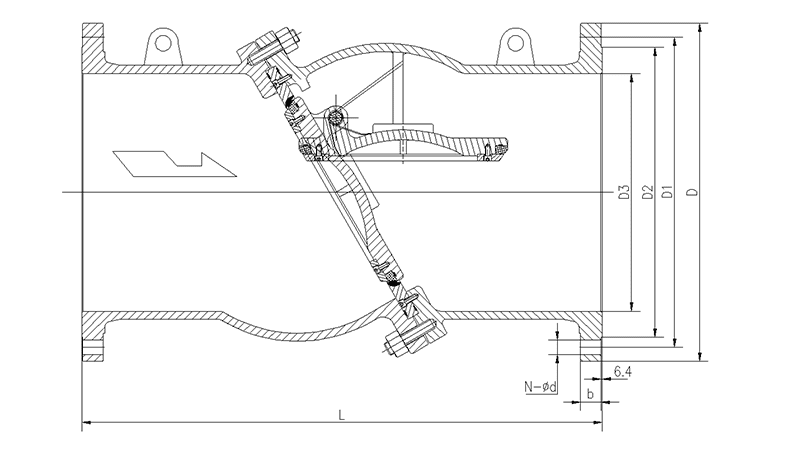

Class600 Tilting Disc Check Valve



Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI 16.34

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A

NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
D3 mm 51 64 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
D2 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
D1 mm 127 149 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 190 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 29 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
