A top entry ball valve lets you service seats, seals and the ball without removing the valve from the pipeline. For plant operators and EPC buyers in oil & gas, petrochemical and power generation, this design reduces downtime and total cost of ownership. This guide explains how top entry ball valves work, how to perform in-line maintenance safely, and what to check when sourcing from a manufacturer. Sedelon supplies forged ball valves and cast steel ball valves built to API 6D, API 608 and ASME B16.34.
Short answer: A top entry ball valve has a bolted bonnet that opens from the top, giving full access to trim components while the body stays welded or flanged in line. It is ideal for high-pressure, large-bore pipelines where removing the valve is expensive or unsafe.

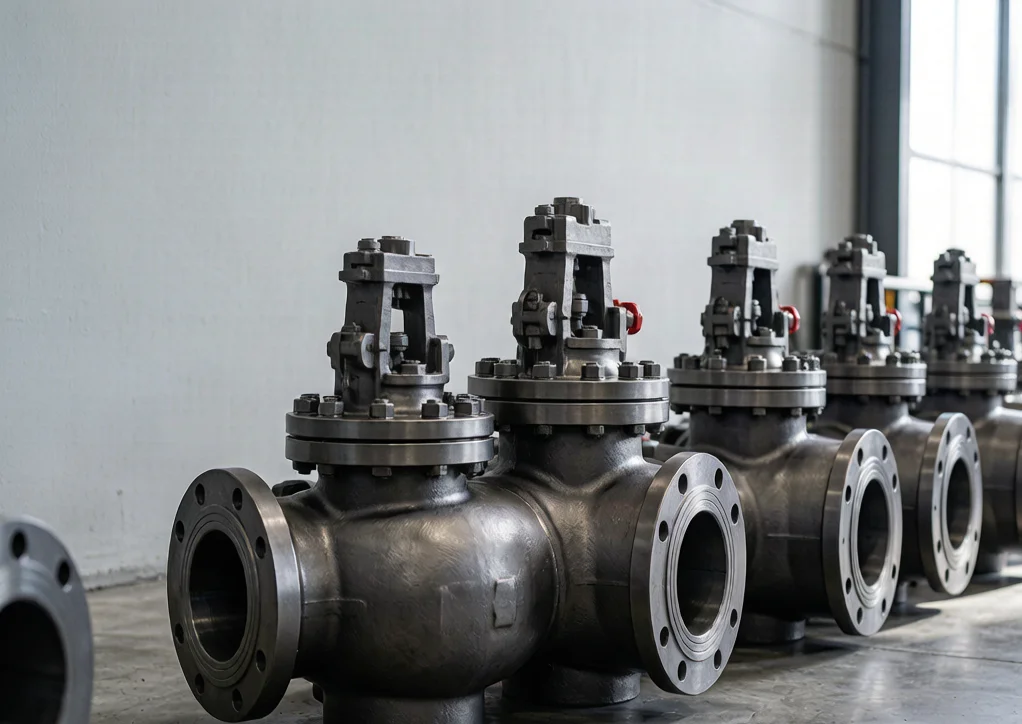

What Is a Top Entry Ball Valve?
A top entry ball valve is a quarter-turn isolation valve where the body, ball, seats and stem are accessed through a removable bonnet on the top of the body. Unlike a side entry or fully welded design, the top entry construction keeps end connections intact while the internal trim is lifted out for inspection, repair or replacement. This is why trunnion mounted ball valves in critical pipelines are often supplied as top entry.
The stem passes through the bonnet, the ball is supported by upper and lower trunnions, and seats are energized by springs or line pressure. Because the body is not split, wall thickness and pressure retention are consistent across the full pressure-temperature rating.
| Feature | Top Entry | Side Entry / Split Body | End Entry / Welded |
|---|---|---|---|
| Access point | Bolted bonnet from top | Body split at centerline | End entry or fully welded |
| In-line maintenance | Yes | Usually not | No |
| Common size range | NPS 6 to NPS 56+ | NPS 1/2 to NPS 24 | NPS 2 to NPS 48 |
| Lifecycle cost | Lower | Medium | Higher |
| Primary standards | API 6D, ASME B16.34 | API 608, ISO 17292 | API 6D, ASME B16.34 |
Why In-Line Maintenance Matters

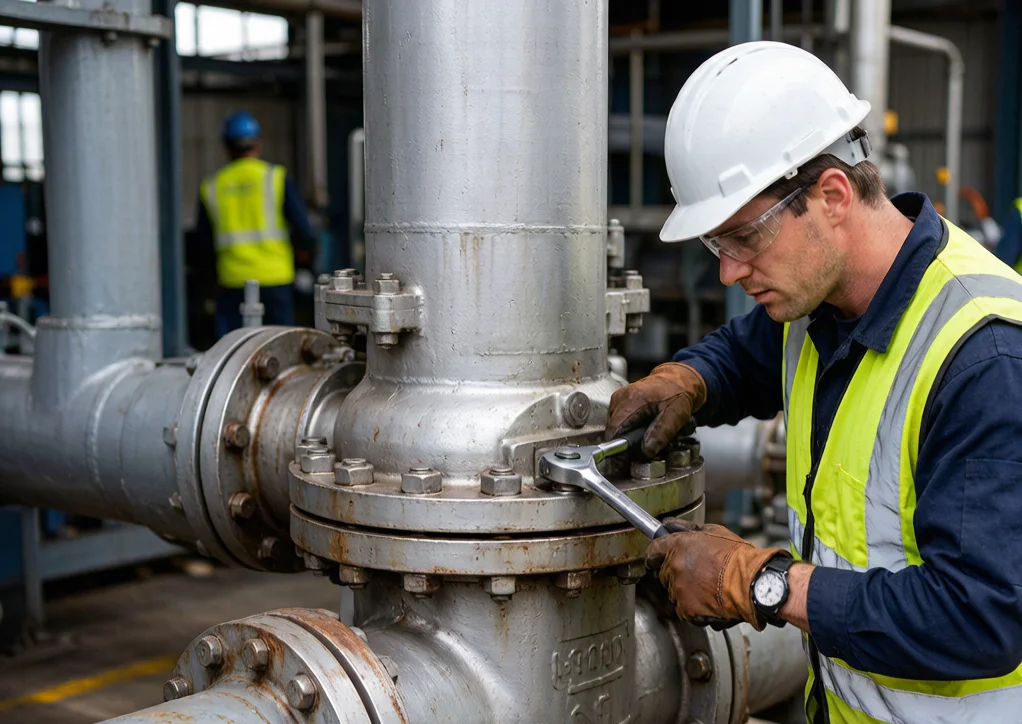

In large-diameter, high-pressure lines, removing a valve means breaking flanges, draining long pipe sections and using cranes. Top entry construction avoids that. Technicians open the bonnet, extract the ball-and-seat assembly, replace soft goods and re-torque the bonnet without disturbing the pipeline. This reduces outage time from days to hours and avoids the safety risks of full valve removal. Ball valve repair becomes a scheduled activity rather than an emergency shutdown.
Step-by-Step In-Line Maintenance
Every maintenance procedure must follow the plant lockout/tagout (LOTO) policy and the valve manufacturer’s maintenance manual. The general workflow below applies to bolted-bonnet top entry ball valves used in hydrocarbon service.
Expand full in-line maintenance checklist
- Depressurize and isolate the valve. Confirm zero energy state with pressure gauges.
- Drain the body cavity and vent any trapped process fluid.
- Mark the bonnet orientation and actuator/gear position before disassembly.
- Remove bonnet nuts in a star pattern to avoid gasket distortion.
- Lift the bonnet assembly slowly using an overhead hoist or jib crane on large valves.
- Inspect the ball surface for scoring, pitting or coating damage; check seats for extrusion or wear.
- Replace stem packing, body gaskets, seat inserts and any damaged trunnion bearings.
- Apply the manufacturer-specified lubricant to moving parts and seals.
- Reassemble with calibrated torque and re-tension in the correct sequence.
- Perform a low-pressure seat test and a high-pressure shell test before returning to service.
Use OEM spare parts and record bolt torques, gasket part numbers and test pressures in the asset management system. If the valve handles sour gas or cryogenic fluids, verify that replacement elastomers match the original material certificate. Sedelon provides maintenance kits and technical datasheets for its API 6D ball valves.
Need replacement parts or a maintenance kit?
Send your valve tag number or serial number and our team will confirm the correct trim, seals and gaskets for your top entry ball valve.
Materials, Pressure Classes & Standards
Material selection depends on pressure class, temperature range and process chemistry. The table below shows common choices for top entry ball valves in industrial service.
| Component | Common materials | Notes |
|---|---|---|
| Body / Bonnet | A105, A216 WCB/WCC, A351 CF8M, A352 LCC | Class 150–2500 per ASME B16.34 |
| Ball | A105+ENP, 316 SS, 17-4PH, duplex SS | Hard chrome or nickel plating for abrasion |
| Seats | PTFE, RPTFE, PEEK, nylon, metal | Metal seats for high temperature |
| Stem / Seals | 316 SS, 17-4PH; graphite, PTFE, elastomer | Fire-safe and low-emission options available |
Applicable standards include API 6D for pipeline valves, API 608 for metal ball valves, ASME B16.34 for pressure-temperature ratings, ISO 17292 for petroleum and natural gas applications, and API 607 or ISO 10497 for fire-safe design. Low-emission packing should meet API 641 or TA-Luft where fugitive emissions are regulated. Browse the full ball valve product range for material and pressure options.
When to Choose Top Entry (and When Not To)
Top entry ball valves are not always the best choice. An honest evaluation keeps total cost of ownership low and avoids operability problems later.
Choose top entry when:
- The pipeline is large-bore (NPS 16 and above) or high-pressure (Class 600 and above).
- Removing the valve requires breaking major flanges, draining long sections or using cranes.
- The plant runs continuous processes where downtime is measured in millions of dollars per day.
- Double block and bleed, emergency sealing or cavity relief are required.
Consider alternatives when:
- The line is small-bore and low-pressure, where a side entry or plug valve vs ball valve comparison favors a simpler design.
- Upfront capital cost is the primary constraint and lifecycle maintenance is less critical.
- There is no overhead clearance or rigging access for bonnet removal.
- The valve will be buried or fully welded with no planned maintenance.
Sourcing Guide: How to Evaluate a Manufacturer
For B2B buyers, the lowest quoted price rarely equals the lowest project cost. Use this checklist when qualifying a top entry ball valve manufacturer.
- Standard compliance: Confirm the valve is designed, tested and marked to API 6D / API 608 / ASME B16.34 as required by your specification.
- Material traceability: Request mill test certificates (MTC), heat numbers and material certificates for body, ball and trim.
- Pressure testing: Verify shell and seat test protocols, test pressures, holding times and acceptance criteria.
- NDE capability: Check for radiographic (RT), ultrasonic (UT), dye penetrant (PT) and magnetic particle (MT) inspection.
- Certifications: Ask for ISO 9001, API Q1, API 6D monogram, API 607 fire-safe and API 641 low-emission records.
- Project references: Request end-user references in similar service, size and pressure class.
- Lead time and spares: Confirm realistic delivery schedules and availability of spare trim kits after commissioning.
- Technical support: Ensure the supplier provides installation, commissioning and maintenance guidance in English and your local language.
Sedelon’s quality control program covers incoming inspection, in-process checks, hydrostatic testing, final inspection and documentation. Our team can supply inspection test plans (ITP) and data books matched to project specifications.
Sourcing a top entry ball valve?
Tell us your size, pressure class, material and standard. We will return a quotation with drawings, datasheets and test documentation.
Frequently Asked Questions
What is the main difference between top entry and side entry ball valves?
A top entry ball valve is opened from the top through a bolted bonnet, so internal parts can be removed while the body remains in the line. A side entry valve is split at the centerline; maintenance usually requires removing the valve from the pipeline.
Can all top entry ball valves be repaired in-line?
Most bolted-bonnet top entry designs allow in-line repair, but only after full isolation, depressurization and draining. Always follow the manufacturer’s maintenance manual and plant safety procedures.
What standards apply to top entry ball valves?
API 6D and ASME B16.34 are the most common standards. API 608 and ISO 17292 also apply depending on size, pressure class and industry. Fire-safe and low-emission requirements are covered by API 607 and API 641.
Which material should I choose for sour gas service?
For sour gas, select body and ball materials that meet NACE MR0175/ISO 15156, with hardness limits and proper heat treatment. Common choices include A350 LF2, A182 F316L and duplex stainless steels.
Are top entry ball valves more expensive than side entry valves?
The initial purchase price is usually higher because the body is a single forging or casting and machining is more complex. However, lifecycle cost can be lower when in-line maintenance avoids crane rental, line drainage and extended shutdowns.
What information does a manufacturer need to quote a top entry ball valve?
Provide size, pressure class, end connections, body and trim material, operating temperature, process fluid, design standard, actuator type and any testing or documentation requirements.
How do I verify fire-safe and low-emission performance?
Ask for third-party test reports to API 607 or ISO 10497 for fire-safe design, and API 641 or TA-Luft type-test reports for low-emission packing. The reports should include valve size, pressure class and test medium used.
