Y Strainer vs Basket Strainer：Which One Protects Better?

In industrial piping systems, in order to effectively remove solid impurities, scale and harmful substances, appropriate filtration is necessary. This can prevent equipment damage, pipe blockage, low efficiency and unexpected shutdowns. As a professional y strainer supplier, we know that selecting suitable industrial filtration equipment is critical to system stability. Y strainer and basket strainer are the two most mainstream pipeline filters, widely adopted in liquid, gas and steam industrial systems.

The industrial basket strainer and the Y strainer can effectively remove impurities, but there are significant differences in terms of structure, flow rate, installation method, maintenance warranty, and ideal usage conditions. By understanding the differences between these two filters and grasping the appropriate selection criteria, engineers and factory managers can maximize the filtration efficiency and thereby save long-term operating costs. This paper will conduct a comprehensive comparative analysis of these two filters and propose useful suggestions for practical applications to help determine which filters can provide better protection performance for the pipeline system.

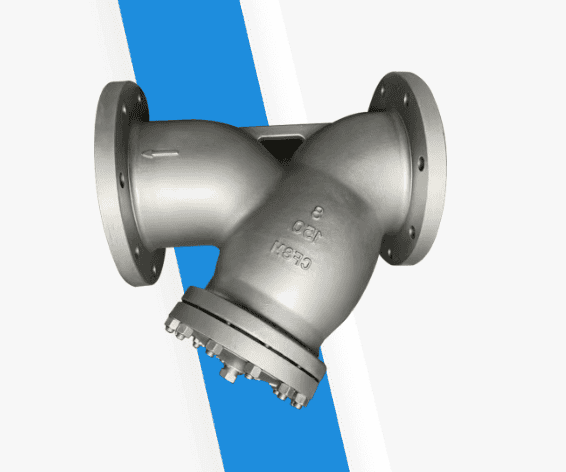

What Is a Y Strainer?

A y strainer is a classic inline pipeline filtration device named after its unique Y-shaped structural design, and understanding what is a y strainer is the first step for industrial engineers to complete pipeline precision filtration design. It is installed directly on straight pipeline sections, with its filter chamber branching off the main pipeline at a 45-degree angle, forming a distinct Y shape. As one of the most popular industrial strainers, it is designed for continuous filtration of small to medium-sized solid particles in fluid, gas, and steam pipelines.

The core components of a Y strainer include a stainless steel filter screen, a strainer body, a drain plug or blowdown valve, and end connections for pipeline installation. During operation, fluid flows straight through the main pipeline, and solid impurities are intercepted and trapped in the angled filter screen cavity. The compact structure enables Y strainers to adapt to high-pressure, high-temperature, and narrow installation space working conditions.

Y strainers are primarily used for fine filtration and pipeline pre-protection, targeting fine sediment, rust particles, and tiny debris. They are widely applied in chemical, petroleum, power generation, water treatment, and HVAC industries, especially suitable for systems with long-term continuous operation and low debris load.

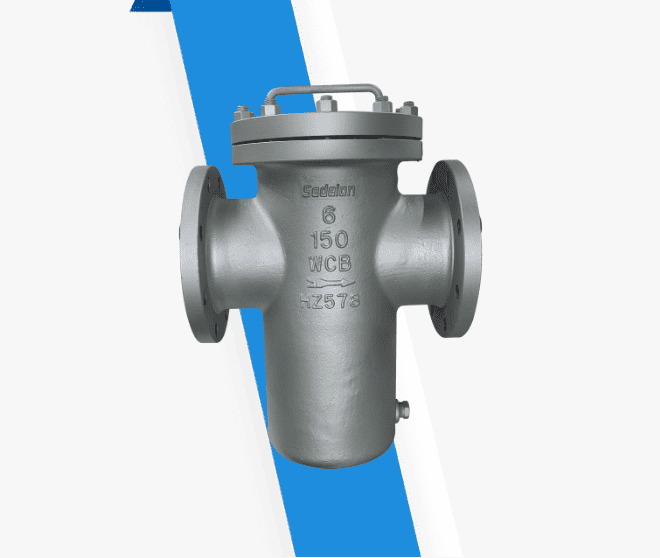

What Is a Basket Strainer?

An industrial basket strainer, also known as a bucket strainer, is a high-capacity industrial filtration device featuring a cylindrical basket-shaped filter element, which is the most widely used strainer basket type for heavy-duty pipeline filtration scenarios. Different from the inline structure of Y strainers, basket strainers adopt a straight-through or offset pipeline structure with a large internal filter basket cavity that provides ample space for debris storage.

The main structure of a basket strainer consists of a robust strainer body, a removable mesh filter basket, a top cover with a bolt or quick-opening structure, and pipeline flanges. When fluid passes through the strainer, all solid debris is captured inside the basket filter element. The open and large-capacity basket design allows it to accommodate a large volume of impurities and large-size solid particles that Y strainers cannot intercept effectively.

Basket strainers are dedicated to heavy-duty filtration scenarios with high debris content and large particle sizes. They are commonly used in sewage treatment, industrial water circulation, oil pipeline transmission, and mining fluid systems, where pipelines face frequent impact from large debris and heavy pollution loads.

Key Differences Between Y Strainer and Basket Strainer

To accurately distinguish Y strainers and basket strainers and match them with applicable working conditions, we analyze their core differences from ten key dimensions covering function, structure, performance, installation, maintenance, cost, and adaptability.

Basic Function & Filtration Capacity

Y strainers specialize in fine precision filtration. Their fine mesh screens effectively trap micro debris like fine sediment and rust powder, delivering accurate pre-protection for precision pipeline valves and pumps. However, limited by its small cavity structure, a y strainer cannot handle large-volume or oversized impurities and clogs easily under heavy pollutant loads.

Basket strainers focus on high-capacity coarse to medium filtration. As a versatile industrial basket strainer, it features a large filter basket structure that accommodates massive large-particle impurities and floating debris. Though less effective in ultra-fine filtration than y strainers, it boasts far higher impurity tolerance and filtration capacity, ideal for blocking large debris and preventing severe pipeline blockage and equipment impact damage.

Design & Structural Specifications

Y strainers feature a compact integrated Y-shaped inline structure with no protruding large cavity. The filter screen is a small cylindrical or conical mesh structure fixed inside the branch pipeline, with a simple and lightweight overall structure. The body is streamlined, fully adapted to straight pipeline layout, and will not cause excessive pipeline protrusion or space occupation. Standard Y strainers have small body sizes and uniform structural specifications, suitable for small and medium-diameter pipelines.

Basket strainers adopt a bulky straight-through structure with a vertical or horizontal basket cavity. The top is equipped with a detachable sealing cover, and the internal basket filter element has a large depth and volume. The overall structure is heavier and more robust, with higher structural strength to withstand high-flow fluid impact. Basket strainers are available in small, medium, and large sizes, supporting matching with large-diameter industrial pipelines, and their structural design prioritizes debris storage space over compactness.

Flow Rate & Pressure Drop Performance

In terms of flow rate performance, Y strainers have smooth internal runners with small flow resistance. Under standard working conditions, they maintain a stable high flow rate and cause minimal obstruction to fluid transmission. The pressure drop of Y strainers is extremely low in a clean state, basically not affecting the overall pipeline pressure system. As debris accumulates, the pressure drop rises slowly, and the pressure change is uniform and predictable.

Basket strainers have large internal cavity volumes and allow high-flow fluid passage, supporting ultra-high flow rate working conditions suitable for large-caliber pipeline systems. However, due to the sudden expansion of the internal runner, the initial pressure drop is slightly higher than that of Y strainers. When the filter basket is filled with debris, the pressure drop rises rapidly, and severe clogging will cause obvious pipeline pressure fluctuation.

Installation Requirements

Y strainers support flexible installation methods, including horizontal and vertical pipeline installation. The small and lightweight body requires no additional fixing brackets and can be directly installed on any straight pipeline section. They have low requirements for installation space, adapt to narrow pipeline intervals and compact equipment layout environments, and feature simple and fast installation with standard flange or thread connection methods.

Installing a basket strainer has strict installation requirements. Due to their heavy weight and large volume, they are mostly suitable for horizontal installation, and vertical installation is only allowed for specific small-size models. Large basket strainers require customized fixing supports to bear the equipment weight. Meanwhile, sufficient upper space must be reserved for opening the top cover and taking out the filter basket during maintenance, which puts higher demands on the overall pipeline layout and installation environment.

Maintenance & Cleaning Process

Y strainers feature extremely convenient daily maintenance. Most models are equipped with bottom drain plugs or automatic blowdown valves. For daily fine debris accumulation, operators can complete sewage discharge and cleaning by opening the blowdown valve without disassembling the equipment. For thorough cleaning of residual impurities, only simple disassembly of the small end cover and taking out the filter screen is required, with short operation time and low technical threshold. The small filter screen is easy to clean, rinse, and replace, with low maintenance labor costs.

Basket strainer maintenance is relatively cumbersome. Daily minor cleaning still requires opening the top cover and taking out the integral filter basket for manual flushing and cleaning, as there is usually no automatic blowdown function. For large basket strainers, the top cover is heavy with multiple fixing bolts, and disassembly and assembly require professional tools and operators. The large-volume filter basket is heavy and inconvenient to clean, and the maintenance cycle is longer with higher labor and time costs.

Particle Holding Capacity

Particle holding capacity refers to the maximum volume of debris that a strainer can store before clogging. Y strainers have a small branch filter cavity, so their particle holding capacity is limited. They can only store a small amount of fine debris and are suitable for working conditions with low impurity content and clean fluid media. In scenarios with frequent debris generation, Y strainers will clog quickly and require frequent cleaning.

Basket strainers have an overwhelming advantage in particle holding capacity. The deep and large-capacity filter basket can store dozens of times more debris than Y strainers. It can accommodate a large number of large particles, suspended solids, and agglomerated impurities, with a long dirt holding cycle. It is very suitable for working conditions with high impurity content and unstable water quality, effectively avoiding frequent shutdown cleaning caused by debris accumulation.

Cost & Footprint Differences

In terms of procurement cost, Y strainers have a simple structure, fewer raw materials, and standardized mass production, so the unit price is low and the cost performance is high. Their small footprint saves pipeline layout space and does not require additional installation and support costs, with low overall one-time investment.

Basket strainers have thickened bodies, large-size filter elements, and complex sealing structures, leading to higher raw material and manufacturing costs, with a 30%-100% higher procurement price than Y strainers of the same caliber. In addition, their large occupied space increases the difficulty of pipeline layout, and the supporting fixing and installation costs further raise the overall project investment.

Operating Pressure & Temperature Limits

Y strainers have excellent pressure and temperature resistance. The compact integrated structure has good pressure-bearing stability, with standard models supporting working pressure up to 16MPa and high-pressure customized models up to 42MPa. They can adapt to high-temperature steam, high-pressure oil, and chemical fluid systems, with a wide temperature adaptation range of -20℃ to 450℃, and are not prone to deformation or leakage under extreme working conditions.

Conventional basket strainers are suitable for medium and low-pressure working conditions, with a standard pressure resistance of no more than 10MPa. Due to the split structure of the top cover and body, the pressure-bearing stability is weaker than that of integrated Y strainers, and high pressure may easily cause sealing leakage. Their temperature resistance is also limited, and they are mostly used in conventional normal-temperature and medium-temperature fluid systems, with poor adaptability to extreme high-temperature and high-pressure environments.

Material & Customization Options

Y strainers support diverse material configurations, including cast iron, carbon steel, 304 stainless steel, 316L stainless steel, and alloy steel, covering conventional and corrosive working conditions. The filter screen mesh can be customized precisely from 20μm to 5mm according to filtration precision needs. Meanwhile, multiple connection methods such as thread, flange, and welding are optional, and special specifications for ultra-small and ultra-high pressure can be customized.

Basket strainers are mainly made of carbon steel and stainless steel, with relatively few optional special alloy materials. The filter basket can be customized in mesh size and thickness, and reinforced thickened baskets can be configured for heavy-duty working conditions. However, their overall customization flexibility is lower than that of Y strainers, with fewer personalized options for special pressure, temperature, and connection forms.

Continuous Operation & Bypass Compatibility

Y strainers are highly suitable for long-term continuous operation systems. With the automatic blowdown function, most fine debris can be discharged without shutdown, realizing uninterrupted filtration. They can be perfectly matched with bypass pipeline systems. When the filter screen needs thorough cleaning, the bypass pipeline can be opened to maintain normal pipeline operation, with zero impact on continuous production.

Conventional single-basket strainers must shut down the pipeline for cleaning and replacement, which cannot support uninterrupted continuous operation. Although dual-basket parallel strainers can realize switching operation, the equipment cost and space occupation will increase significantly. Their bypass compatibility is poor, and the pipeline switching operation is more complicated than that of Y strainers, with higher risks of operation errors.

5. Y Strainer VS Basket Strainer

Based on the 10 core comparison dimensions listed above, we have sorted out a comprehensive comparative table below. It intuitively summarizes all key differences between Y strainers and basket strainers, covering structure, performance, installation, maintenance, cost, and operational adaptability for quick and accurate reference.

Sedelon Case Studies: Practical Application of Y Strainers & Basket Strainers

Sedelon has rich practical experience in industrial strainer R&D, production, and system matching, providing customized filtration solutions for multiple industries. The following two classic cases fully verify the scenario adaptability of Y strainers and basket strainers.

Small Debris Protection for Pipelines

A thermal power plant in central China needed to upgrade its steam and cooling water pipeline protection system. The pipeline medium was clean high-temperature steam and circulating water, with only a small amount of rust fine powder and tiny sediment impurities. The core demand was to protect precision steam valves and turbine auxiliary equipment, avoid micro-abrasion of equipment caused by fine debris, and ensure long-term uninterrupted operation of the pipeline.

Sedelon provided customized 316L stainless steel high-pressure Y strainers for the project. The equipment adopted a fine-mesh filter screen to realize precise interception of micro debris, withstanding the plant’s 25MPa high pressure and 350℃ high temperature working environment. Equipped with an automatic blowdown valve, the strainer can discharge accumulated fine debris regularly without shutting down the pipeline. After one year of operation, the pipeline pressure remained stable, the failure rate of precision equipment was reduced by 90%, and the maintenance frequency was greatly reduced, achieving efficient and low-consumption pipeline protection.

Heavy-Duty Large Debris Filtration

A municipal sewage treatment plant undertook industrial wastewater and domestic sewage treatment work. The water body contained a large number of large suspended solids, granular sediment, plastic debris, and other impurities, with extremely high impurity content. The original small strainers were frequently clogged, requiring frequent shutdown cleaning and seriously affecting the continuous operation of the sewage treatment system.

Sedelon configured heavy-duty large-caliber basket strainers for the plant. The thickened stainless steel filter basket was adopted to enhance impact resistance, and the ultra-large cavity design greatly improved the dirt holding capacity, which could store a large amount of large debris. For the problem of inconvenient maintenance, a quick-opening cover structure was optimized to shorten the disassembly and cleaning time. After the equipment was put into use, the pipeline clogging failure rate dropped to nearly zero, the cleaning cycle was extended from once a day to once a week, the operational efficiency of the sewage treatment system was significantly improved, and the labor and time costs of equipment maintenance were greatly saved.

How to Choose: 3 Steps to Pick the Right Industrial Strainer

Combined with the above performance comparison and practical cases, we summarize a three-step scientific selection method to help you quickly confirm the most suitable strainer for your working conditions.

Clarify Core Filtration Needs

First, define the medium type (water, steam, oil, chemical fluid), impurity type (fine sediment, large particles, suspended solids), and required filtration precision. If you need high-precision filtration to protect precision equipment and the medium is clean with only fine debris, choose a Y strainer. If the medium has many large impurities and high impurity concentration and the core demand is to prevent pipeline blockage and resist heavy pollution, choose a basket strainer.

Evaluate Scenario Constraints

Evaluate key scenario constraints including pipeline pressure, operating temperature, flow rate, installation space, and production continuity. For high-temperature and high-pressure environments, narrow installation space, and systems requiring uninterrupted continuous operation, Y strainers with stable performance and flexible installation are preferred. For large-diameter high-flow pipelines, normal-temperature and medium-pressure conventional working conditions, and sufficient installation and maintenance space, basket strainers can give full play to their high-capacity filtration advantages.

Compare Long-Term Maintenance & Total Cost

Do not only focus on initial procurement cost but also comprehensively calculate the total life cycle cost. Y strainers have low initial investment, low maintenance frequency, no shutdown loss, and extremely low long-term comprehensive cost, suitable for long-term stable operation scenarios. Basket strainers have high initial purchase cost and high maintenance cost, but they can avoid frequent equipment replacement and pipeline failure losses in heavy-duty pollution scenarios, with higher cost performance in high-impurity working conditions. Select the model with the lowest comprehensive cost according to the actual operating environment.

Conclusion

Y strainers and basket strainers are both essential filtration equipment for industrial pipelines, but their positioning and applicable scenarios are completely different. Y strainers excel in precision filtration, stable extreme condition resistance, convenient maintenance, and low comprehensive cost, providing reliable fine protection for precision pipeline equipment and continuous production systems. Basket strainers rely on their ultra-large dirt holding capacity and heavy-duty filtration performance to solve the filtration pain points of high impurity load and large debris pollution that Y strainers cannot handle.

There is no absolute “better” strainer, only the most suitable one for the working condition. For precision pre-protection, clean media, and continuous operation systems, Y strainers provide better overall protection benefits; for heavy-duty filtration and high-pollution working conditions, basket strainers are the more reliable choice. Accurate selection according to actual pipeline conditions can maximize filtration efficiency, reduce operating costs, and extend the service life of the entire pipeline system.

FAQs

1: Can Y strainers be used for sewage filtration?

It is not recommended. Conventional sewage contains a large amount of large suspended solids and high-concentration impurities. Y strainers have a small dirt holding capacity and are easy to clog quickly, requiring frequent cleaning. For sewage filtration, basket strainers with high dirt holding capacity are more suitable.

2: Do basket strainers support high-pressure steam working conditions?

No. Basket strainers have poor pressure-bearing stability and are prone to sealing leakage under high pressure. High-pressure steam systems must use high-pressure resistant Y strainers with integrated stable structures.

3: Which strainer has a lower long-term operating cost?

Under conventional clean medium working conditions, Y strainers have lower long-term costs due to low maintenance frequency, no shutdown loss, and low replacement cost. Only under long-term heavy pollution working conditions do basket strainers have comprehensive cost advantages.

4: Can I replace a Y strainer with a basket strainer directly?

Direct replacement is not recommended. The two have different sizes, installation space requirements, pressure drop parameters, and structural interfaces. Blind replacement will lead to pipeline matching errors, increased flow resistance, or insufficient filtration precision, affecting system operation stability.

5: Do Y strainers need regular manual cleaning?

Y strainers equipped with blowdown valves can complete daily cleaning through regular blowdown without disassembly. Only after long-term operation or when intercepting viscous impurities does regular manual disassembly and thorough cleaning of the filter screen need to be carried out.

6: What particle sizes can a standard y strainer filter?

A standard y strainer supports customizable mesh sizes ranging from 20μm to 5mm. It is specially designed for fine particle interception, effectively filtering fine sediment, rust particles, and tiny impurities in steam, water, and oil pipelines, making it ideal for precision pre-filtration protection.

7: What are the common strainer basket types for industrial basket strainers?

Common strainer basket types include single-layer mesh baskets, double-layer reinforced baskets, perforated plate baskets, and customized thickened baskets. Different basket types match different impurity loads; reinforced baskets are suitable for heavy-duty working conditions with large debris and high fluid impact.

8: Is installing a basket strainer suitable for vertical pipelines?

Generally not recommended. Most standard industrial basket strainers are designed for horizontal installation to ensure stable debris deposition and complete filtration. Only small-sized lightweight models support vertical installation, while large-caliber heavy-duty basket strainers must be installed horizontally to avoid unstable operation and debris backflow.

9: Which one has a lower pressure drop, Y strainer or basket strainer?

The Y strainer delivers a much lower and more stable pressure drop. Its streamlined inline structure creates minimal flow resistance under normal working conditions. In contrast, basket strainers feature expanded internal cavities, leading to higher initial pressure drop, and the pressure difference rises sharply once the filter basket accumulates debris.

10: Can basket strainers work for high-temperature steam systems?

Conventional basket strainers are not applicable for high-temperature and high-pressure steam systems. Their split top cover structure cannot withstand extreme temperature and pressure, which easily causes sealing leakage. For steam pipeline protection, Y strainers are the more reliable option.

11: How often should I clean industrial basket strainers?

The cleaning cycle depends on water quality and impurity content. For heavy-pollution sewage and industrial wastewater systems, cleaning is recommended every 3–7 days. For medium-clean fluid media, the cycle can be extended to 2–4 weeks. Thanks to its large dirt holding capacity, the basket strainer requires far less frequent cleaning than conventional fine filters.

12: Why choose a professional y strainer supplier for pipeline filtration projects?

A reliable y strainer supplier can provide standardized material selection, precise mesh customization, and pressure-grade matching services. Professional manufacturers support customized solutions for high-pressure, high-temperature, and corrosive working conditions, ensuring stable equipment operation, long service life, and lower overall project and maintenance costs.
