Cast Steel Y Type Strainer Manufacturer - Sedelon Valve

Y Type Strainer

Materials：

WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800

Get A Quote
Download

product feature

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Follow Us

Facebook Youtube X-twitter Tiktok

Class150   Y Type Strainer



Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800



NPS in 1/2 3/4 1 11/2 2 2 1/2 3 4 6 8 10 12
d mm 13 19 25 38 51 64 76 102 152 203 254 305
L(RF) mm 112 117 127 165 203 216 241 292 406 495 622 698
L(BW) mm 112 117 127 165 203 216 241 292 406 495 622 698
d1 mm 35 43 51 73 92 105 127 157 216 270 324 381
d2 mm 60.5 70 79.5 98.5 120.5 139.5 152.5 190.5 241.5 298.5 362 432
D mm 89 98 108 127 152 178 190 229 279 343 406 483
b mm 11 12 12 15 16 18 19 24 26 29 31 32
n-Фd mm 4-16 4-16 4-16 4-16 4-19 4-19 4-19 8-19 8-22 8-22 12-26 12-26
H mm 63 70 85 101 146 156 175 227 283 372 443 495



Class300   Y Type Strainer



Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800



NPS in 1/2 3/4 1 11/2 2 2 1/2 3 4 6 8 10 12
d mm 13 19 25 38 51 64 76 102 152 203 254 305
L(RF) mm 152 178 203 229 267 292 318 356 444 559 622 711
L(BW) mm 152 178 203 229 267 292 318 356 444 559 622 711
d1 mm 35 43 51 73 92 105 127 157 216 270 324 381
d2 mm 66.5 82.5 89 114.5 127 149 168.5 200 270 330 387.5 451
D mm 95 117 124 156 165 190 210 254 318 381 445 521
b mm 15 16 18 21 23 26 29 32 37 42 48 51
n-Фd mm 4-16 4-19 4-19 4-22 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32
H mm 63 70 85 120 151 162 175 235 295 396 485 610

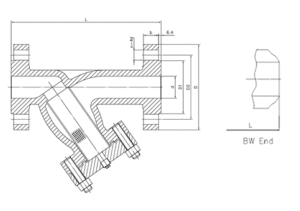

Class 600   Y Type Strainer



Application

Face to Face Dimensions: ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：ANSI B16.34

Pressure Test：API 598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800



NPS in 1/2 3/4 1 11/2 2 2 1/2 3 4 6 8 10 12
d mm 13 19 25 38 51 64 76 102 152 203 254 305
L(RF) mm 165 190 216 241 292 330 356 432 559 660 787 838
L(BW) mm 165 190 216 241 292 330 356 432 559 660 787 838
d1 mm 35 43 51 73 92 105 127 157 216 270 324 381
d2 mm 66.7 82.6 88.9 114.3 127 149 168.5 216 292 349 432 489
D mm 95 115 125 241 165 190 210 273 356 419 508 559
b mm 14.3 16 17.5 22.3 26 29 32 38 48 56 64 67
n-Фd mm 4-16 4-16 4-16 4-22 8-19 8-22 8-22 8-25 12-29 12-32 16-35 20-35
H mm 87 105 114 130 210 240 260 310 390 470 650 740
