Butt Weld vs Socket Weld vs Flanged Valves: How to Choose the Right End Connection

Key Takeaways

Short answer: Choose butt weld gate valves for high-pressure, high-temperature or large-diameter lines where a permanent, leak-tight joint is critical; choose socket weld ends for small-bore branch and instrumentation lines where quick fit-up matters; and choose flanged ball valves wherever you need frequent disassembly, inspection or mixed-component flexibility. The right valve end connection is decided by your design pressure, temperature, pipe size, maintenance philosophy and the governing piping code — not by habit. In this guide we compare all three across the factors that actually drive the decision, with references to the ASME and API standards used across our global valve portfolio.

Understanding Valve End Connections

The end connection is the interface that joins a valve to the pipe. It decides four things that matter to every plant engineer: how leak-tight the joint is, how easy it is to inspect and maintain, how much it costs to install, and whether the line can be modified later. A valve body may be identical across end types, but the end connection changes the installation method, the number of potential leak paths, and the skill required on site. Before comparing the three common ends, it helps to separate the joint from the valve — the end type is a piping decision first and a valve decision second. Our full valve catalog covers all three ends across gate, globe, ball, check, butterfly and bronze designs.

Butt Weld End Valves — When Permanent, Leak-Tight Joints Matter

A butt weld end is welded directly into the pipe using a matching bevel, producing a continuous, full-bore joint with no restriction and essentially no separate leak path beyond the weld itself. It follows ASME B16.25 and is the default for high-pressure and high-temperature services, large diameters (commonly DN50 and up, extending to DN1200 and beyond in pipeline and power applications), and any line where a bolted joint would be a liability — such as hydrogen, steam, or toxic service. The trade-off is real: installation needs a qualified welding procedure (WPS/PQR), post-weld heat treatment on many materials, and non-destructive examination (RT, PT or MT) per the piping code.

For these permanent, demanding lines, our API 600 butt weld gate valves and globe valves are built to API 6D and tested to the highest international standards.

Socket Weld End Valves — Small-Bore Speed and Simplicity

A socket weld end inserts the pipe into a recessed socket and is welded around the outside, following ASME B16.11. It is intended for small bore only — typically DN15 to DN50, occasionally DN65 — and is popular on instrument, sampling and utility branches because fit-up is fast and alignment is forgiving. The limitation engineers must respect is the crevice at the base of the socket, which can trap corrosion and process residue, and the fact that socket weld is unsuitable for large diameters or severe cyclic service. It should also be avoided where the root gap cannot be controlled or where cleanliness of the bore is critical.

Small-bore instrument and utility lines are where socket weld globe valves earn their place, giving precise throttling without the cost of a full butt weld procedure on every branch.

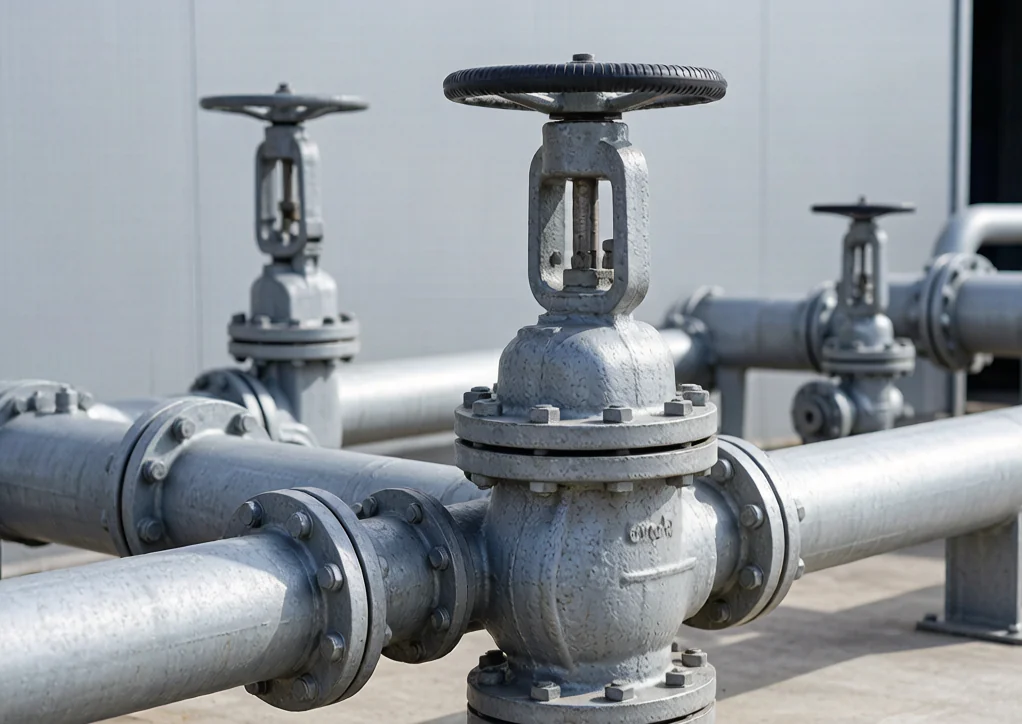

Flanged End Valves — Maintenance and Flexibility First

A flanged end bolts the valve between two pipe flanges using a gasket, following ASME B16.5 (up to Class 2500, smaller sizes) or B16.47 (large diameters). Flanges are the most serviceable end type: the valve can be removed for inspection, cleaning or replacement by simply breaking the bolted joint — no hot work, no cutting. This makes flanged ends the standard choice for lines that are opened regularly, for skid-mounted packages, and where components from different manufacturers or standards must be mated. The cost is added weight, space, and extra bolted leak paths that depend on correct gasket selection and bolt torque.

Flanged ends are available across our range, including flanged ball valves and flanged butterfly valves for isolation and control duties.

Butt Weld vs Socket Weld vs Flanged: Side-by-Side

How to Choose the Right End Connection

Work through these factors in order; the first hard constraint usually decides the end type:

• 1. Pressure and temperature class. Define the design condition first. High-pressure, high-temperature mains point to butt weld; routine utility pressures can use socket or flanged.
• 2. Pipe diameter. Above roughly DN50, socket weld is off the table — choose butt weld or flanged. Below DN50, socket weld becomes attractive for speed.
• 3. Maintenance and inspection frequency. If the valve is opened or replaced often, flanged wins. For set-and-forget mains, welding is fine.
• 4. Fluid service and code. Flammable, toxic or high-purity service often favours welded joints to remove gasket paths, but must meet welding qualification and NDE requirements under ASME B31.3.
• 5. Cost and schedule. Flanged is fastest to install and rework; welded ends cost more in labor and inspection but less in joint count.
• 6. Future modifications. Skids and temporary tie-ins benefit from flanged ends you can break and re-bolt.

Standards themselves differ by region and design basis — if your specification mixes them, read our explainer on API vs DIN valve standards before locking the end type.

Valve End Connection Quick Selector

Use this no-download checklist to narrow the choice. Open each question that matches your line:

What Each End Connection Cannot Do

Stating the limits is part of a sound specification, not a caveat:

• Butt weld cannot be disassembled without cutting, requires post-weld heat treatment on many alloys, and concentrates risk in weld quality — a poor procedure defeats every advantage.
• Socket weld cannot be used above small bore, cannot be specified where the socket crevice would corrode or contaminate, and is poor for severe thermal cycling.
• Flanged cannot match the compactness or joint count of welding, depends entirely on gasket condition and bolt torque, and adds weight and clearance requirements that matter in tight skids.

These limits are why we invest in in-house quality control, hydrostatic and fugitive-emission testing, and API / CE / ISO 9001 / TS certifications — the end connection is only as reliable as the manufacturing behind it.

Frequently Asked Questions

What is the difference between butt weld and socket weld valves?

The difference is in the joint geometry. A butt weld valve is welded into a matching pipe bevel for a continuous full-bore connection, while a socket weld valve inserts the pipe into a recessed socket and is welded around the outside. Butt weld suits large, high-pressure lines; socket weld is limited to small bore (DN15–DN50) and is faster to fit up but carries a crevice that can corrode.

When should I choose flanged ends over welded ends?

Choose flanged ends whenever the valve must be removed for inspection, cleaning or replacement without cutting the pipe, or when you need to mate components built to different standards. Flanged joints follow ASME B16.5 / B16.47 and are the serviceable, flexible option; welded ends win when leak-path count and compactness matter more than access.

What pressure and temperature ratings apply to each end type?

The end type does not set the rating — the specification does. Flanges are rated under ASME B16.5 (to Class 2500) and B16.47; socket weld fittings under ASME B16.11 (typically Class 3000 or 6000); butt weld ends under ASME B16.25 are used across the full pressure and temperature range, including the most severe services.

Can socket weld valves be used on large-diameter pipes?

No. Socket weld ends are intended for small bore only — commonly DN15 to DN50, occasionally DN65. Beyond that the socket becomes impractical to form and inspect, and butt weld or flanged ends are specified instead.

Which end connection is easiest to inspect and maintain?

Flanged ends are by far the easiest: the joint is broken by removing bolts, the valve lifted out, and a new gasket fitted — no hot work. Welded ends require cutting for removal, so they are chosen where the joint is meant to be permanent.

Are welded end connections permitted in flammable or toxic service?

Yes, and they are often preferred because they remove bolted gasket leak paths. The condition is that the weld is made under a qualified procedure (WPS/PQR) and examined by RT, PT or MT per the applicable piping code such as ASME B31.3. Properly executed, welded joints are the safer choice for hazardous service.

How do I specify the end connection in a purchase order?

State the end type, the governing standard (ASME B16.25 for butt weld, B16.11 for socket weld, B16.5 for flanges), the pressure class, the facing type (raised face or ring-type joint), and whether you need full or reduced bore. Including these on the Valve Data Sheet prevents costly mismatches at site.

Related Resources

• What is the difference between API and DIN in valves?
• Sedelon Gate Valves (API 600)
• Sedelon Ball Valves (API / DIN)

In short, the right valve end connection follows your line conditions, not convention: specify butt weld ends for permanent, high-pressure, large-diameter joints; socket weld ends for small-bore utility and instrument lines; and flanged ends where serviceability drives the design. Anchor every choice to the governing standard — ASME B16.5, B16.11, B16.25 and your plant piping code — and to a realistic maintenance plan. Sedelon has supplied API, CE, ISO 9001 and TS-certified valves to global pipeline projects since 1998; explore our valve catalog or talk to our engineering team to match the correct end connection to your specification.
