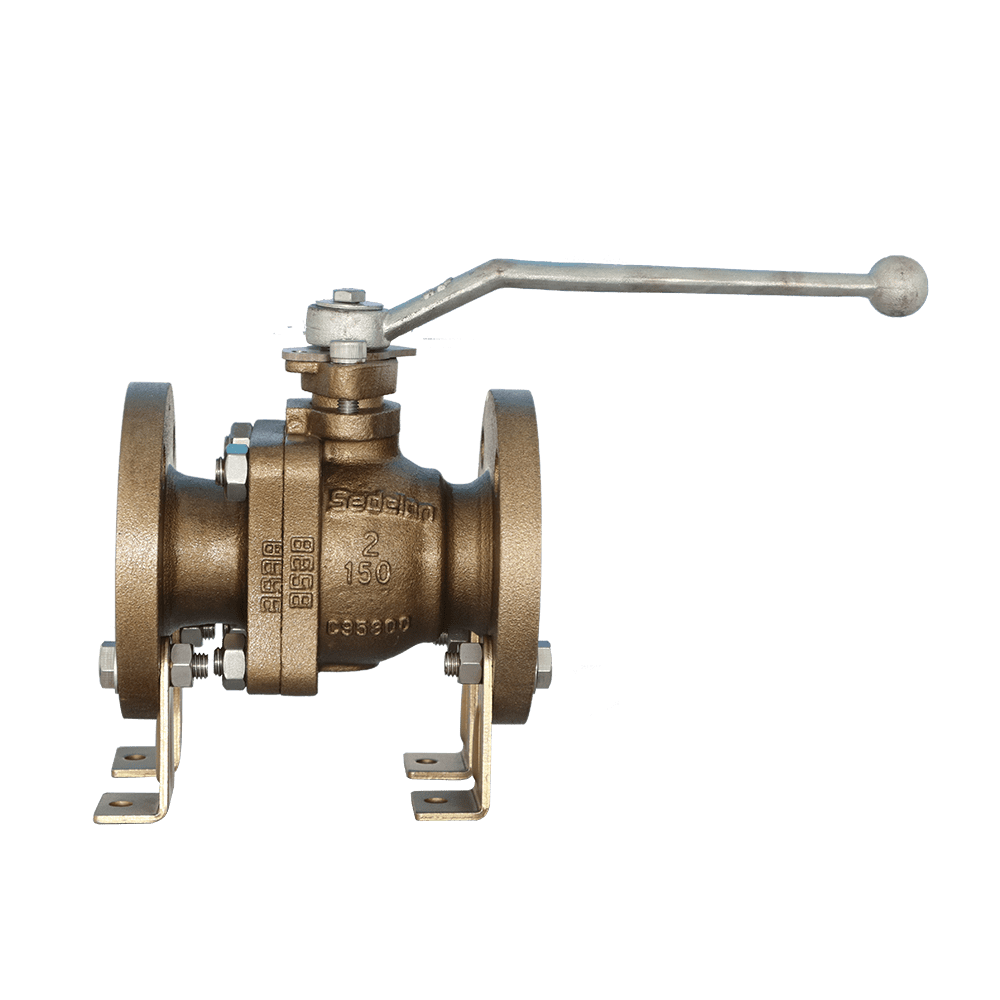

Bronze Ball Valve

Bronze ball valves are the standard choice for seawater, desalination, marine, and offshore engineering pipelines; however, “bronze” is not a single grade—different copper alloys, such as C95800, C95500, C95200, C95300, and C95600, exhibit significant differences in strength, hardness, and corrosion resistance mechanisms. This series is designed and manufactured in accordance with API 6D, covering NPS 2″–24″ and Class 150–900. It includes both floating-ball and fixed-ball configurations, with end connections available as RF/RTJ flanges or butt-welded joints. Each valve is pressure-tested in accordance with API 598.

Product Description

Bronze outperforms stainless steel in seawater for two reasons that few metals match together: copper ions suppress marine growth such as barnacles and mussels so the valve does not seize with fouling, and bronze sits close enough to carbon steel in the galvanic series to share one cathodic protection system without accelerating pipe corrosion, neither of which duplex or super duplex can guarantee.

The most common selection error is treating bronze as a single material. In slow or stagnant seawater high-aluminium grades suffer de-aluminification, in which aluminium leaches out leaving porous metal that looks sound until it weeps; in fast sand-laden flow a soft grade erodes at the seat.

This series covers the full bronze grade set: nickel aluminium bronze C95800 for cavitation resistance, C95500 for harder abrasive duty, silicon aluminium bronze C95600 for slow sections prone to de-aluminification, and general-purpose C95200/C95300 for mild industrial media. Floating balls cover smaller sizes up to NPS 10 for simple, tight shut-off, while trunnion-mounted balls from NPS 12 up and in Class 600-900 carry the media thrust on upper and lower bearings to keep operating torque low.

Applications

1. Seawater desalination reverse osmosis systems and intake/discharge pipelines: C95600 is used for low-speed filters and subsea gates to resist aluminum leaching corrosion, while C95800 is used in flow sections such as pump outlets to resist cavitation.

2. Ship ballast, bilge, fire main, and subsea gate systems: Bronze resists both seawater corrosion and marine biofouling, ensuring valves remain fully open and do not fail due to biofouling buildup.

3. Seawater lifting, cooling, and fire protection pipelines for offshore platforms and FPSOs: Use C95800 for flowing seawater; switch to the higher-hardness C95500 for sand-laden conditions.

4. Seawater flue gas desulfurization systems: There is a high risk of pitting corrosion in aerated, weakly acidic seawater; the grade must be verified based on flow velocity.

5. Large-diameter seawater transmission and distribution pipelines (up to NPS 24): Fixed-ball design with controllable operating torque, supporting large-diameter flanged or butt-welded installations.

Selection Guide

Material selection:Bronze ball valves are suitable for water, marine and general utility applications where corrosion resistance and reliability are required. Aluminium bronze grades such as C95800 are preferred for seawater, desalination and offshore service due to their improved resistance to corrosion and erosion.

Seat and service selection:Select seat materials according to medium temperature, pressure and sealing requirements. PTFE seats are commonly used for clean fluids and general isolation service, while special sealing materials are considered for higher temperature or chemically aggressive media.

Application requirements:For piping systems requiring frequent maintenance, select suitable end connections based on installation conditions. Marine, chemical and critical applications should specify material certification and inspection requirements according to project standards.

Project Case

At PEMEX offshore platforms in Mexico’s Ku-Maloob-Zaap oil field, carbon steel ball valves installed in seawater firefighting systems suffered severe corrosion and stem seizure under high-salinity marine conditions. Flowork supplied NPS 1/2–2, Class 150 bronze ball valves featuring ASTM B148 C95800 nickel aluminum bronze bodies, full-bore designs, RPTFE seats, and Inconel X-750 spring-loaded valve stems. The valves were certified according to PEMEX NOM-015 requirements and tested under API 598 procedures. Since commissioning in 2021, the valves have operated for four years without seizure, ensuring reliable firefighting system availability during annual inspections..

FAQ

Q: How do I choose between the bronze grades listed here?

A: By velocity and sand loading. Slow or stagnant seawater takes C95600 for de-aluminification resistance, moving seawater takes C95800 for cavitation resistance, and sand-laden or high-velocity duty takes the harder C95500. General industrial media take C95200 or C95300.

Q: What is the maximum temperature for a bronze ball valve?

A: Bronze is normally rated to about 250-300 °C, with silicon aluminium bronze C95600 at roughly 250 °C. Above that range strength falls quickly and carbon or alloy steel should be used. Sulphides such as H2S accelerate de-aluminification in aluminium bronze and are prohibited.

Q: Where is the size boundary between floating and trunnion balls?

A: Floating balls extend to NPS 10 in Class 150 and NPS 8 in Class 300; trunnion bodies run to NPS 24 in Class 900. Higher-class bronze ball valves are reduced-bore, so verify the bore when sizing.

Q: What is the difference between bronze and brass?

A: They are separate copper alloy families with different failure modes: brass contains zinc and suffers dezincification in chlorinated warm water and seawater, leaving porous copper and making it unsuitable for continuous seawater duty; bronze contains little or no zinc, though high-aluminium grades can de-aluminify in slow seawater.

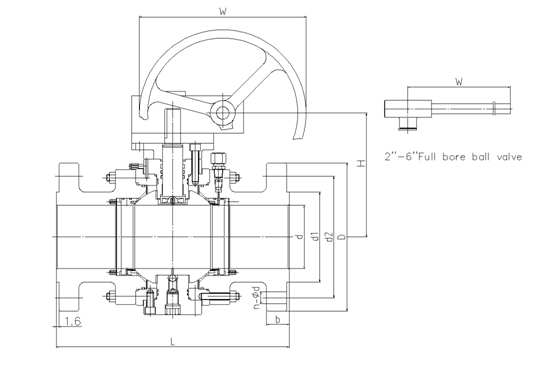

Class150  BronzeFloating  Ball  Valve





NPS

in

2

2 1/2

3

4

5

6

8

10

d

mm

51

64

76

102

127

152

203

254

L(RF)

mm

178

190

203

229

356

394

457

533

d1

mm

92

105

127

157

186

216

270

324

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

D

mm

152

178

190

229

254

279

343

406

b

mm

16

18

19

24

24

26

29

31

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

H

mm

110

130

150

180

220

270

340

350

W

mm

200

290

290

360

600

800

1000

1200

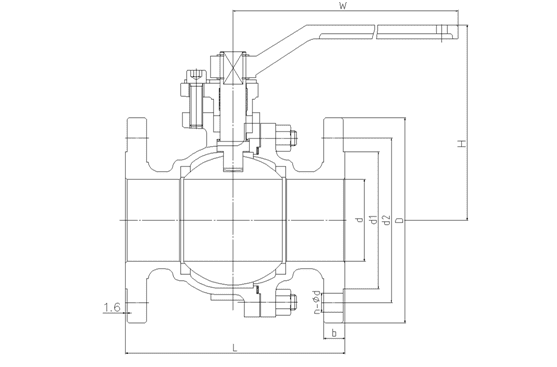

Class300 BronzeFloating  Ball  Valve



NPS

in

2

2 1/2

3

4

5

6

8

d

mm

51

64

76

102

127

152

203

L(RF)

mm

216

241

283

305

381

403

502

d1

mm

92

105

127

157

186

216

270

d2

mm

127

149

168.5

200

235

270

330

D

mm

165

190

210

254

279

318

381

b

mm

23

26

29

32

35

37

42

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

H

mm

140

160

180

208

220

290

300

W

mm

200

290

290

360

600

800

1000

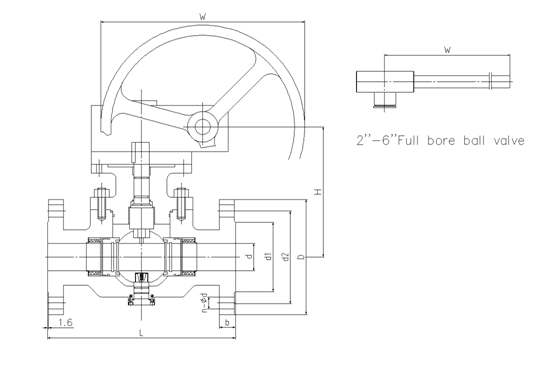

Class150  BronzeFixed  Ball  Valve

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 438 489 591
L(RF) mm 178 190 203 229 394 457 533 610 686 762 864 914 1016
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 120.5 139.5 152.5 190.5 241.5 298.5 362 432 476 540 578 635 749.5
D mm 152 178 190 229 279 343 406 483 533 597 635 699 813
b mm 16 18 19 24 26 29 31 32 35 37 40 43 48
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500

Class300 BronzeFixedBall  Valve

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500

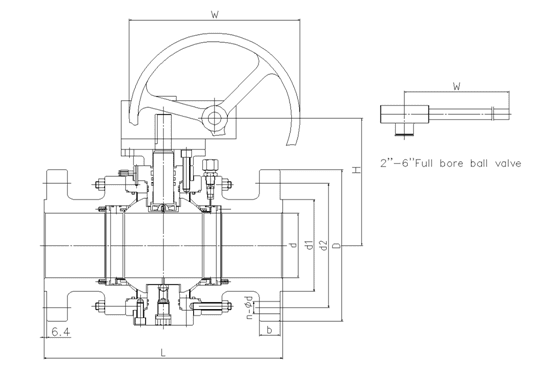

 Class600  BronzeFixed ball valve  Ball  Valve



NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 356 432 508 559 660 787 838 889 991 1092 1194 1397
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 1500 500 500 500 500 500 500 500 500

 Class900 BronzeFixed Ball  Valve

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 47 73 98 121 146 190 234 282 311 354 400 444 533
L(RF) mm 368 381 457 559 610 737 838 965 1029 1130 1219 1321 1549
L(RTJ) mm 371 384 460 562 613 740 841 968 1039 1140 1232 1334 1568
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 165 190.5 235 279.4 317.5 393.7 469.9 533.4 558.8 615.9 685.8 749.3 901.7
D mm 216 241 292 349 381 470 545 610 640 705 785 855 1040
b mm 38.5 38.5 44.5 51 56 64 70 79.5 86 89 102 108 140
n-Фd mm 8-26 8-26 8-32 8-35 12-32 12-39 16-39 20-39 20-42 20-45 20-51 20-54 20-67
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 500 500 500 500 500 500 500 500 500

Class150 BronzeForged  Ball  Valve





NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 438 489 591
L(RF) mm 178 190 203 229 394 457 533 610 686 762 864 914 1016
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 120.5 139.5 152.5 190.5 241.5 298.5 362 432 476 540 578 635 749.5
D mm 152 178 190 229 279 343 406 483 533 597 635 699 813
b mm 16 18 19 24 26 29 31 32 35 37 40 43 48
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500

Class300  BronzeForged  Ball  Valve

NPS in 2 2 1/2 3 4 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 403 502 568 648 762 838 914 991 1143
d1 mm 92 105 127 157 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 176 200 215 252 330 448 505 556 620 700 750 805 1110
W mm 350 400 400 500 1000 300 350 400 500 500 500 500 500

Class600  BronzeForged  Ball  Valve

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 356 432 508 559 660 787 838 889 991 1092 1194 1397
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 1500 500 500 500 500 500 500 500 500

Class900 BronzeForged  Ball  Valve

NPS in 2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 47 73 98 121 146 190 234 282 311 354 400 444 533
L(RF) mm 368 381 457 559 610 737 838 965 1029 1130 1219 1321 1549
L(RTJ) mm 371 384 460 562 613 740 841 968 1039 1140 1232 1334 1568
d1 mm 92 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 165 190.5 235 279.4 317.5 393.7 469.9 533.4 558.8 615.9 685.8 749.3 901.7
D mm 216 241 292 349 381 470 545 610 640 705 785 855 1040
b mm 38.5 38.5 44.5 51 56 64 70 79.5 86 89 102 108 140
n-Фd mm 8-26 8-26 8-32 8-35 12-32 12-39 16-39 20-39 20-42 20-45 20-51 20-54 20-67
H mm 192 279 315 320 323 381 518 568 665 730 795 825 973
W mm 600 1000 1500 1500 500 500 500 500 500 500 500 500 500

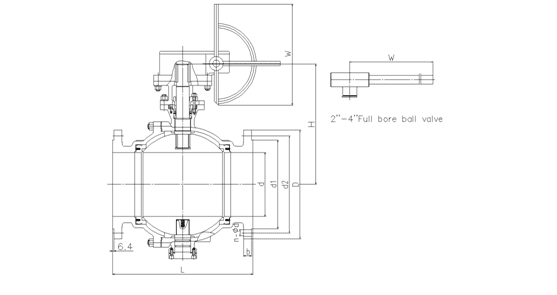

Class150   BronzeTop  Entry  Ball  Valve

NPS

in

6

8

10

12

14

16

18

20

24

d

mm

152

203

254

305

337

387

438

489

591

L(RF)

mm

394

457

533

610

686

762

864

914

1016

d1

mm

216

270

324

381

413

470

533

584

692

d2

mm

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

279

343

406

483

533

597

635

699

813

b

mm

26

29

31

32

35

37

40

43

48

n-Фd

mm

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

330

448

505

556

620

700

750

805

1110

W

mm

1000

300

350

400

500

500

500

500

500

Class300   BronzeTop  Entry  Ball  Valve

NPS

in

6

8

10

12

14

16

18

20

24

d

mm

152

203

254

305

337

387

432

483

584

L(RF)

mm

403

502

568

648

762

838

914

991

1143

d1

mm

216

270

324

381

413

470

533

584

692

d2

mm

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

318

381

445

521

584

648

711

775

914

b

mm

37

42

48

51

54

58

61

64

70

n-Фd

mm

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

330

448

505

556

620

700

750

805

1110

W

mm

1000

300

350

400

500

500

500

500

500
