Skip to content Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 602
Pressure Test：API 598
Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 602
Pressure Test：API 598
Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22

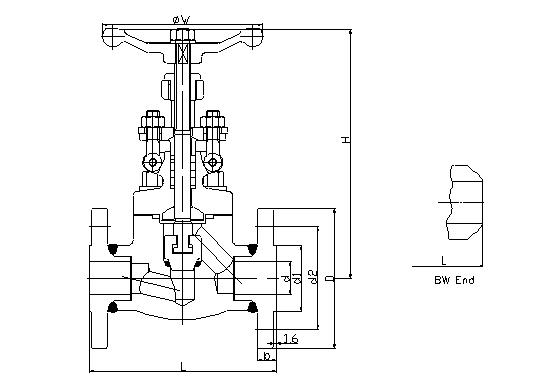

150Lb

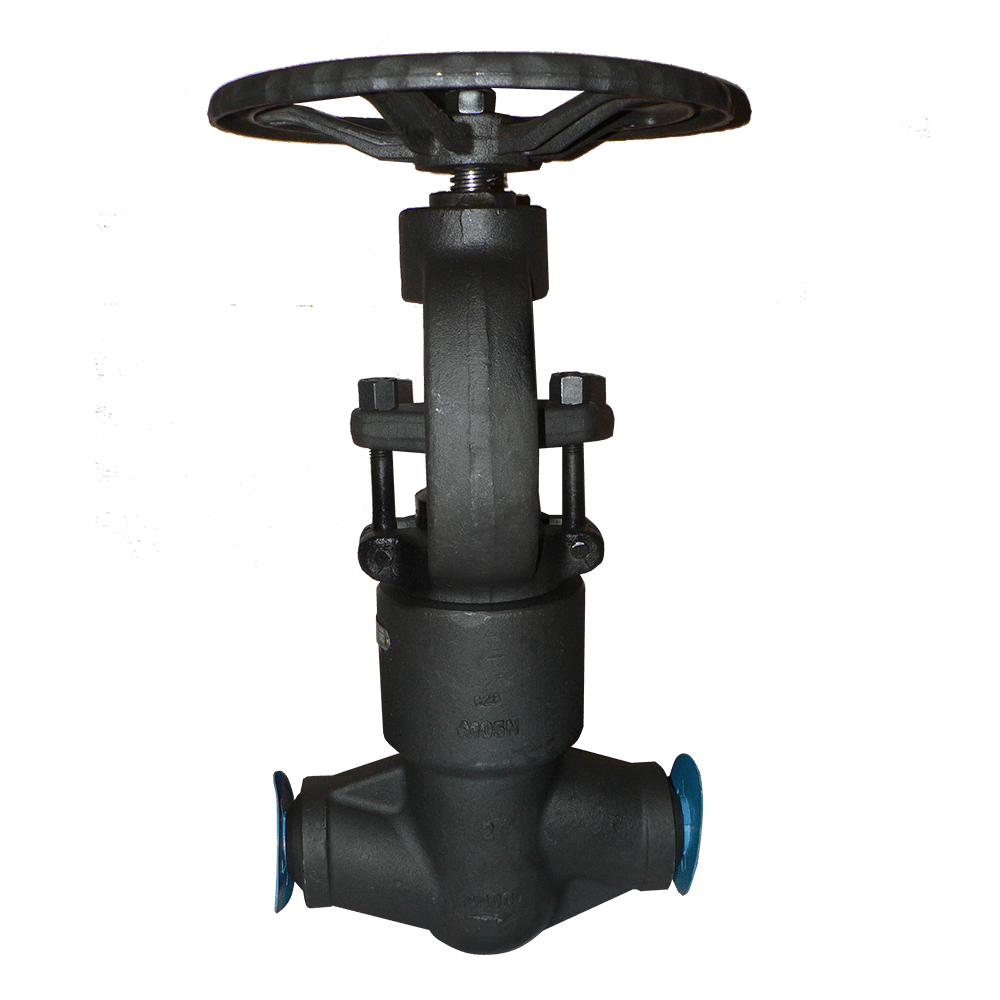

Forged steel globe valves
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| d | mm | 13 | 19 | 25 | 32 | 38 | 51 |
| L(RF) | mm | 108 | 117 | 127 | 140 | 165 | 203 |
| L(BW) | mm | 108 | 117 | 127 | 140 | 165 | 203 |
| d1 | mm | 35 | 43 | 51 | 64 | 73 | 92 |
| d2 | mm | 60.5 | 70 | 79.5 | 89 | 98.5 | 120.5 |
| D | mm | 89 | 98 | 108 | 117 | 127 | 152 |
| b | mm | 11 | 12 | 12 | 13 | 15 | 16 |
| n-Фd | mm | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 |
| H | mm | 180 | 190 | 215 | 235 | 258 | 330 |
| W | mm | 100 | 100 | 100 | 135 | 135 | 200 |

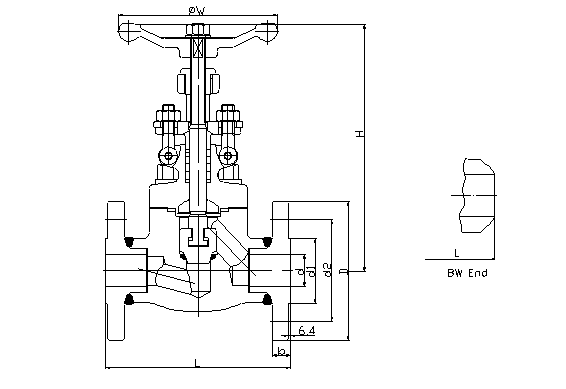

300Lb
Forged steel globe valves
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| d | mm | 13 | 19 | 25 | 32 | 38 | 51 |
| L(RF) | mm | 152 | 178 | 203 | 216 | 229 | 267 |
| L(BW) | mm | 152 | 178 | 203 | 216 | 229 | 267 |
| d1 | mm | 35 | 43 | 51 | 64 | 73 | 92 |
| d2 | mm | 66.5 | 82.5 | 89 | 98.5 | 114.5 | 127 |
| D | mm | 95 | 117 | 124 | 133 | 156 | 165 |
| b | mm | 15 | 16 | 18 | 19 | 21 | 23 |
| n-Фd | mm | 4-16 | 4-19 | 4-19 | 4-19 | 4-22 | 8-19 |
| H | mm | 185 | 195 | 220 | 240 | 260 | 385 |
| W | mm | 100 | 100 | 135 | 135 | 160 | 200 |
600Lb
Forged steel globe valves
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| d | mm | 13 | 19 | 25 | 32 | 38 | 51 |
| L(RF) | mm | 165 | 190 | 216 | 229 | 241 | 292 |
| L(BW) | mm | 165 | 190 | 216 | 229 | 241 | 292 |
| d1 | mm | 35 | 43 | 51 | 64 | 73 | 92 |
| d2 | mm | 66.5 | 82.5 | 89 | 98.5 | 114.5 | 127 |
| D | mm | 95 | 118 | 124 | 133 | 156 | 165 |
| b | mm | 15 | 16 | 18 | 21 | 23 | 26 |
| n-Фd | mm | 4-16 | 4-19 | 4-19 | 4-19 | 4-22 | 8-19 |
| H | mm | 198 | 215 | 245 | 306 | 400 | 420 |
| W | mm | 120 | 140 | 160 | 180 | 200 | 200 |
API Trim NO. Table
|
No |
Seat |
Gate、disc 、ball or body |
Stem |
No |
Seat |
Gate、disc 、ball or body |
Stem | |
| 01 | 13Cr | 13Cr | 13Cr | 31 | STELLITE | 321SS | 321SS | |
| 02 | 304SS | 304SS | 304SS | 32 | STELLITE | STELLITE | 321SS | |
| 03 | 310SS | 310SS | 310SS | 33 | 347SS | 347SS | 347SS | |
| 04 | HARD 13Cr | HARD 13Cr | 13Cr | 34 | STELLITE | 347SS | 347SS | |
| 05 | STELLITE | STELLITE | 13Cr | 35 | NICKEL ALLOY | 13Cr | 13Cr | |
| 06 | Cu-Ni | 13Cr | 13Cr | 36 | A105/PTFE | A105+ENP | A105+ENP | |
| 07 | 13Cr | HARD 13Cr | 13Cr | 37 | A105/PTFE | WCB+ENP | A105+ENP | |
| 08 | STELLITE | 13Cr | 13Cr | 38 | 13Cr/PTFE | 13Cr | 13Cr | |
| 09 | Cu-Ni | Cu-Ni | Cu-Ni | 39 | 304SS/PTFE | 304SS | 304SS | |
| 10 | 316SS | 316SS | 316SS | 40 | 316SS/PTFE | 316SS | 316SS | |
| 11 | Cu-Ni | STELLITE | Cu-Ni | 41 | A105/RPTFE | A105+ENP | A105+ENP | |
| 12 | STELLITE | 316SS | 316SS | 42 | A105/RPTFE | WCB+ENP | A105+ENP | |
| 13 | ALLOY 20 | ALLOY 20 | ALLOY 20 | 43 | 13Cr/RPTFE | 13Cr | 13Cr | |
| 14 | STELLITE | ALLOY 20 | ALLOY 20 | 44 | 304SS/RPTFE | 304SS | 304SS | |
| 15 | STELLITE | STELLITE | 304SS | 45 | 316SS/RPTFE | 316SS | 316SS | |
| 16 | STELLITE | STELLITE | 316SS | 46 | A105/NYLON | A105+ENP | A105+ENP | |
| 17 | STELLITE | STELLITE | 347SS | 47 | A105/NYLON | WCB+ENP | A105+ENP | |
| 18 | STELLITE | STELLITE | ALLOY 20 | 48 | A105/NYLON | 304SS | 304SS | |
| 19 | MONEL | MONEL | MONEL | 49 | A105/NYLON | 316SS | 316SS | |
| 20 | BRONZE | BRONZE | 13Cr | 50 | 13Cr/NYLON | 13Cr | 13Cr | |
| 21 | HASTELLOY B | HASTELLOY B | HASTELLOY B | 51 | 304SS/NYLON | 304SS | 304SS | |
| 22 |
| HASTELLOY C | HASTELLOY C | 52 | 316SS/NYLON | 316SS | 316SS | |
| 23 | STELLITE | 304SS | 304SS | 53 | A105/PEEK | A105+ENP | A105+ENP | |
| 24 | 304LSS | 304LSS | 304LSS | 54 | A105/PEEK | WCB+ENP | A105+ENP | |
| 25 | STELLITE | 304LSS | 304LSS | 55 | 13Cr/PEEK | 13Cr | 13Cr | |
| 26 | STELLITE | STELLITE | 304LSS | 56 | 304SS/PEEK | 304SS | 304SS | |
| 27 | 316LSS | 316LSS | 316LSS | 57 | 316SS/PEEK | 316SS | 316SS | |
| 28 | STELLITE | 316LSS | 316LSS |
|
|
|
|
|
| 29 | STELLITE | STELLITE | 316LSS |
|
|
| ||
| 30 | 321SS | 321SS | 321SS |
|
|
|
| |
Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 609
Pressure Test：API598
Materials：CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 6D
Pressure Test：API598
Materials：CF8、 CF8M、 CF3、 CF3M 、CD3MNWCuN、CW2M、Monel、CN7M、20#、Alloys、4A、5A、C95800、C95500,ect.
Nowadays, people pay much attention to environmental protection.
We Sedelon also take it into consideration.
Low Emission Globe valves /Low Leakage Globe valves can effectively prevent the medium leakage and emission, thus being good for the environment.
Equipped with Fugitive Emission Test Certificate ISO 15848-1:2006, Sedelon manufactures Fugitive Emission Globe valves in order to make a contribution to protecting the environment.
