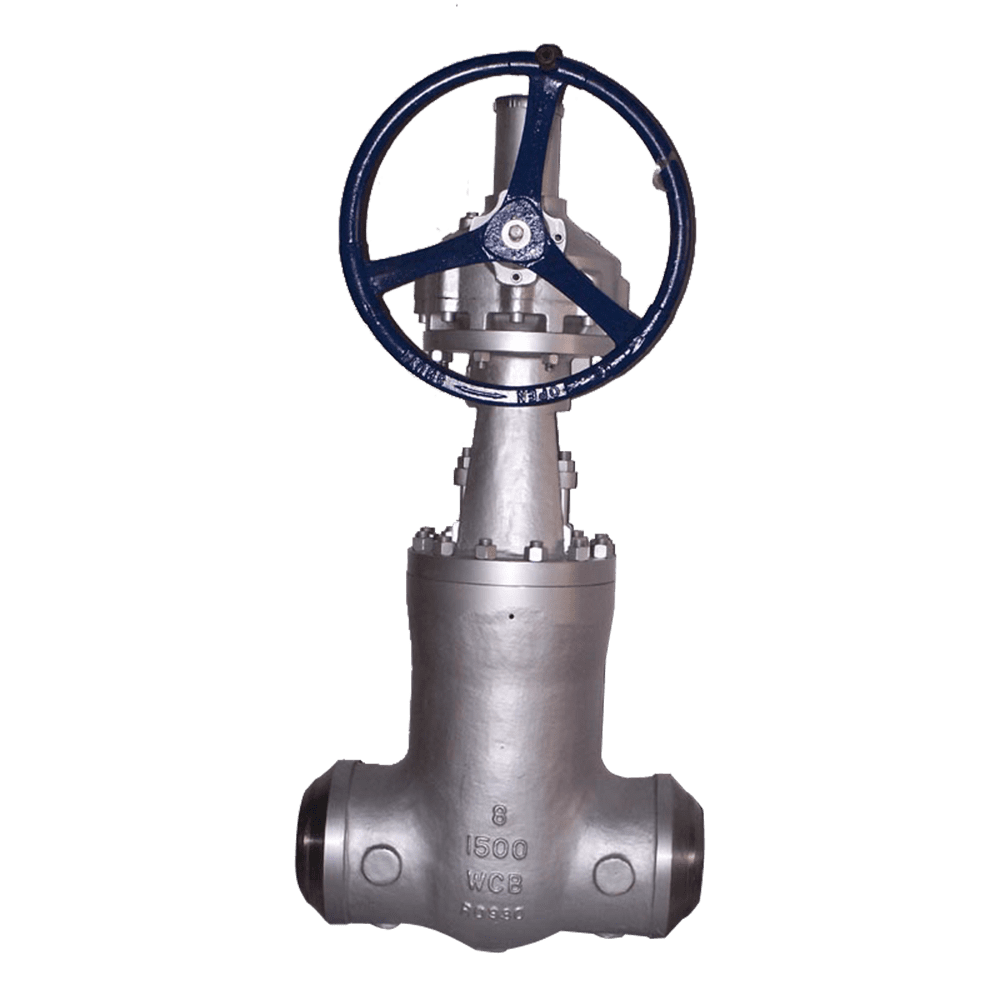

Pressure Seal Gate Valve

Pressure seal gate valves are designed for high-temperature, high-pressure pipelines in ultra-supercritical and supercritical power plants, particularly main steam and reheater steam systems. The bonnet uses a pressure-assisted self-sealing design in which increasing internal pressure enhances the sealing force. Unlike conventional bolted-bonnet valves, the design does not rely on bonnet bolting alone to contain the full internal pressure load.

Face-to-face dimensions comply with ANSI B16.10, flange dimensions with ANSI B16.5, and butt-welding ends with ANSI B16.25. Design and manufacture are in accordance with API 600, and pressure testing is performed in accordance with API 598. The product range covers NPS 2–16 and Class 1500–2500.

Product Description

Pressure Seal Bonnet: Operating Principle

Conventional bolted-bonnet gate valves rely on a set of bolts to compress a gasket between the bonnet and the valve body. This arrangement is generally adequate at moderate temperatures and under stable pressure conditions. However, in main steam pipelines operating at Class 2500 and 600°C, frequent thermal cycling caused by load-following operation can create a serious sealing challenge.

The valve body and bonnet bolts expand at different rates, potentially resulting in a loss of bolt preload. As the gasket compression decreases, high-temperature steam may leak through the bonnet joint. Retightening can only be performed after shutdown and cooling, often requiring several hours and exposing maintenance personnel to burn hazards.

Pressure seal gate valves address this issue through a different sealing mechanism. Instead of relying primarily on bolting to compress the bonnet gasket, a metallic pressure seal ring is installed between the bonnet and the tapered sealing surface of the valve body. Internal pipeline pressure pushes the seal ring against the tapered surface from below. As pressure increases, the contact force increases, enhancing the seal through a self-energizing effect.

The bolts provide initial preload and positioning rather than carrying the entire internal pressure load. Consequently, bolt relaxation caused by thermal cycling is less likely to translate directly into external leakage at the bonnet joint.

Pressure Seal Integrity and Material Selection

The pressure seal mechanism requires careful handling and precise assembly. Scratches, deformation, or damage to the seal ring or tapered sealing surfaces can compromise the self-energizing effect and cause external leakage. All sealing components must therefore be kept clean and protected from impact during installation.

Bonnet and body materials must retain adequate strength and metallurgical stability at elevated temperatures. For main steam service, forged martensitic heat-resistant steels such as F91 are commonly specified.

These valves are often equipped with a rising stem, a flexible wedge gate, and Stellite hardfaced sealing surfaces. Butt-weld ends are commonly used in high-temperature, high-pressure pipelines to minimize external leakage points and accommodate demanding thermal stress conditions.

Gate valves are intended for fully open or fully closed service and should not be used for throttling. Each valve is designed in accordance with API 600 and tested in accordance with API 598.

Applications

Main steam and reheater steam lines in ultra-supercritical and supercritical power plants: The pressure seal bonnet is suited to demanding thermal cycling conditions.

High-temperature, high-pressure steam headers and bypass lines: Forged heat-resistant steel materials such as F91 provide the required high-temperature strength.

Power plant systems subject to frequent load cycling: The self-energizing bonnet seal reduces the risk of external leakage associated with bolt preload relaxation.

High-pressure service at Class 1500 and above: The sealing force increases with internal pressure, supporting reliable bonnet sealing under demanding operating conditions.

Critical service locations with limited maintenance windows: Reduced reliance on routine bonnet bolt retightening helps minimize maintenance requirements.

4. Selection Guidelines

Pressure Rating and Operating Conditions: Prioritize pressure seal bonnet valves for Class 1500 and above where high temperatures and frequent thermal cycling are expected. Bolted-bonnet designs may remain suitable for lower-pressure and moderate-temperature applications.

Body Material: Select F91 or another suitable martensitic heat-resistant steel for main steam and reheater steam service. For sour or corrosive media, select chromium-molybdenum steel or stainless steel according to the process conditions and applicable material requirements.

End Connections: Butt-weld ends are generally preferred for high-temperature, high-pressure service to reduce potential external leakage points and accommodate thermal stresses.

Sealing Surfaces: Specify Stellite hardfacing for applications involving significant erosion or frequent operation. Select the sealing materials and hardness combination according to the process medium and operating temperature.

Installation and Cleanliness: Thoroughly clean and inspect the pressure seal ring and tapered sealing surfaces before assembly. Scratches, dents, or contamination can compromise self-sealing performance.

Service Limitations: Gate valves are intended for on/off isolation only. For flow regulation, install a dedicated control valve or consider a globe valve where appropriate.

5. Project Case Study

Customer: FPLProject: Main Steam and Reheater Steam Systems at Turkey Point Power Plant, Turkey

The project involved main steam and reheater steam systems in an ultra-supercritical power generation unit operating at Class 2500 and 600°C. The original bolted-bonnet gate valves experienced bolt preload relaxation and external high-temperature steam leakage under frequent thermal cycling caused by load-following operation. Each shutdown for bolt retightening required approximately 8 hours and introduced a risk of burn injuries to maintenance personnel.

Flowork supplied 14 NPS 8–16, Class 2500 pressure seal gate valves featuring A182 F91 forged martensitic heat-resistant steel bodies, pressure-assisted self-sealing bonnets, rising-stem flexible wedge gates, Stellite 6 hardfaced sealing surfaces, and butt-weld ends.

The valves were designed in accordance with ASME B16.34 and underwent shell and sealing tests in accordance with API 598, witnessed on site by the FPL project quality control department.

Since commissioning in April 2022, the valves have operated continuously for 3 years without bonnet leakage. Shutdowns for bolt retightening have been eliminated, reducing the associated maintenance time from 8 hours per occurrence to zero. Annual unit availability has increased to 99.2%.

6. Frequently Asked Questions (FAQs)

Q1: Do pressure seal bonnets require bolt retightening at high temperatures?

Generally, no. The pressure seal design relies on internal pressure to enhance sealing, while the bolts primarily provide initial preload and positioning. If external leakage occurs, the valve should be addressed after shutdown and cooling in accordance with the approved maintenance procedure. Never attempt to tighten bonnet bolts under pressure.

Q2: What happens if the pressure seal ring or tapered sealing surface is scratched?

Damage can compromise the self-energizing sealing effect and result in external leakage. Keep all sealing components clean and protected during installation. Replace a damaged seal ring and inspect the mating surfaces before reassembly.

Q3: Can this valve be used to regulate steam flow?

No. Gate valves are intended for fully open or fully closed service. Operating a gate valve partially open can expose the sealing surfaces to high-velocity steam erosion. A dedicated control valve should be used for flow regulation.

Q4: What should I do if slight steam leakage occurs around the bonnet during operation?

Record and monitor the leakage while arranging an appropriate shutdown for inspection and repair. Do not attempt to tighten bonnet bolts under pressure, as this creates a risk of severe burns and potential valve failure.

Class1500 Pressure Seal Gate Valve




NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16
d mm 47 57 70 92 111 136 178 222 263 289 330
L(RF) mm 368 419 470 546 673 705 832 991 1130 1257 1384
L(BW) mm 368 419 470 546 673 705 832 991 1130 1257 1384
L(RTJ) mm 371 422 473 549 676 711 841 1000 1146 1276 1407
d1 mm 92 105 127 157 186 216 270 324 381 413 470
d2 mm 165 190.5 203.2 241.3 292.1 317.5 393.7 482.6 571.5 635 704.8
D mm 216 244 267 311 375 394 483 585 675 750 825
b mm 38.5 41.5 48 54 73.5 83 92.9 108 124 133.5 146.5
n-Фd mm 8-26 8-29 8-32 8-35 8-42 12-39 12-45 12-51 16-54 16-61 16-67
H mm 510 560 620 728 870 1000 1130 1360
H1 mm     670 770 920 1070 1180 1410 1620 2020 2180
W mm 280 300 350 400 450 500 750 900
W1 mm     310 310 310 460 460 600 600 600 600

Class2500 Pressure Seal Gate Valve

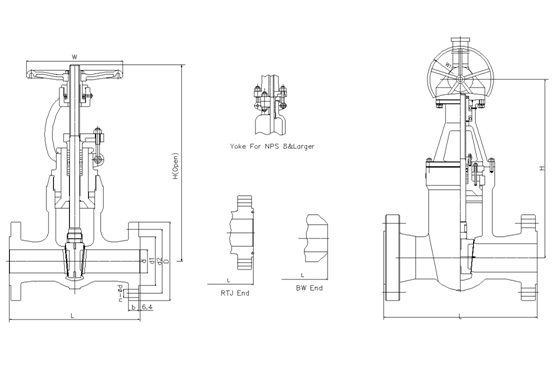

Pressure seal gate valve end-connection drawing showing butt-weld and RTJ joint dimensions

NPS in 2 2 1/2 3 4 5 6 8 10 12
d mm 38 47 57 73 92 111 146 184 219
L(RF) mm 451 508 578 673 794 914 1022 1270 1422
L(BW) mm 451 508 578 673 794 914 1022 1270 1422
L(RTJ) mm 454 514 584 683 807 927 1038 1292 1445
d1 mm 92 105 127 157 186 216 270 324 381
d2 mm 171.4 196.8 228.6 273 323.8 368.3 438.1 539.7 619.1
D mm 235 267 305 356 419 483 550 675 760
b mm 51 57.5 67 76.5 92.5 108 127 165.5 184.5
n-Фd mm 8-29 8-32 8-35 8-42 8-48 8-54 12-54 12-67 12-74
H mm 530 580 650 750 900 1040 1150 1400
H1 mm 580 630 700 800 960 1100 1200 1460 1660
W mm 280 300 350 400 500 600 750 900
W1 mm 310 310 310 310 460 460 460 600 600

API Trim NO. Table



No
of internal parts



Seat
ring or body



Gate、disc 、ball or body



Stem



No
of internal parts



Seat
ring or body



Gate、disc 、ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22



HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS









Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
