Globe Valve

1.Available with plug disc, needle disc, parabolic disc, ball type disc, etc.
2.Available in structure of Y type, angle type, straight type, etc.
3.Simple structure, easy to repair and replace
4.Regulating flow in the pipeline

  1. Home
  2. »
  3. Globe Valve

Categories

Ball Valve
Gate Valve
Bronze Valve
Check Valve
Globe Valve
Butterfly Valve
Plug Valve
Strainer

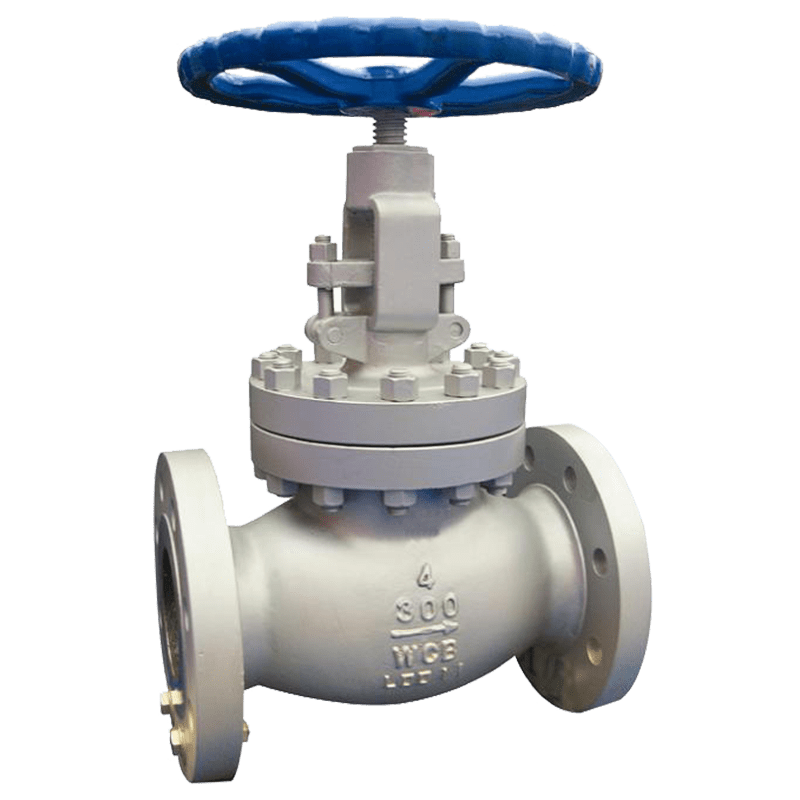

Globe Valve

Sedelon® Globe valves are designed for the control of fluid flow, including opening, closing, and throttling. These valves come in various materials such as Forged Steel, Stainless Steel, Carbon Steel, and special alloys like Hastelloy and Duplex Stainless Steel to handle corrosive environments. The valves can be operated manually by hand wheels, through gears for larger sizes, or by actuators (electric, pneumatic, or hydraulic).
Sedelon® offers Globe valves with different connections like flanged, screwed, and welded, and also provides specialized types such as high-temperature, cryogenic, and pressure-seal Globe valves.
Widely used across industries handling fluids in high and low temperature environments, corrosive conditions, and where leakage prevention is critical, including LNG and LPG industries.

  • Constructed from a wide range of metals and alloys to handle various environments.
  • Available in manual, gear-operated, or actuator-equipped versions for ease of operation.
  • Supports different connection types like flanged, screwed, welded, and socket weld.
  • Designed for high temperature (up to 700°C) and cryogenic applications (down to -110°C).
  • Specialized designs for low-emission, high-pressure, and corrosive media.
  • Can handle forward-only fluid flow, ensuring directional installation.
  • API 602 (Forged Steel Globe valves)
  • API 603 (Stainless Steel Globe valves)
  • Fugitive Emission Test Certificate ISO 15848-1:2006

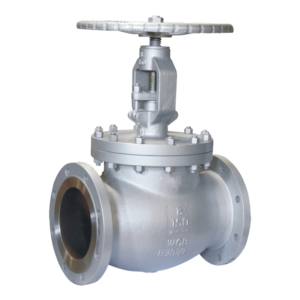

Flanged Globe Valve

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

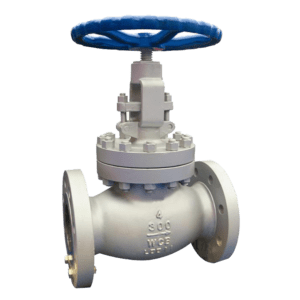

API 623 Steel Globe Valves

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

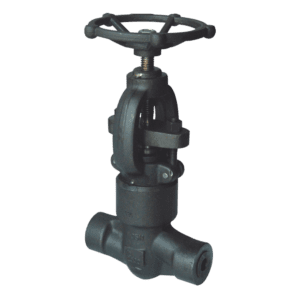

Socket Weld Forged Globe Valve

Face to Face Dimensions: MFG’S

Socket welded Standard Dimension :ANSI B16.11

Screw ends Standard Dimensions：ANSI B1.20.1

Design and Manufacture：API 602

Pressure Test：API 598

Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22

Learn More

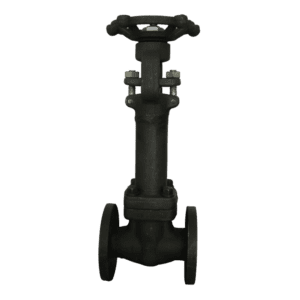

Flanged End Forged Globe Valve

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：API 602

Pressure Test：API 598

Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22

Learn More

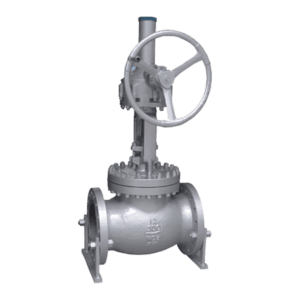

Gear Operated Globe valve

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

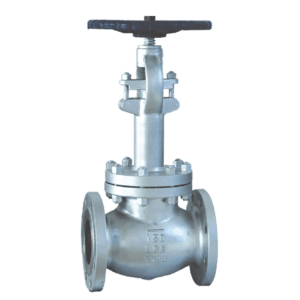

Low Temperature Globe Valves

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

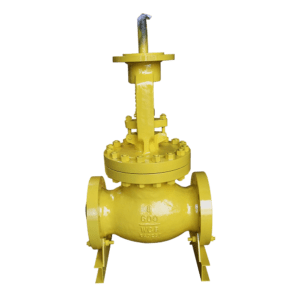

High Temperature Globe Valves

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials: WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

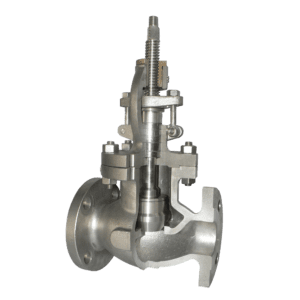

Plug Type Globe Valve

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Learn More

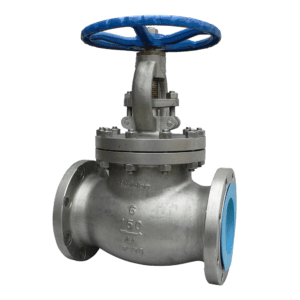

Special Alloy Globe Valve

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：CN7M、Monel、 20# Alloys、4A、5A、C95800、C95500,ect.

Learn More

Why Choose Sedelon as Industrial Valves Vanufacturer?

Sedelon is your reliable industrial valve manufacturer. We have a trusted supply network as well as we offer the latest production and assembly machinery. Here are the reasons why you should choose us as your industrial valve supplier.

Variety

Sedelon supports many industrial applications because we manufacture an extensive range of industrial valves，including butterfly, ball, check, gate, globe, plug, and actuated valves.

Custom Services

We offer tailor-made industrial valves to ensure that our product fits your application standards and demand.Sedelon is lSO, APl, MSS and ASME compliant to guarantee you the highest product quality.

Safety

Our industrial valves and services comply with international standards and specifications to make sure that we only produce the best and highest quality products and services to our clients.

Fast shipping

As a business partner, Sedelon makes sure that we commit to our clients’ requested deadline because we very much understand the importance of adhering to the timeline required.

Frequently Asked Questions

1、Materia
2、After Sales
3、Design
4、Standard
5、Production capability
6、Others
What type of material can you supply for globe valves?
WCB, WC6, WC9, CF8, CF8M, CF3, CF3M, F304, F316, CN7M, LC1, LC2, LC3, LCB, LCC, Monel, 20# Alloys, 4A, 5A, C95800, C95500, etc.
Do you have PMI/Spectrometer to verify the chemical content of material?
Yes, we have portable PMI, and our foundry has a Spectrometer too.
What are your disc materials for globe valves?
Our discs are forged, typically A105, LF2, F304, F316, F51, etc.
What is the hardness of your stem material for globe valves?
Our stems are specially hardened to prevent galling. Different materials have different hardness levels, and we have testers for verification.
How long is the warranty period for globe valves?
Our warranty is 12 months after the valves leave the factory.
Can you provide the operation and maintenance manual?
Yes, we can provide it.
Do you have any requirements for payment terms?
Yes, we prefer payment by T/T.
Can you provide ITP?
Yes, after receiving the order, we can provide the ITP.
How do you ship?
By sea, air, or express.
Do you have cryogenic globe valves?
Yes, we have them and can provide cryogenic treatment and testing if required.
What connections are available for globe valves?
Butt weld, flange end, socket weld, NPT thread, etc.
Do you supply fugitive emission globe valves?
Yes, we are certified with ISO 15848-1.
Can you produce angle globe valves?
Yes, we can.
Can you produce bellows seal globe valves?
Yes, we can produce.
Can you supply Y type globe valves?
Yes, we can supply.
Is the seat of globe valve renewable?
Generally, the seat is integral with the body, but it can be customized according to your requirements.
What are the disc types of globe valves?
Plug type, ball type, swivel type, needle type, parabolic type, etc.
What are the types of bonnets for globe valves?
Bolted bonnet, welded bonnet, pressure self-sealing bonnet, union bonnet, thread bonnet, etc.
What’s your test standard for globe valves?
EN12266/DIN3230, API 598, etc.
What’s your design standard for globe valves?
BS1873, API 623, API 602, etc.
Do you have a fugitive emission certificate?
Yes, we have the ISO 15848-1 certificate.
What fire safe certificates do you have?
We have API 607 and API 6FA certificates.
What’s your size range for globe valves?
From 1/2” to 24”.
What pressure rating of globe valve can you offer?
From 150LB to 2500LB.
Do you have stocks of globe valves?
Yes, we stock sizes from 1/2” to 12” with pressure ratings from 150# to 900# in carbon steel and stainless steel.
What is your delivery time?
5-10 working days for in-stock items, and 30-35 working days for new production, depending on size, pressure, material, and quantity.
Can you perform NDT?
Yes, we have professional and accredited operators.
Can you provide samples?
Yes, you can contact us for samples.
Can globe valves be installed vertically?
It is usually not recommended to install them vertically.
Can you provide catalogs and drawings?
Yes, we can provide technical support documents, including catalogs and drawings.
Can you provide a 3.1 certificate?
Yes, we can provide the Mill Test Certificate 3.1.
Can you provide a certificate of origin?
Yes, we can.
Can the paint be customized?
Yes, we can customize the paint according to the client’s requirements.
