Skip to content Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.
Face to Face Dimensions: MFG’S
Socket welded Standard Dimension :ANSI B16.11
Screw ends Standard Dimensions：ANSI B1.20.1
Design and Manufacture：API 602
Pressure Test：API 598
Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22
Application
Face to Face Dimensions: MFG’S
Socket welded Standard Dimension :ANSI
B16.11
Screw ends Standard Dimensions：ANSI B1.20.1
Design and Manufacture：API 602
Pressure Test：API 598
Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22

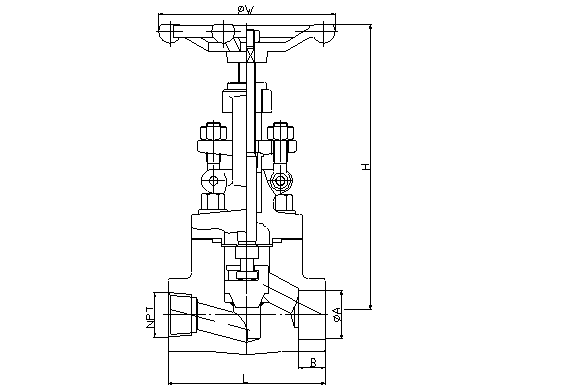

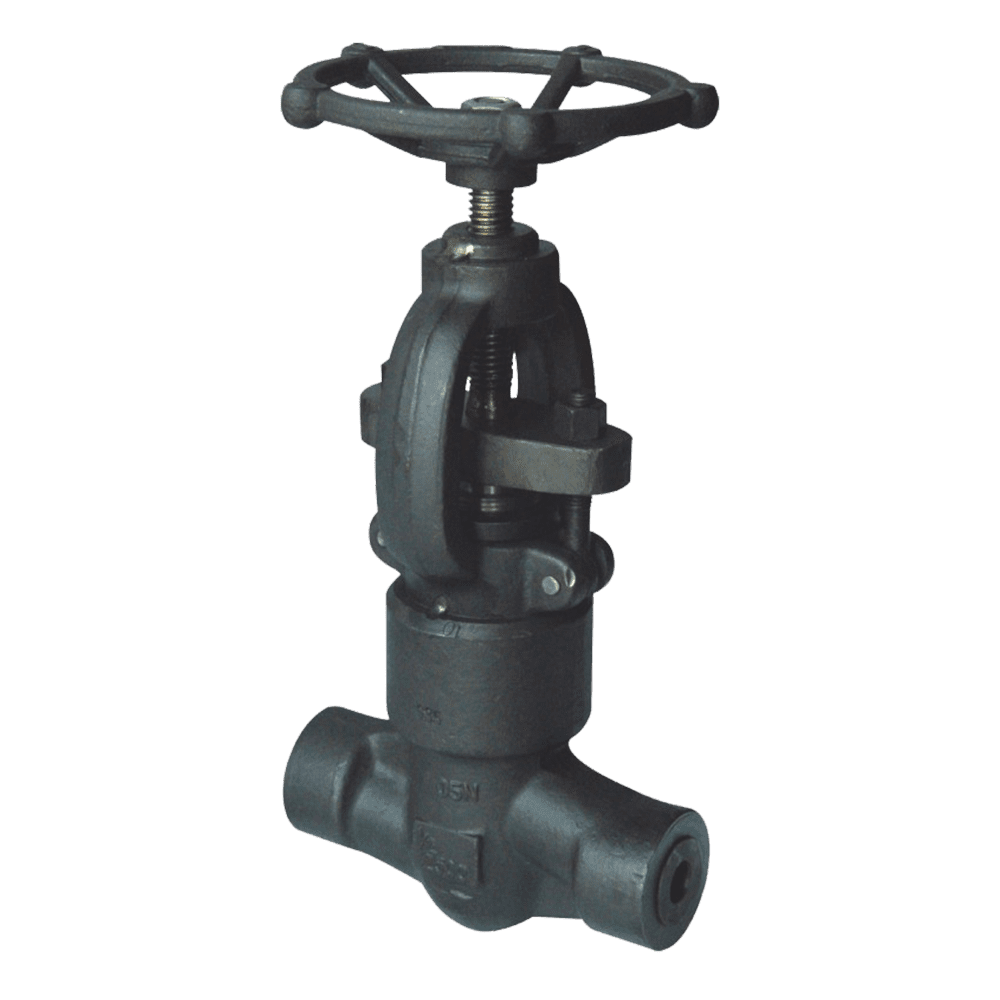

150LB~800lb Socket Weld Forged Globe Valve
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L(SW) | mm | 79 | 92 | 111 | 120 | 152 | 172 |
| L(NPT) | mm | 79 | 92 | 111 | 120 | 152 | 172 |
| NPT | mm | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| A | mm | 21.8 | 27.1 | 33.8 | 42.6 | 48.7 | 61.1 |
| B | mm | 9.6 | 12.7 | 12.7 | 12.7 | 12.7 | 15.9 |
| H | mm | 166 | 175 | 206 | 228 | 262 | 300 |
| W | mm | 100 | 100 | 125 | 160 | 160 | 180 |
900LB~2500lbSocket
Weld Forged Globe Valve
| NPS | in | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| L(SW) | mm | 111 | 111 | 120 | 152 | 172 | 220 |
| L(NPT) | mm | 111 | 111 | 120 | 152 | 172 | 220 |
| NPT | mm | 1/2 | 3/4 | 1 | 11/4 | 11/2 | 2 |
| A | mm | 21.8 | 27.1 | 33.8 | 42.6 | 48.7 | 61.1 |
| B | mm | 9.6 | 12.7 | 12.7 | 12.7 | 12.7 | 15.9 |
| H | mm | 170 | 193 | 230 | 246 | 283 | 325 |
| W | mm | 125 | 125 | 160 | 160 | 180 | 200 |
API Trim NO.
Table
|
No |
Seat |
Gate、disc 、ball or body |
Stem |
No |
Seat |
Gate、disc 、ball or body |
Stem | |
| 01 | 13Cr | 13Cr | 13Cr | 31 | STELLITE | 321SS | 321SS | |
| 02 | 304SS | 304SS | 304SS | 32 | STELLITE | STELLITE | 321SS | |
| 03 | 310SS | 310SS | 310SS | 33 | 347SS | 347SS | 347SS | |
| 04 | HARD 13Cr | HARD 13Cr | 13Cr | 34 | STELLITE | 347SS | 347SS | |
| 05 | STELLITE | STELLITE | 13Cr | 35 | NICKEL ALLOY | 13Cr | 13Cr | |
| 06 | Cu-Ni | 13Cr | 13Cr | 36 | A105/PTFE | A105+ENP | A105+ENP | |
| 07 | 13Cr | HARD 13Cr | 13Cr | 37 | A105/PTFE | WCB+ENP | A105+ENP | |
| 08 | STELLITE | 13Cr | 13Cr | 38 | 13Cr/PTFE | 13Cr | 13Cr | |
| 09 | Cu-Ni | Cu-Ni | Cu-Ni | 39 | 304SS/PTFE | 304SS | 304SS | |
| 10 | 316SS | 316SS | 316SS | 40 | 316SS/PTFE | 316SS | 316SS | |
| 11 | Cu-Ni | STELLITE | Cu-Ni | 41 | A105/RPTFE | A105+ENP | A105+ENP | |
| 12 | STELLITE | 316SS | 316SS | 42 | A105/RPTFE | WCB+ENP | A105+ENP | |
| 13 | ALLOY 20 | ALLOY 20 | ALLOY 20 | 43 | 13Cr/RPTFE | 13Cr | 13Cr | |
| 14 | STELLITE | ALLOY 20 | ALLOY 20 | 44 | 304SS/RPTFE | 304SS | 304SS | |
| 15 | STELLITE | STELLITE | 304SS | 45 | 316SS/RPTFE | 316SS | 316SS | |
| 16 | STELLITE | STELLITE | 316SS | 46 | A105/NYLON | A105+ENP | A105+ENP | |
| 17 | STELLITE | STELLITE | 347SS | 47 | A105/NYLON | WCB+ENP | A105+ENP | |
| 18 | STELLITE | STELLITE | ALLOY 20 | 48 | A105/NYLON | 304SS | 304SS | |
| 19 | MONEL | MONEL | MONEL | 49 | A105/NYLON | 316SS | 316SS | |
| 20 | BRONZE | BRONZE | 13Cr | 50 | 13Cr/NYLON | 13Cr | 13Cr | |
| 21 | HASTELLOY B | HASTELLOY B | HASTELLOY B | 51 | 304SS/NYLON | 304SS | 304SS | |
| 22 |
| HASTELLOY C | HASTELLOY C | 52 | 316SS/NYLON | 316SS | 316SS | |
| 23 | STELLITE | 304SS | 304SS | 53 | A105/PEEK | A105+ENP | A105+ENP | |
| 24 | 304LSS | 304LSS | 304LSS | 54 | A105/PEEK | WCB+ENP | A105+ENP | |
| 25 | STELLITE | 304LSS | 304LSS | 55 | 13Cr/PEEK | 13Cr | 13Cr | |
| 26 | STELLITE | STELLITE | 304LSS | 56 | 304SS/PEEK | 304SS | 304SS | |
| 27 | 316LSS | 316LSS | 316LSS | 57 | 316SS/PEEK | 316SS | 316SS | |
| 28 | STELLITE | 316LSS | 316LSS |
|
|
|
|
|
| 29 | STELLITE | STELLITE | 316LSS |
|
|
| ||
| 30 | 321SS | 321SS | 321SS |
|
|
|
| |
Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
Materials：
WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：BS1873
Pressure Test：API598
Materials：WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.
Materials：
WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800
