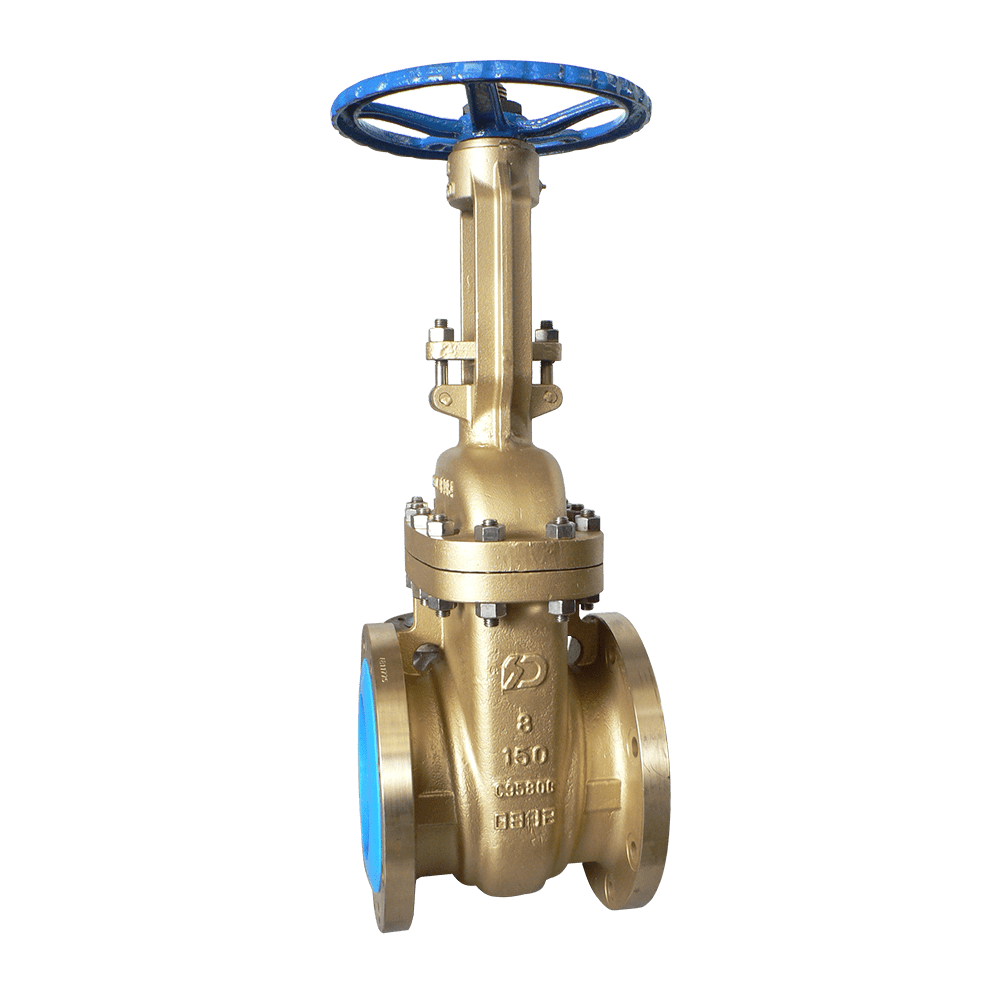

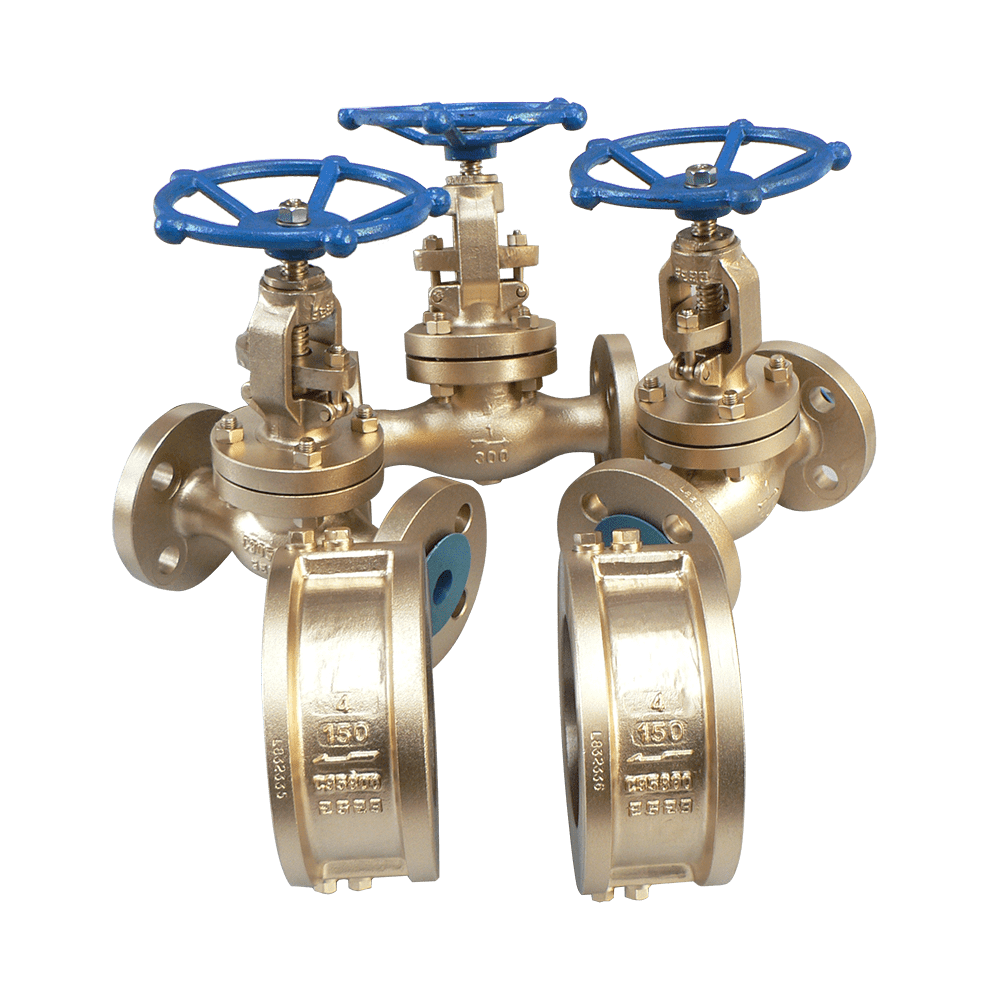

API600 Bronze Valves

“API 600 bronze valves” refers to bronze valves whose dimensions and pressure boundaries follow the American standards system: face-to-face per ANSI B16.10, flanges per ANSI B16.5, butt-weld ends per ANSI B16.25, pressure ratings per Class 150–900, sizes NPS 2″–24″, and pressure testing per API 598. It should be noted that API 600 itself is a cast steel gate valve standard, and bronze is not within its material scope—materials and pressure-temperature ratings are issued separately in accordance with copper alloy standards.

Product Description

API 600 is the design and manufacturing standard for cast steel gate valves, and its material list does not include copper alloys. Therefore, the accurate meaning of the term “API 600 bronze valve” is: dimensions and pressure boundaries follow the American standards system to which API 600 belongs (ANSI B16.10 face-to-face, ANSI B16.5 flanges, Class 150–900 pressure ratings), while materials and pressure-temperature ratings are issued separately in accordance with copper alloy standards—cast copper alloys per ASTM B148, and copper alloy flange dimensions per ASME B16.24. If overseas procurement documents require “compliance with API 600,” it is advisable to also specify the material standard to avoid mismatches during acceptance.

Copper alloys have two other hard boundaries: the temperature limit is approximately 250–300°C, above which strength drops rapidly, so Class 600 and 900 bronze valves are essentially low-temperature valves; sulfide- and ammonia-containing media are prohibited for aluminum bronze. Material grades are still selected by flow velocity: C95800 for flowing seawater, C95500 for sand-laden sections, C95600 for low-velocity sections, and C95200 or C95300 for general media.

Application Scenarios

  • Seawater desalination and intake/discharge systems designed to American standards: drawings specify NPS/Class, fitted with ANSI B16.5 flanges.
  • Isolation of saline and chlorine-containing process media in refining and petrochemical units: mainly Class 150–300.
  • Ship seawater mains and ballast systems: mainly Class 150–300, NPS 2″–12″.
  • Cooling water mains requiring brushing for cleaning: full-bore passage allows cleaning tools to pass through.
  • Coastal power plant circulating water systems: isolation points up to NPS 24″.
  • Replacement of valves on existing pipelines designed to API/ANSI systems: face-to-face and flange bolt hole spacing reproduced to the original standard.

Selection Guide

Meaning of the standard: Dimensions and pressure boundaries follow the American standards system (ANSI B16.10/B16.5, Class 150–900); materials and pressure-temperature ratings are issued separately in accordance with copper alloy standards. Both must be stated in procurement documents.

Dimension verification: Flanges per ANSI B16.5, face-to-face per ANSI B16.10, end connections available in RF, RTJ, or butt-weld (ANSI B16.25); the face-to-face dimensions of the three are not the same, so verify before replacement.

Material selection: C95800 for flowing seawater, C95500 for sand-laden sections, C95600 for low-velocity sections; C95200 or C95300 for general industrial media; C61900 for forgings; C63200 for heavy-duty parts.

Temperature and medium: Copper alloys are limited to approximately 250–300°C, and Class ratings are valid only within this temperature band; H₂S- and ammonia-containing media are prohibited; at high Class, the design is reduced-bore.

Optional add-ons: Gear operation, extended stem, API 607 fire-safe, EN 10204 3.1/3.2 material certificates, locking device.

FAQ

Q: Do bronze valves really comply with API 600?

The accurate statement is: dimensions and pressure boundaries follow the American standards system to which API 600 belongs, while API 600 itself is a cast steel gate valve standard whose material list does not include copper alloys. Therefore, materials and pressure-temperature ratings must be issued separately in accordance with copper alloy standards.

Q: Is Class 150 equal to PN16?

No. Class is an ASME B16.34 pressure rating and PN is a European nominal pressure; their temperature bases differ. Class 150 at ambient temperature corresponds to approximately PN20, and Class 300 to approximately PN50. They cannot be interchanged as PN16/PN40.

Q: What standards apply to pressure testing and leakage?

Shell and sealing tests are performed per API 598, with leakage judged against the allowable values specified in that standard for the corresponding size.

Project Case

In the Philippines, for the National Irrigation Administration’s irrigation pump station upgrade project in northern Luzon, 480 NPS 3–12, Class 150 API 600 bronze gate valves were procured, manufactured strictly to ASME B16.10 for face-to-face dimensions, directly replacing failed cast iron gate valves on existing American-standard pipelines without cutting or adjusting pipe sections. After three years in service: zero internal leakage and zero stem seizure. Water conveyance efficiency increased by 16%, and a follow-up order of 220 units of the same type was placed for the Phase II pump stations.

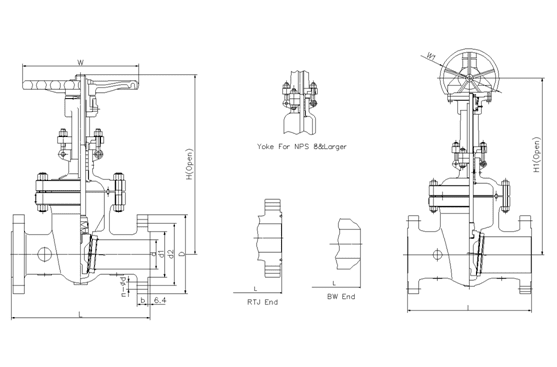

Class150API600 bronze valves



NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 127 152 203 254 305 337 387 438 489 591
L(RF) mm 178 190 203 229 254 267 292 330 356 381 406 432 457 508
L(BW) mm 216 241 283 305 381 403 419 457 502 572 610 660 711 813
L(RTJ) mm 191 203 216 241 267 279 305 343 368 394 419 445 470 521
d1 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 120.5 139.5 152.5 190.5 216 241.5 298.5 362 432 476 540 578 635 749.5
D mm 152 178 190 229 254 279 343 406 483 533 597 635 699 813
b mm 16 18 19 24 24 26 29 31 32 35 37 40 43 48
n-Фd mm 4-19 4-19 4-19 8-19 8-22 8-22 8-22 12-25 12-25 12-29 16-29 16-32 20-32 20-35
H mm 400 435 515 595 725 780 975 1150 1380 1545 1733 1915 2122 2520
H1 mm           820 1020 1200 1430 1580 1780 1990 2220 2600
W mm 200 200 250 280 280 300 350 400 450 500 500 500 600 600
W1 mm           310 310 310 310 310 460 460 460 460

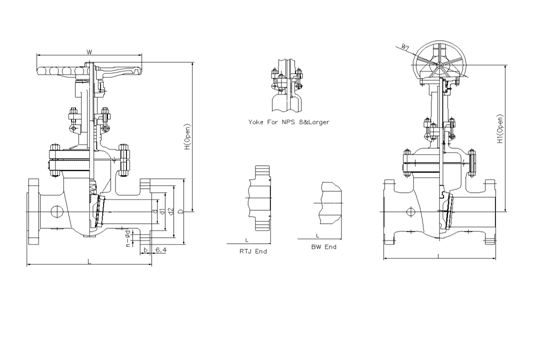

Class300 API600 bronze valves



NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 127 152 203 254 305 337 387 432 483 584
L(RF) mm 216 241 283 305 381 403 419 457 502 762 838 914 991 1143
L(BW) mm 216 241 283 305 381 403 419 457 502 762 838 914 991 1143
L(RTJ) mm 232 257 298 321 397 419 435 473 518 778 854 930 1010 1165
d1 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 200 235 270 330 387.5 451 514.5 571.5 628.5 686 813
D mm 165 190 210 254 279 318 381 445 521 584 648 711 775 914
b mm 23 26 29 32 35 37 42 48 51 54 58 61 64 70
n-Фd mm 8-19 8-22 8-22 8-22 8-22 12-22 12-25 16-29 16-32 20-32 20-35 24-35 24-35 24-41
H mm 420 446 537 619 722 806 1000 1240 1425 1585 1790 1960 2158 2576
H1 mm       650 750 835 1030 1280 1460 1620 1830 2000 2220 2620
W mm 200 200 250 280 300 350 400 450 500 500 600 650 750 900
W1 mm       310 310 310 310 310 310 460 460 460 460 600

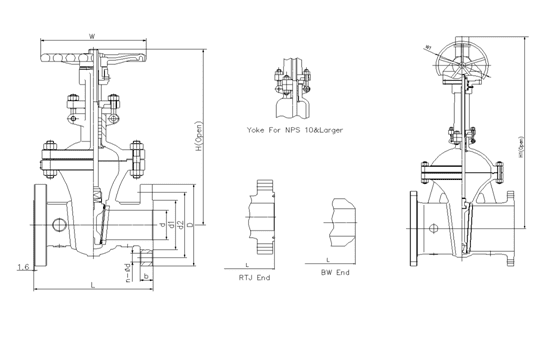

Class600 API600 bronze valves

NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 51 64 76 102 127 152 200 248 298 327 375 419 464 559
L(RF) mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L(BW) mm 292 330 356 432 508 559 660 787 838 889 991 1092 1194 1397
L(RTJ) mm 295 333 359 435 511 562 664 791 841 892 994 1095 1200 1407
d1 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 127 149 168.5 216 267 292 349 432 489 527 603 654 724 838
D mm 165 190 210 273 330 356 419 508 559 603 686 743 813 940
b mm 26 29 32 38 45 48 56 64 67 70 77 83 89 102
n-Фd mm 8-19 8-22 8-22 8-25 8-29 12-29 12-32 16-35 20-35 20-38 20-41 20-44 24-44 24-52
H mm 444 500 558 665 760 868 1073 1263 1600 1705 1835
H1 mm     585 695 790 900 1110 1300 1650 1750 1900 2020 2172 2650
W mm 200 250 280 300 350 450 500 650 700 900 900
W1 mm     310 310 310 310 310 460 460 460 460 600 600 600

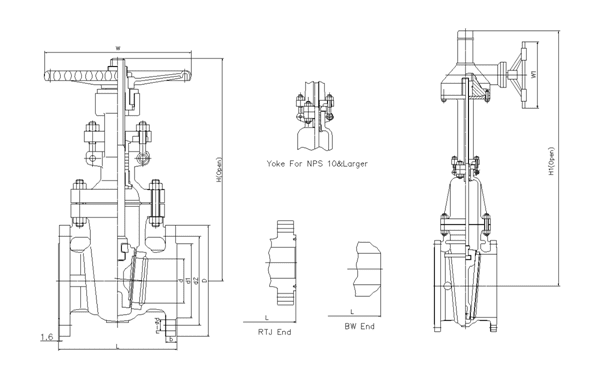

Class900  API600 bronze valves

NPS in 2 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24
d mm 47 57 73 98 121 146 190 234 282 311 354 400 444 533
L(RF) mm 368 419 381 457 559 610 737 838 965 1029 1130 1219 1321 1549
L(BW) mm 368 419 381 457 559 610 737 838 965 1029 1130 1219 1321 1549
L(RTJ) mm 371 422 384 460 562 613 740 841 968 1039 1140 1232 1334 1568
d1 mm 92 105 127 157 186 216 270 324 381 413 470 533 584 692
d2 mm 165 190.5 190.5 235 279.4 317.5 393.7 469.9 533.4 558.8 615.9 685.8 749.3 901.7
D mm 216 244 241 292 349 381 470 545 610 640 705 785 855 1040
b mm 38.5 41.5 38.5 44.5 51 56 64 70 79.5 86 89 102 108 140
n-Фd mm 8-26 8-29 8-26 8-32 8-35 12-32 12-39 16-39 20-39 20-42 20-45 20-51 20-54 20-67
H mm 500 550 610 702 850 980 1100 1320 1500 1900 2050
H1 mm     660 750 900 1060 1140 1370 1560 1950 2100 2300 2450 2600
W mm 280 280 300 350 400 500 650 700 900 900 900
W1 mm     310 310 310 460 460 460 460 600 600 600 600 600
