Skip to content Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.
Application
Face to Face Dimensions: ANSI B16.10
Flange end Dimension :ANSI B16.5
Design and Manufacture：API 594
Pressure Test：API598
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

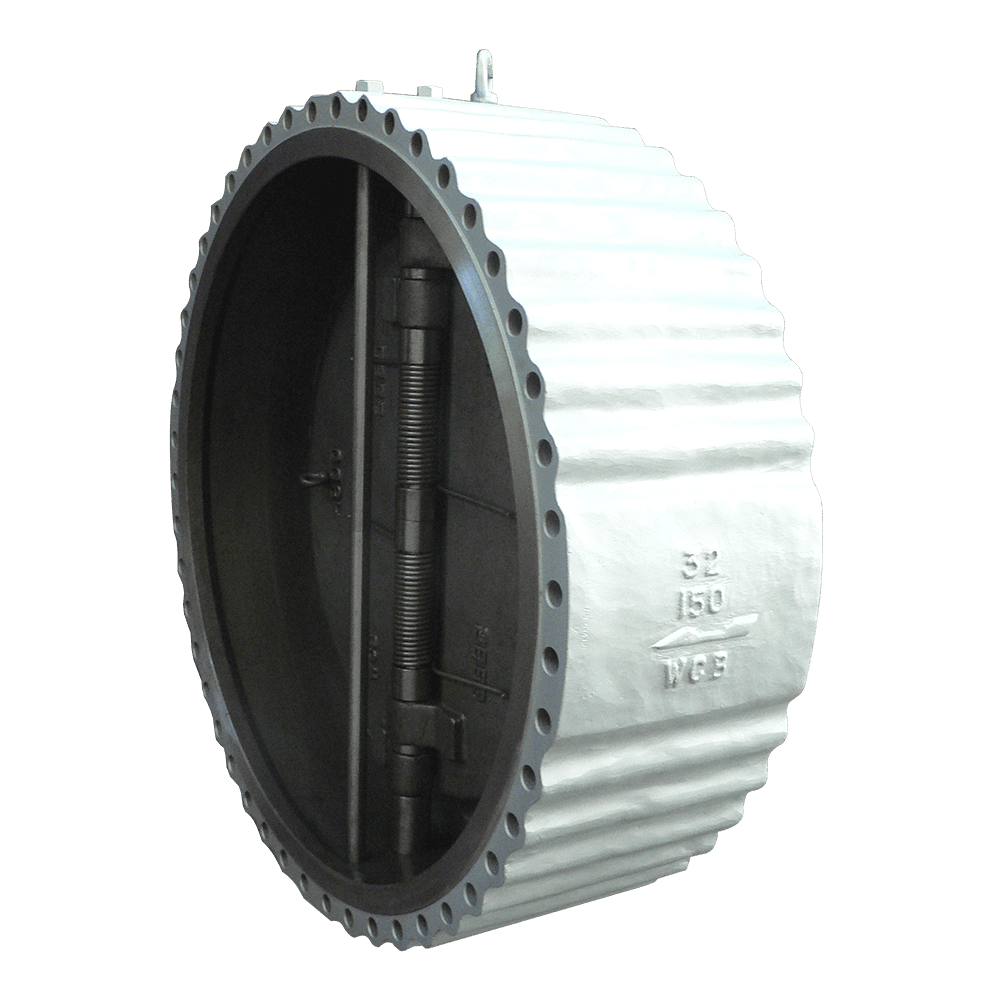

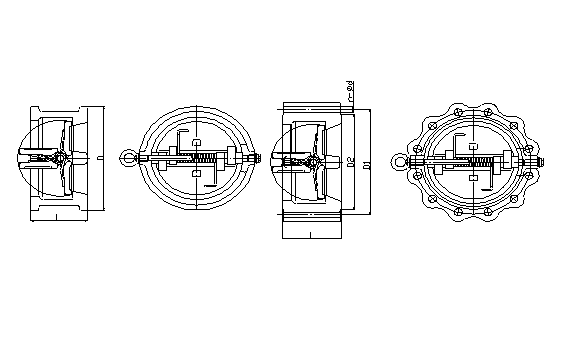

Class150-600Lb Wafer Check Valve
| NPS | in | 2 | 21/2 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24 | |
| 150Lb | L | mm | 60 | 67 | 73 | 73 | 86 | 98 | 127 | 146 | 181 | 184 | 191 | 203 | 219 | 222 |
| D | mm | 103 | 122 | 135 | 173 | 196 | 222 | 279 | 339 | 409 | 450 | 514 | 549 | 606 | 717 | |
| D1 | mm | 120.5 | 139.5 | 152.5 | 190.5 | 216 | 241.5 | 298.5 | 362 | 432 | 476 | 540 | 578 | 635 | 749.5 | |
| D2 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 | 533 | 584 | 692 | |
| n-Фd | mm | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | |
| 300Lb | L | mm | 60 | 67 | 73 | 73 | 86 | 98 | 127 | 146 | 181 | 222 | 232 |
|
|
|
| D | mm | 110 | 128 | 148 | 180 | 215 | 250 | 307 | 361 | 422 | 485 | 539 |
|
|
| |
| D1 | mm | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 | 387.5 | 451 | 514.5 | 571.5 |
|
|
| |
| D2 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 |
|
|
| |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 | 16-29 | 16-32 | 20-32 | 20-35 |
|
|
| |
| 600Lb | L | mm | 60 | 67 | 73 | 79 | 105 | 137 | 165 | 213 | 229 | 273 | 305 |
|
|
|
| D | mm | 110 | 129 | 148 | 192 | 240 | 265 | 319 | 399 | 456 | 489 | 562 |
|
|
| |
| D1 | mm | 127 | 149 | 168.5 | 216 | 267 | 292 | 349 | 432 | 489 | 527 | 603 |
|
|
| |
| D2 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 | 381 | 413 | 470 |
|
|
| |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-25 | 8-29 | 12-29 | 12-32 | 16-35 | 20-35 | 20-38 | 20-41 |
|
|
| |
Nowadays, people pay much attention to environmental protection.

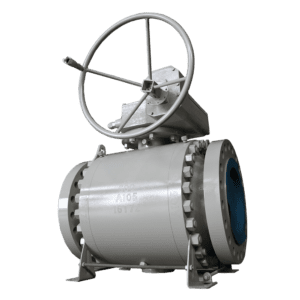

We Sedelon also take it into consideration. Low Emission Ball valves /Low Leakage
Ball valves can effectively prevent the medium leakage and emission, thus being good for the environment.
Equipped with Fugitive Emission Test Certificate ISO 15848-1:2006, Sedelon manufactures Fugitive Emission Ballvalves in order to make a contribution to protecting the environment.
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 6D
Pressure Test：API598
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800、C95500、A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.

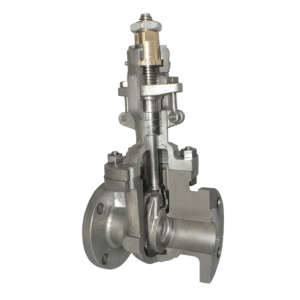

Face to Face Dimensions: EN558-1/DIN3202 F2
Flange end Dimension : EN1092-1/DIN2545
Design and Manufacture：EN 13709/DIN3356
Pressure Test：EN12266/DIN3230
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.
