API602 Forged Gate Valve

Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.

API602 Forged Gate Valve

product feature

Follow Us

Application

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：API 602

Pressure Test：API 598

Materials：A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.

150LB~800lbAPI602
Forged Gate Valve

NPS	in	1/2	3/4	1	11/4	11/2	2
L(SW)	mm	79	92	111	120	120	140
L(NPT)	mm	79	92	111	120	120	140
NPT	mm	1/2	3/4	1	11/4	11/2	2
A	mm	21.8	27.1	33.8	42.6	48.7	61.1
B	mm	9.6	12.7	12.7	12.7	12.7	15.9
H	mm	166	169	193	230	246	283
W	mm	100	100	125	160	160	180

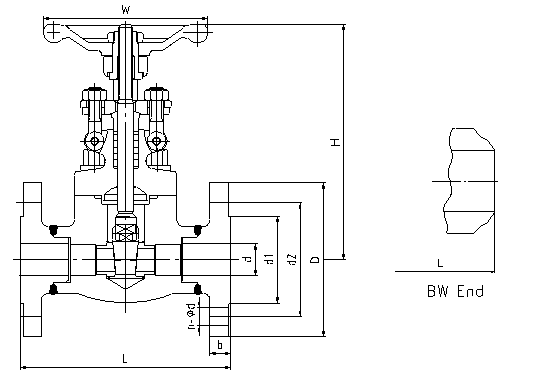

150Lb API602 Forged Gate Valve

NPS	in	1/2	3/4	1	11/4	11/2	2
d	mm	13	19	25	32	38	51
L(RF)	mm	108	117	127	140	165	178
L(BW)	mm	108	117	127	140	165	216
d1	mm	35	43	51	64	73	92
d2	mm	60.5	70	79.5	89	98.5	120.5
D	mm	89	98	108	117	127	152
b	mm	11	12	12	13	15	16
n-Фd	mm	4-16	4-16	4-16	4-16	4-16	4-19
H	mm	195	210	240	300	395	400
W	mm	120	120	140	180	200	200

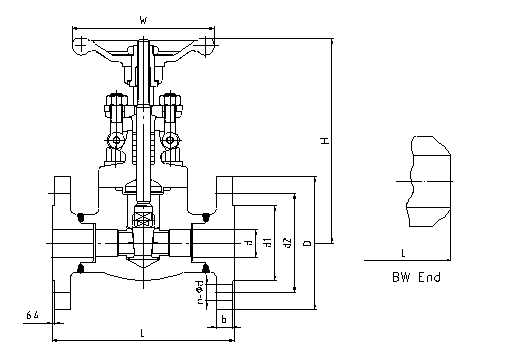

300Lb API602 Forged Gate Valve

NPS	in	1/2	3/4	1	11/4	11/2	2
d	mm	13	19	25	32	38	51
L(RF)	mm	140	152	165	178	190	216
L(BW)	mm	140	152	165	178	190	216
d1	mm	35	43	51	64	73	92
d2	mm	66.5	82.5	89	98.5	114.5	127
D	mm	95	117	124	133	156	165
b	mm	15	16	18	19	21	23
n-Фd	mm	4-16	4-19	4-19	4-19	4-22	8-19
H	mm	198	215	245	306	400	420
W	mm	120	140	160	180	200	200

600Lb API602 Forged Gate Valve

NPS	in	1/2	3/4	1	11/4	11/2	2
d	mm	13	19	25	32	38	51
L(RF)	mm	165	190	216	229	241	292
L(BW)	mm	165	190	216	229	241	292
d1	mm	35	43	51	64	73	92
d2	mm	66.5	82.5	89	98.5	114.5	127
D	mm	95	118	124	133	156	165
b	mm	15	16	18	21	23	26
n-Фd	mm	4-16	4-19	4-19	4-19	4-22	8-19
H	mm	198	215	245	306	400	420
W	mm	120	140	160	180	200	200

API Trim NO. Table

No of internal parts	Seat ring or body	Gate、disc 、ball or body	Stem	No of internal parts		Seat ring or body	Gate、disc 、ball or body	Stem
01	13Cr	13Cr	13Cr	31		STELLITE	321SS	321SS
02	304SS	304SS	304SS	32		STELLITE	STELLITE	321SS
03	310SS	310SS	310SS	33		347SS	347SS	347SS
04	HARD 13Cr	HARD 13Cr	13Cr	34		STELLITE	347SS	347SS
05	STELLITE	STELLITE	13Cr	35		NICKEL ALLOY	13Cr	13Cr
06	Cu-Ni	13Cr	13Cr	36		A105/PTFE	A105+ENP	A105+ENP
07	13Cr	HARD 13Cr	13Cr	37		A105/PTFE	WCB+ENP	A105+ENP
08	STELLITE	13Cr	13Cr	38		13Cr/PTFE	13Cr	13Cr
09	Cu-Ni	Cu-Ni	Cu-Ni	39		304SS/PTFE	304SS	304SS
10	316SS	316SS	316SS	40		316SS/PTFE	316SS	316SS
11	Cu-Ni	STELLITE	Cu-Ni	41		A105/RPTFE	A105+ENP	A105+ENP
12	STELLITE	316SS	316SS	42		A105/RPTFE	WCB+ENP	A105+ENP
13	ALLOY 20	ALLOY 20	ALLOY 20	43		13Cr/RPTFE	13Cr	13Cr
14	STELLITE	ALLOY 20	ALLOY 20	44		304SS/RPTFE	304SS	304SS
15	STELLITE	STELLITE	304SS	45		316SS/RPTFE	316SS	316SS
16	STELLITE	STELLITE	316SS	46		A105/NYLON	A105+ENP	A105+ENP
17	STELLITE	STELLITE	347SS	47		A105/NYLON	WCB+ENP	A105+ENP
18	STELLITE	STELLITE	ALLOY 20	48		A105/NYLON	304SS	304SS
19	MONEL	MONEL	MONEL	49		A105/NYLON	316SS	316SS
20	BRONZE	BRONZE	13Cr	50		13Cr/NYLON	13Cr	13Cr
21	HASTELLOY B	HASTELLOY B	HASTELLOY B	51		304SS/NYLON	304SS	304SS
22		HASTELLOY C	HASTELLOY C	52		316SS/NYLON	316SS	316SS
23	STELLITE	304SS	304SS	53		A105/PEEK	A105+ENP	A105+ENP
24	304LSS	304LSS	304LSS	54		A105/PEEK	WCB+ENP	A105+ENP
25	STELLITE	304LSS	304LSS	55		13Cr/PEEK	13Cr	13Cr
26	STELLITE	STELLITE	304LSS	56		304SS/PEEK	304SS	304SS
27	316LSS	316LSS	316LSS	57		316SS/PEEK	316SS	316SS
28	STELLITE	316LSS	316LSS
29	STELLITE	STELLITE	316LSS
30	321SS	321SS	321SS

Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
