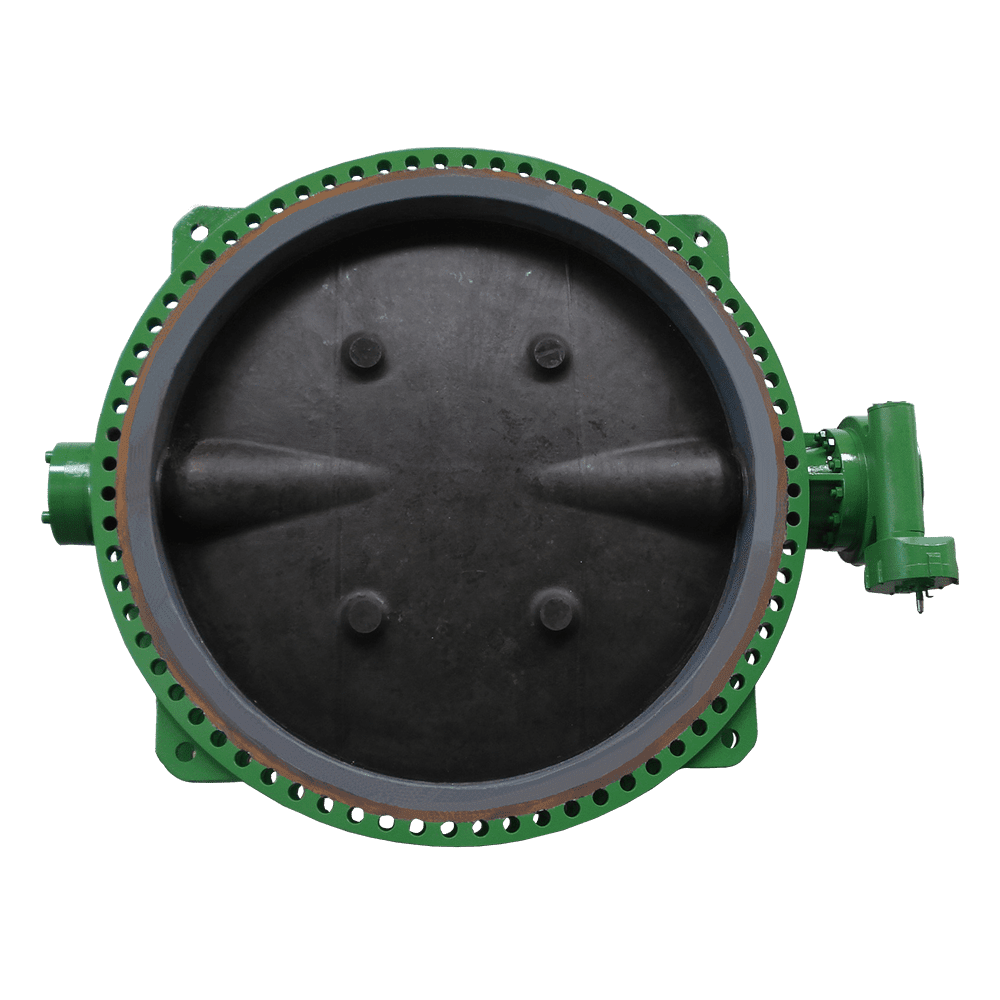

Big size Butterfly Valves

Large diameter butterfly valves are designed for on-off service in circulating water, cooling water, and low-pressure process pipelines. The disc rotates 90° around the stem axis to open or close the valve, providing a compact, lightweight, and fast-operating alternative to gate valves of comparable size. Their relatively low weight can simplify transportation, installation, and maintenance, particularly in large-diameter piping systems.

Face-to-face dimensions comply with ASME B16.10, flange ends with ASME B16.5, and butt-weld ends with ASME B16.25. The valves are designed and manufactured in accordance with API 609 and pressure-tested in accordance with API 598. Available sizes range from NPS 2 to NPS 24, with pressure ratings from Class 150 to Class 300. Available body materials include WCB carbon steel, CF8M stainless steel, CN7M alloy, LCB low-temperature carbon steel, and C95800 nickel-aluminum bronze, depending on the specified service conditions.

Product Description

As valve diameter increases, the advantages and engineering challenges of butterfly valves become more pronounced. Their relatively low weight and compact construction can reduce equipment handling requirements and installation costs. For example, a DN 2000 butterfly valve can weigh substantially less than a gate valve of the same nominal diameter, depending on the design and pressure rating. However, larger discs also create greater structural and operating demands. Hydraulic forces acting on the disc increase with its projected area, while the required operating torque depends on differential pressure, disc geometry, bearing friction, seal design, and other factors. Disc stiffness and resistance to deformation therefore become increasingly important as valve size increases.

Large diameter butterfly valves commonly use double-offset or triple-offset designs. In a double-offset valve, the stem axis is offset relative to the disc and seat geometry, allowing the disc to move away from the seat shortly after opening. A triple-offset design introduces an additional geometric offset that produces a cam-like, non-rubbing seating action. These configurations reduce sliding contact between the sealing surfaces, helping lower operating torque and minimize wear.

Depending on the application, butterfly valves can use resilient soft seats or metal-seated designs. Soft-seated valves are suitable for many ambient-temperature water applications requiring tight shutoff, provided the seat material is compatible with the operating conditions. Triple-offset metal-seated designs commonly use layered metal sealing elements, sometimes incorporating graphite layers, to provide a combination of flexibility, temperature resistance, and fire-safe performance where appropriately designed and qualified.

Large diameter butterfly valves are generally equipped with gear operators or powered actuators. Manual operation can require numerous handwheel turns, and adequate clearance should be provided for operation, inspection, and lifting equipment during maintenance. Soft seats are sensitive to foreign particles and installation debris; welding slag or sharp solids can damage the sealing surface. The pipeline should therefore be thoroughly cleaned and flushed before commissioning.

Prolonged operation at intermediate openings can expose the disc and seat to high local velocities, turbulence, vibration, and erosion. Unless the valve is specifically selected and qualified for throttling service, full-open or full-closed operation is generally preferred.

For seawater applications, CF8M stainless steel or C95800 nickel-aluminum bronze may be considered for the valve body and disc, subject to corrosion assessment. The stem material should be selected for the chloride environment and mechanical loading, with suitable protective coatings or marine-growth control measures considered where required.

Each valve is designed in accordance with API 609 and tested in accordance with API 598.

Applications

Circulating water and cooling water headers: Large flow capacity, quarter-turn operation, and reduced weight compared with many gate valve configurations of equivalent size.

Seawater cooling pipelines: Corrosion-resistant body and disc materials, suitable stem alloys, and protective measures against marine growth.

Large diameter water supply and wastewater treatment pipelines: Compact construction and reduced installation and handling requirements.

Flue gas desulfurization, exhaust gas, and ventilation systems: Eccentric designs with suitable metal seats for demanding temperature and corrosion conditions.

Pump stations and valve stations requiring rapid isolation: Gear-operated or actuated butterfly valves for efficient operation in large-diameter pipelines.

Selection Guide

Valve design and sealing: For ambient-temperature clean water, consider a concentric butterfly valve with a resilient soft seat. For higher temperatures, abrasive media, or more demanding operating conditions, consider double-offset or triple-offset metal-seated designs, subject to the required leakage performance.

Stem and body materials: Select the stem material according to operating torque, mechanical strength, and corrosion exposure. For seawater, consider suitable duplex stainless steel stems and corrosion-resistant body and disc materials such as CF8M or C95800, after verifying their suitability for the specific seawater conditions.

Operating mechanism: For valves DN 600 and larger, or installations where the valve is positioned at an elevated or difficult-to-access location, consider a gear operator or powered actuator. Size the operating mechanism based on the maximum required torque under the specified differential pressure and operating conditions.

Installation and pipeline cleaning: Thoroughly clean and flush the pipeline before commissioning. Tighten flange bolts in a diagonal, crosswise sequence using the specified procedure to achieve even gasket compression and avoid damaging the sealing components. Confirm correct valve alignment and installation clearances.

Pressure drop assessment: Butterfly valves generally introduce more flow resistance than a fully open, full-bore gate valve or ball valve of comparable nominal size. Include disc-related pressure loss in the hydraulic calculation to ensure that the valve meets the system's flow and pressure requirements.

Project Case

At the seawater cooling water header of a CNOOC International Limited project in Oman, the system operated with DN 2000, PN 10 high-salinity seawater containing marine organisms. The original valves experienced sticking due to seawater corrosion and marine growth accumulation on the disc and associated components. After approximately 11 months of service, the valves could no longer achieve full closure, requiring unplanned cleaning and maintenance.

Flowork supplied 34 large diameter double-offset butterfly valves in DN 1200–2400, PN 10, featuring CF8M stainless steel bodies and discs, 2205 duplex stainless steel stems, PTFE/stainless steel composite multilayer sealing elements, protective coatings against marine growth, and gear operators. The valves were designed in accordance with API 609 Category B and underwent shell and sealing tests in accordance with API 598, with on-site witnessing by CNOOC International's engineering team. Since commissioning in March 2022, the valves have reportedly operated for three consecutive years without sticking or leakage. Unplanned shutdowns for marine-growth removal were reduced from approximately four times per year to zero, while cooling water system availability reportedly increased to 99.5% and power generation availability to 99.2%.

Frequently Asked Questions

Q1: What should be done if a large diameter butterfly valve still leaks slightly after closing?

A: Common causes include debris trapped between the disc and seat, damage to the sealing ring, or incorrect travel limits that prevent the disc from reaching its fully closed position. First, verify that no foreign objects are obstructing the disc. Then inspect the seat, sealing surfaces, actuator settings, and mechanical stops in accordance with the manufacturer's maintenance procedures.

Q2: How should a butterfly valve with a seized stem in seawater service be addressed?

A: Possible causes include corrosion of the stem, coating degradation, bearing problems, or marine growth affecting moving components. Isolate the valve and make the system safe before inspection. Assess the stem material, bearing arrangement, and protective coating, and replace unsuitable or damaged components with materials and protection systems appropriate for the seawater environment.

Q3: Why does a butterfly valve vibrate or produce unusual noise when fully open?

A: Possible causes include improper installation alignment, insufficient clearance between the disc and adjacent piping components, excessive flow velocity, or hydraulic turbulence. Prolonged operation at intermediate openings can also cause vibration and erosion. Check installation geometry and operating conditions, and confirm that the valve is being used within its specified operating range.

Q4: What precautions should be taken when replacing a soft seat?

A: Isolate, depressurize, and drain the pipeline before removing the seat. Replace it with the correct part number and material specification, following the manufacturer's installation procedure. Thoroughly clean the pipeline and remove welding slag and other debris before returning the valve to service to prevent damage to the new seat.

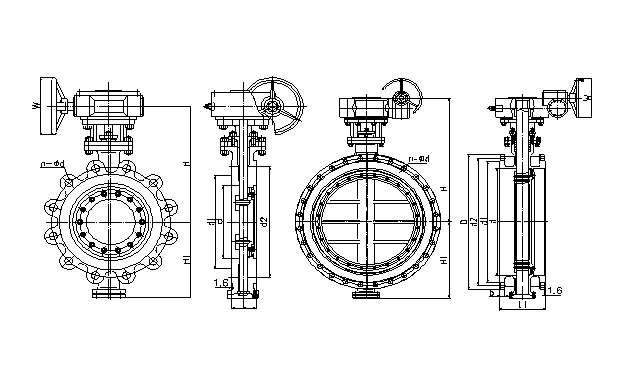

Class150
Big size Butterfly Valves


NPS

in

2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

43

48

54

57

64

71

81

92

102

114

127

154

\L1(RF)

mm

108

114

127

140

152

165

178

190

216

222

229

267

d1

mm

92

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

225

255

285

332

386

427

498

510

540

585

642

693

H1

mm

112

126

146

170

218

245

290

316

352

386

415

482

W

mm

300

300

300

300

300

300

500

500

600

600

600

600

Class300
Big size Butterfly Valves

NPS

in

3

4

6

8

10

12

14

16

18

20

24

d

mm

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

48

54

59

73

83

92

117

133

149

159

181

\L1(RF)

mm

114

127

140

152

165

178

190

216

222

229

267

d1

mm

127

157

216

270

324

381

413

470

533

584

692

d2

mm

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

210

254

318

381

445

521

584

648

711

775

914

b

mm

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

265

290

355

418

456

498

547

582

651

704

780

H1

mm

130

150

185

236

273

313

338

392

420

465

532

W

mm

300

300

300

500

500

600

600

600

600

600

600

API Trim NO.
Table



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22



HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS









Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
