Skip to content Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.
Compared with other material, Bronze API Ball Valve are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze API Ball Valve which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.
Compared
with other material, Bronze API Ball Valve are good choices for industries which require
the following characteristics: Desalination and Highly corrosive
environments.Sedelon manufactures different types of Bronze
API Ball Valve which are suitable for
Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore
and Platforms.
Sedelon® mainly produces Bronze API Ball Valve according to the standard of API 600. We call
them API 600 Bronze valves.According to different design standards, Sedelon®
provides you DIN Bronze valves as well， for
example, Bronze API Ball Valve.
The
characteristics of the SedelonBronze API Ball Valve are of corrosion resistance , oxidation resistance ， electric
resistance and clean sanitation. These features makeBronze
API Ball Valve special and incomparable to
other metal material valves.
A Bronze API Ball Valve is a valve which can be used for isolating or regulating flow.
Application
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 6D
Pressure Test：API598
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1
LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800、C95500、A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.
Class150
Bronze API Ball Valve

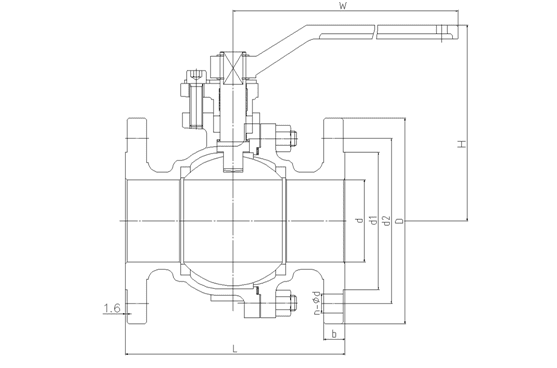

| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 | 10 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 | 254 |
| L(RF) | mm | 178 | 190 | 203 | 229 | 356 | 394 | 457 | 533 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 | 324 |
| d2 | mm | 120.5 | 139.5 | 152.5 | 190.5 | 216 | 241.5 | 298.5 | 362 |
| D | mm | 152 | 178 | 190 | 229 | 254 | 279 | 343 | 406 |
| b | mm | 16 | 18 | 19 | 24 | 24 | 26 | 29 | 31 |
| n-Фd | mm | 4-19 | 4-19 | 4-19 | 8-19 | 8-22 | 8-22 | 8-22 | 12-25 |
| H | mm | 110 | 130 | 150 | 180 | 220 | 270 | 340 | 350 |
| W | mm | 200 | 290 | 290 | 360 | 600 | 800 | 1000 | 1200 |
Class300
Bronze API Ball Valve
| NPS | in | 2 | 2 1/2 | 3 | 4 | 5 | 6 | 8 |
| d | mm | 51 | 64 | 76 | 102 | 127 | 152 | 203 |
| L(RF) | mm | 216 | 241 | 283 | 305 | 381 | 403 | 502 |
| d1 | mm | 92 | 105 | 127 | 157 | 186 | 216 | 270 |
| d2 | mm | 127 | 149 | 168.5 | 200 | 235 | 270 | 330 |
| D | mm | 165 | 190 | 210 | 254 | 279 | 318 | 381 |
| b | mm | 23 | 26 | 29 | 32 | 35 | 37 | 42 |
| n-Фd | mm | 8-19 | 8-22 | 8-22 | 8-22 | 8-22 | 12-22 | 12-25 |
| H | mm | 140 | 160 | 180 | 208 | 220 | 290 | 300 |
| W | mm | 200 | 290 | 290 | 360 | 600 | 800 | 1000 |
Face to Face Dimensions:ANSI B16.10
Flange end Dimension :ANSI B16.5
Butt Welded Dimensions：ANSI B16.25
Design and Manufacture：API 6D
Pressure Test：API598
Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A、C95800、C95500、A105、 F304 、F304L 、F316 、F316L、LF1 、LF2、LF3、LF9、 F51、F53、F11、F22, ect.
