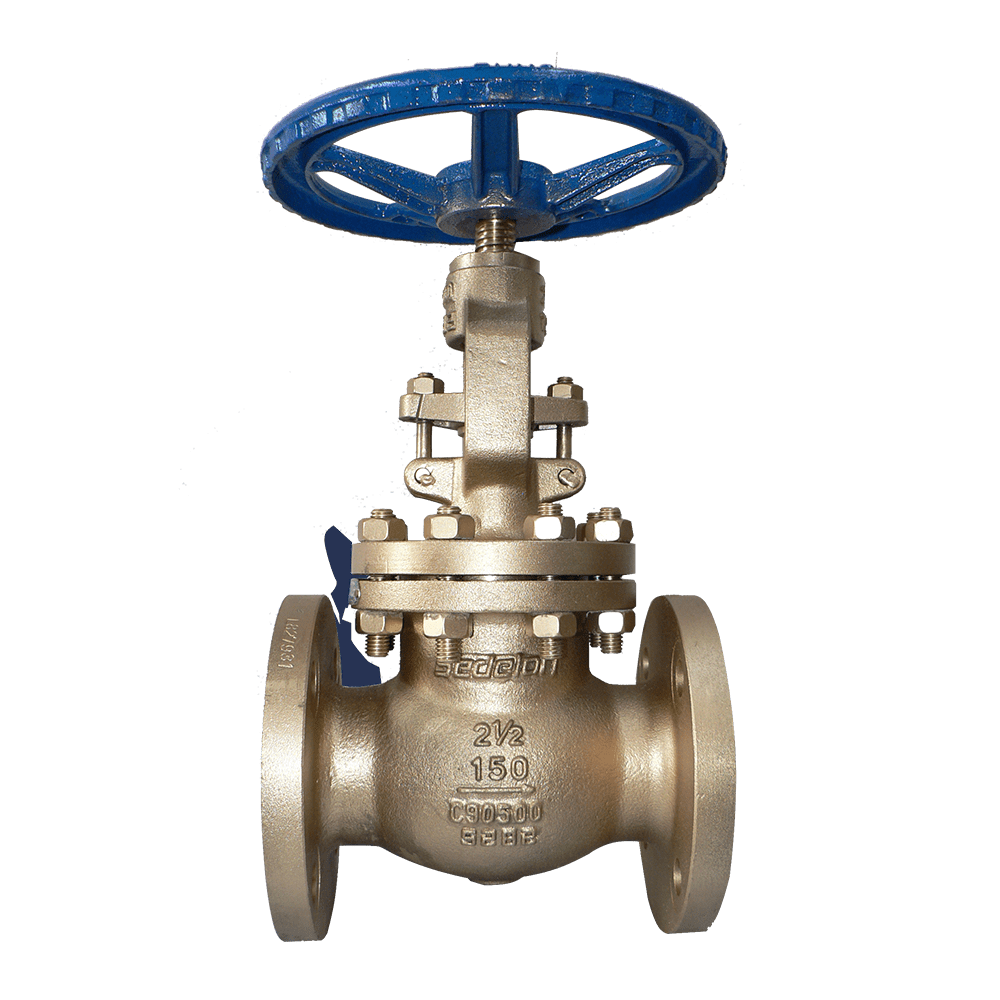

Bronze DIN Globe valve

DIN bronze globe valves are manufactured in accordance with the European standards system: face-to-face dimensions comply with EN 558-1/DIN 3202 F2; flanges comply with EN 1092-1/DIN 2545; design and manufacture comply with EN 13709/DIN 3356; and pressure testing complies with EN 12266/DIN 3230. Sizes start at DN50, with pressure ratings ranging from PN16 to PN63. The cast bronze valve bodies are made of materials such as C95800, C95500, and C95600. Unlike gate valves, globe valves can be used for flow regulation.

Product Description

The fundamental difference between a globe valve and a gate valve lies in the former’s ability to throttle flow, a capability determined by its structure. A gate valve consists of a flat plate that moves vertically and can only be in one of two positions: fully open or fully closed. In a globe valve, the disc moves vertically along the seat orifice and can create stable throttling at any point during its stroke; therefore, it is used for flow regulation, pipeline balancing, and sampling control.

The trade-off is pressure drop. The flow path of a globe valve forms an S-shaped double bend, causing the medium to change direction twice within the valve body; the pressure drop is approximately several to ten times that of a gate valve of the same nominal diameter. Pump power consumption must be calculated during selection—on high-flow cooling water lines, using a globe valve as a shut-off valve can result in long-term energy losses; in such cases, a gate valve or butterfly valve should be used instead.

There are several other points in the European standard system that must not be confused. DIN 3202 classifies valves into series based on structure; F2 belongs to the globe valve series, while F7 belongs to the gate valve series. For the same nominal diameter, F2 is shorter than F7, so when substituting a globe valve for a gate valve, the flange-to-flange distance will not align. Design and manufacturing follow EN 13709/DIN 3356, while flanges comply with EN 1092-1/DIN 2545. The bore center circle and number of bolts increase with PN, making them incompatible with ANSI B16.5. Material grades are classified by flow velocity: C95800 for flowing seawater, C95500 for sand-laden sections, and C95600 for low-velocity sections. Bronze has approximately half the hardness of steel; even though throttling is permitted in globe valves, long-term erosion at small opening angles can still damage the conical seat surface. It is recommended to maintain the minimum opening at 20% or higher; for high-velocity conditions, C95500 should be selected as the preferred grade.

Application Scenarios

  • Flow balancing and sampling control in seawater desalination and water intake/discharge systems: Locations requiring regulation rather than simply shutting off the flow.
  • Flow distribution in cooling water branch lines and equipment inlets/outlets: S-shaped flow channels create pressure drop and provide stable regulation characteristics.
  • Chemical plant chemical dosing, flushing, and purging lines: Precise control of low flow rates.
  • Regulation points in shipboard seawater and freshwater piping: European classification society projects comply with EN system requirements.
  • Trap bypasses in steam and hot water systems: Primarily DN50 and above, PN16.
  • Manual control valves for instrumentation and sampling lines: Starting at DN50, equipped with handwheels for fine adjustment.

Selection Guide

Valve Type Selection: Select a globe valve for applications requiring flow regulation, pipeline balancing, or control of sampling flow; select a gate valve for applications requiring only fully open or fully closed operation where pressure drop is a concern. The two valve types are not interchangeable.

Pressure Drop Calculation: Globe valves have an S-shaped flow path, resulting in a pressure drop that is several to ten times greater than that of a gate valve of the same diameter. On high-flow pipelines, calculate pump power consumption to ensure that long-term energy consumption remains acceptable.

Dimension Verification: Face-to-face dimensions comply with EN 558-1/DIN 3202 F2 (globe valve series); flange dimensions comply with EN 1092-1/DIN 2545. The F7 (gate valve series) has a longer face-to-face dimension for the same nominal diameter and is not interchangeable.

Materials and Opening: C95800 for flowing seawater, C95500 for sand-laden sections, and C95600 for low-velocity sections; bronze is relatively soft, so for long-term throttling, the minimum opening should not be less than 20%; C95500 is preferred for high-velocity conditions.

Optional Features: Gear operation, extended stem, locking device, and EN 10204 3.1 material certificate.

FAQ

Q: Can a DIN globe valve replace a DIN gate valve?

Functionally, no; in terms of length, it may not work either. Globe valves can throttle flow, while gate valves can only be fully open or fully closed. For face-to-face measurements, globe valves are F2 and gate valves are F7; for the same nominal diameter, the F2 globe valve is shorter, so the flange-to-flange distance won’t match when substituting one for the other.

Q: Why is the pressure drop in a globe valve greater than in a gate valve?

The flow path of a globe valve is an S-shaped double-bend; the medium changes direction twice within the valve body, resulting in a pressure drop that is several to ten times greater than that of a gate valve of the same nominal diameter. Using a globe valve for shutoff on high-flow pipelines will cause long-term energy losses; a gate valve or butterfly valve should be selected instead.

Q: Can a bronze globe valve be used for long-term throttling at a small opening?

Throttling is possible, but since bronze is about half as hard as steel, high-velocity media at a very small opening over a long period can erode the cone surface. It is recommended that the minimum opening be no less than 20 percent; for high-velocity flow or sand-laden conditions, C95500 should be the preferred choice.

Project Case

For the F-110-class frigate project at Navantia Shipyard in Spain, a total of 380 DN15–DN50 PN16 DIN bronze globe valves were procured for flow regulation in seawater cooling, fresh water supply, and fire protection piping systems. The valves are made of C95800 aluminum bronze and come with LR classification society certification. After three years of operation, there have been zero cases of cavitation-induced leakage or erosion damage to the valve discs, and the flow control accuracy has met design requirements. As a result, an additional order for 260 units was placed for subsequent frigates of the same class.

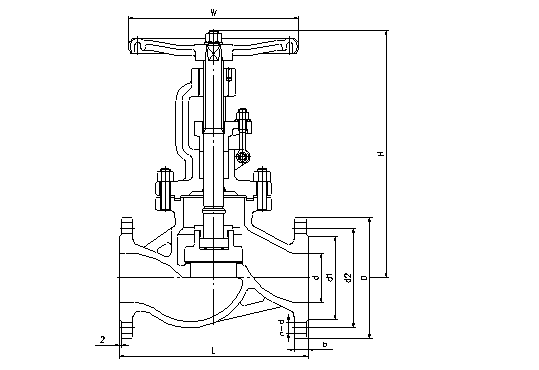

PN16   BronzeDIN GolbeValve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

158

188

212

268

320

378

438

490

d2

mm

125

145

160

180

210

240

295

355

410

470

525

D

mm

165

185

200

220

250

285

340

405

460

520

580

b

mm

18

18

20

20

22

22

24

26

28

30

32

n-Фd

mm

4-18

8-18

8-18

8-18

8-18

8-22

12-22

12-26

12-26

16-26

16-30

H

mm

305

354

402

437

496

541

699

815

914

1189

1350

W

mm

200

200

250

250

300

350

400

450

500

550

600

PN25   BronzeDIN Golbe
Valve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

162

188

218

278

335

395

450

505

d2

mm

125

145

160

190

220

250

310

370

430

490

550

D

mm

165

185

200

235

270

300

360

425

485

555

620

b

mm

20

22

24

24

28

28

30

32

34

38

40

n-Фd

mm

4-18

8-18

8-18

8-22

8-26

8-26

12-26

12-30

16-30

16-33

16-36

H

mm

325

363

415

453

505

556

744

864

948

1269

1450

W

mm

200

200

250

300

350

400

450

500

550

600

600

PN40  BronzeDIN GolbeValve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

230

290

310

350

400

480

600

730

850

980

1100

d1

mm

102

122

138

162

188

218

285

345

410

465

535

d2

mm

125

145

160

190

220

250

320

385

450

510

585

D

mm

165

185

200

235

270

300

375

460

515

580

660

b

mm

20

22

24

24

28

28

34

38

42

46

50

n-Фd

mm

4-18

8-18

8-18

8-22

8-26

8-26

12-30

12-33

16-33

16-36

16-39

H

mm

325

370

430

480

532

589

783

888

965

1285

1512

W

mm

200

200

250

300

350

400

450

500

550

600

600

PN63  BronzeDIN GolbeValve

DN



50

65

80

100

125

150

200

250

300

350

400

d

mm

50

63

76

100

125

150

200

250

300

336

387

L(RF)

mm

300

340

380

430

500

550

650

775

900

1025

1150

d1

mm

102

122

138

162

188

218

285

345

410

465

535

d2

mm

135

160

170

200

240

280

345

400

460

525

585

D

mm

180

205

215

250

295

345

415

470

530

600

670

b

mm

26

26

28

30

34

36

42

48

52

56

60

n-Фd

mm

4-22

8-22

8-22

8-28

8-30

8-33

12-36

12-36

16-36

16-39

16-42

H

mm

305

354

402

437

496

541

699

815

914

1189

1350

W

mm

200

200

250

250

300

350

400

450

500

550

600
