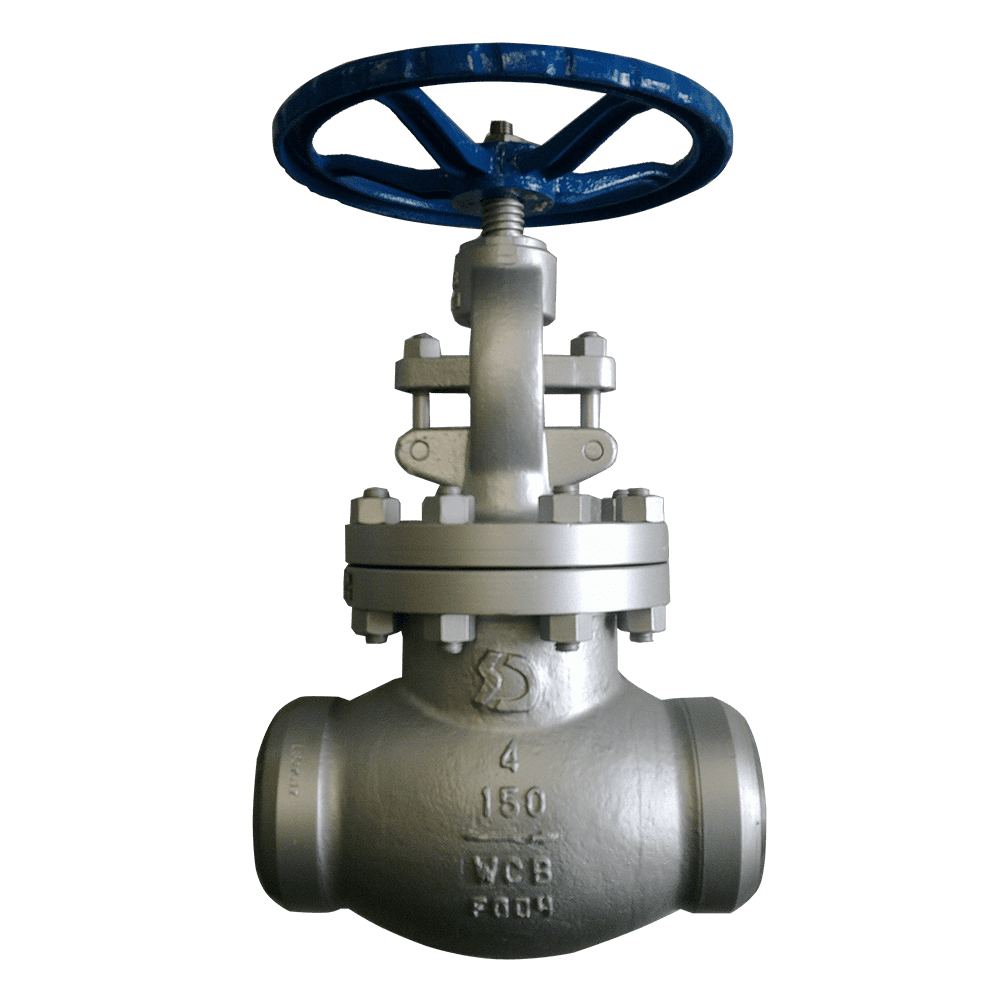

Butt Weld Globe Valve

Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.

Butt Weld Globe Valve

SEDELON butt weld globe valves are BS 1873 shut-off and throttling valves engineered for precise flow control and bubble-tight isolation in high-pressure pipeline systems. Covering NPS 2″–12″ and pressure classes 150 through 1500, they are built from a full material range — WCB/WC6/WC9 carbon and alloy steel, CF8/CF8M stainless, LCB/LCC for cryogenic duty, and Monel, duplex and bronze for corrosive and offshore service. The butt weld ends (ANSI B16.25) are welded directly into the line for a completely leak-free, flangeless connection that needs no gaskets or bolt maintenance. Every valve is pressure-tested to API 598 and backed by SEDELON’s OEM/ODM capability, EN 10204 3.1 mill certificates and short lead times for EPC contractors and distributors.

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Get A Quote

Download

product feature

What Is a Butt Weld Globe Valve

A globe valve uses a spherical body and a movable disc that seats against a stationary ring to start, stop or regulate flow. Compared with a gate valve, a globe valve sustains a higher pressure drop but delivers far better throttling accuracy and a tighter seal under frequent cycling — making it the standard choice for isolation points that also need flow regulation. The butt weld end version removes the flange joint entirely: the valve is site-welded into the pipeline, eliminating a common leak path and reducing weight and footprint in buried or offshore installations.

Key Features

BS 1873 design with API 598 pressure testing for reliable shutoff.
Butt weld ends to ANSI B16.25 — full-bore, leak-free pipeline weld with no flange joints to maintain.
Face-to-face dimensions to ANSI B16.10 for field interchangeability.
Wide pressure coverage: Class 150 / 300 / 600 / 900 / 1500.
Full material matrix: carbon (WCB), alloy (WC6/WC9), stainless (CF8/CF8M/CF3/CF3M), low-temperature (LCB/LCC), and corrosion-resistant (Monel, 20# Alloy, Duplex 4A/5A, Bronze C95800/C95500).
Renewable seat and stem with API trim options (No. 01–57) for erosive and corrosive service.
Optional gear, pneumatic or electric actuation on request.

Material & Trim Selection

For high-temperature steam and refinery duty, choose WC6/WC9 alloy steel with STELLITE-faced trim (API Trim 05/08). For cryogenic and LNG service, LCB/LCC with extended bonnet and 304L/316L trim prevent embrittlement. For seawater, desalination and offshore platforms, CF8M, Monel, duplex (4A/5A) or aluminum bronze (C95800/C95500) resist chloride corrosion. Corrosive chemical lines can be supplied with Hastelloy trim and PTFE/RPTFE/PEEK seats on request.

Applications

Upstream and midstream oil & gas, pipeline stations and metering skids.
Refineries and petrochemical plants.
Power generation, including cryogenic LNG with LCB/LCC bodies.
Desalination, seawater service and offshore platforms (bronze / duplex / Monel).
Chemical and high-purity process lines (CF8M, Hastelloy).

Why SEDELON

Valve manufacturer with OEM & ODM capability and full in-house machining.
NDE (MT/PT/UT) and hydrostatic & seat tests per API 598 on every valve.
Material certificates to EN 10204 3.1; third-party inspection supported.
Flexible MOQ, competitive lead time and global shipping for distributors and EPC contractors.
Engineering support for special trim, ends and actuation packages.

Frequently Asked Questions

What is a butt weld globe valve used for?

It is used where a pipeline needs both reliable isolation and accurate flow throttling — such as bypass, sampling and control lines in oil & gas, refining and power plants. The welded end makes it ideal for buried or offshore lines where flange joints are undesirable.

Butt weld vs flanged globe valve — which should I choose?

Choose butt weld when the line is permanent, space- and weight-critical, or in buried/offshore service where a leak path must be eliminated. Choose flanged (ANSI B16.5) when frequent disassembly for maintenance or retrofit is required.

Which standards does the SEDELON butt weld globe valve meet?

Design and manufacture to BS 1873, face-to-face to ANSI B16.10, butt weld end to ANSI B16.25, and pressure testing to API 598.

What materials are available for high/low-temperature and corrosive service?

High temperature: WC6/WC9. Low temperature / cryogenic: LCB/LCC. Corrosive / seawater: CF8M, Hastelloy, Monel, duplex (4A/5A) and bronze (C95800/C95500).

Can you supply custom trim and actuation?

Yes. We offer API Trim No. 01–57 and gear, pneumatic or electric actuation, with engineering support for special ends and trim packages.

Globe vs gate valve for throttling — what is the difference?

A globe valve gives precise throttling and a tight seal under frequent cycling but a higher pressure drop. A gate valve is for straight on/off service with low pressure drop and is not suited to throttling.

Get A Quote for butt weld globe valves — share your size, class, material and trim requirements for a fast quotation.

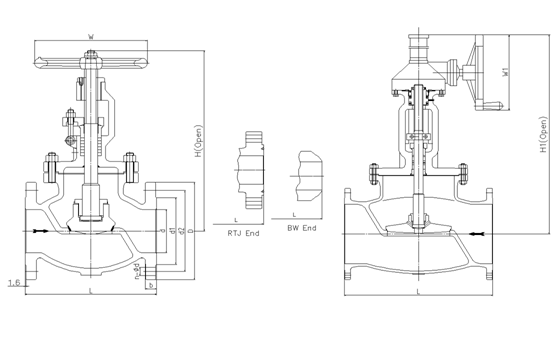

Class150
Butt weld Globe Valve

NPS	in	2	2 1/2	3	4	5	6	8	10	12
d	mm	51	64	76	102	127	152	203	254	305
L(RF)	mm	203	216	241	292	356	406	495	622	698
L(BW)	mm	203	216	241	292	356	406	495	622	698
L(RTJ)	mm	216	229	254	305	369	419	508	635	711
d1	mm	92	105	127	157	186	216	270	324	381
d2	mm	120.5	139.5	152.5	190.5	216	241.5	298.5	362	432
D	mm	152	178	190	229	254	279	343	406	483
b	mm	16	18	19	24	24	26	29	31	32
n-Фd	mm	4-19	4-19	4-19	8-19	8-22	8-22	8-22	12-25	12-25
H	mm	330	360	390	445	480	520	600	773	880
H1	mm						556	658	805	955
W	mm	200	200	250	300	350	350	500	500	550
W1	mm						310	310	460	460

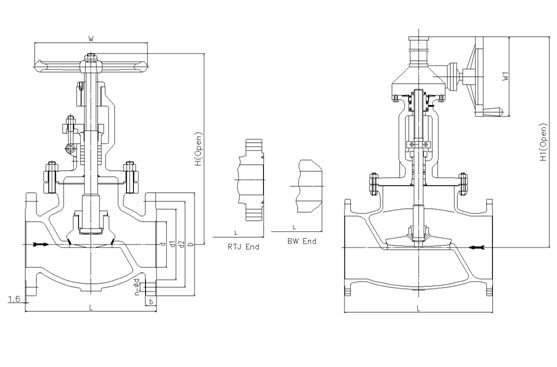

Class300
Butt weld Globe Valve

NPS	in	2	2 1/2	3	4	5	6	8	10	12
d	mm	51	64	76	102	127	152	203	254	305
L(RF)	mm	267	292	318	356	400	444	559	622	711
L(BW)	mm	267	292	318	356	400	444	559	622	711
L(RTJ)	mm	283	308	333	371	416	460	575	638	727
d1	mm	92	105	127	157	186	216	270	324	381
d2	mm	127	149	168.5	200	235	270	330	387.5	451
D	mm	165	190	210	254	279	318	381	445	521
b	mm	23	26	29	32	35	37	42	48	51
n-Фd	mm	8-19	8-22	8-22	8-22	8-22	12-22	12-25	16-29	16-32
H	mm	385	420	440	515	580	660	900	950	1030
H1	mm						690	950	990	1080
W	mm	250	250	300	350	450	500	500	550	550
W1	mm						310	460	460	460

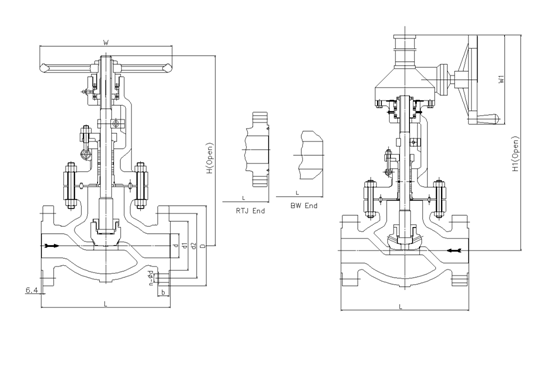

Class600
Butt weld Globe Valve

NPS	in	2	2 1/2	3	4	5	6	8	10	12
d	mm	51	64	76	102	127	152	200	248	298
L(RF)	mm	292	330	356	432	508	559	660	787	838
L(BW)	mm	292	330	356	432	508	559	660	787	838
L(RTJ)	mm	295	333	359	435	511	562	664	791	841
d1	mm	92	105	127	157	186	216	270	324	381
d2	mm	127	149	168.5	216	267	292	349	432	489
D	mm	165	190	210	273	330	356	419	508	559
b	mm	26	29	32	38	45	48	56	64	67
n-Фd	mm	8-19	8-22	8-22	8-25	8-29	12-29	12-32	16-35	20-35
H	mm	360	410	465	545	625	785	930
H1	mm				575	660	820	960	1040	1280
W	mm	250	300	350	400	500	550	650
W1	mm				310	310	460	460	610	610

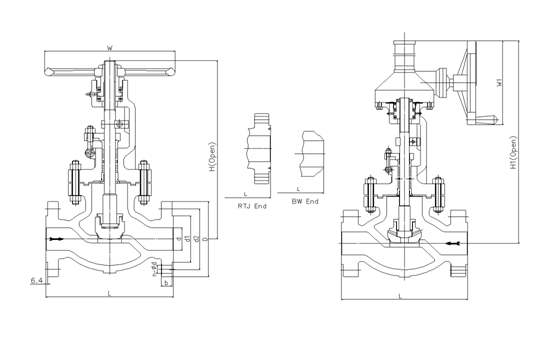

Class900
Butt weld Globe Valve

NPS	in	2	2 1/2	3	4	5	6	8	10
d	mm	47	57	73	98	121	146	190	234
L(RF)	mm	368	419	381	457	559	610	737	838
L(BW)	mm	368	419	381	457	559	610	737	838
L(RTJ)	mm	371	422	384	460	562	613	740	841
d1	mm	92	105	127	157	186	216	270	324
d2	mm	165	190.5	190.5	235	279.4	317.5	393.7	469.9
D	mm	216	244	241	292	349	381	470	545
b	mm	38.5	41.5	38.5	44.5	51	56	64	70
n-Фd	mm	8-26	8-29	8-26	8-32	8-35	12-32	12-39	16-39
H	mm	480	520	564	685	780	950
H1	mm			630	720	840	1015	1100	1185
W	mm	350	350	400	450	550	650
W1	mm			310	310	460	460	610	610

Class1500
Butt weld Globe Valve

NPS	in	2	2 1/2	3	4	5	6	8
d	mm	47	57	70	92	111	136	178
L(RF)	mm	368	419	470	546	673	705	832
L(BW)	mm	368	419	470	546	673	705	832
L(RTJ)	mm	371	422	473	549	676	711	841
d1	mm	92	105	127	157	186	216	270
d2	mm	165	190.5	203.2	241.3	292.1	317.5	393.7
D	mm	216	244	267	311	375	394	483
b	mm	38.5	41.5	48	54	73.5	83	92.9
n-Фd	mm	8-26	8-29	8-32	8-35	8-42	12-39	12-45
H	mm	592	660	692
H1	mm				907	950	1015	1145
W	mm	350	400	500
W1	mm				460	610	610	610

API Trim NO.
Table

No of internal parts	Seat ring or body	Gate、disc 、ball or body	Stem	No of internal parts	Seat ring or body	Gate、disc 、ball or body	Stem
01	13Cr	13Cr	13Cr	31	STELLITE	321SS	321SS
02	304SS	304SS	304SS	32	STELLITE	STELLITE	321SS
03	310SS	310SS	310SS	33	347SS	347SS	347SS
04	HARD 13Cr	HARD 13Cr	13Cr	34	STELLITE	347SS	347SS
05	STELLITE	STELLITE	13Cr	35	NICKEL ALLOY	13Cr	13Cr
06	Cu-Ni	13Cr	13Cr	36	A105/PTFE	A105+ENP	A105+ENP
07	13Cr	HARD 13Cr	13Cr	37	A105/PTFE	WCB+ENP	A105+ENP
08	STELLITE	13Cr	13Cr	38	13Cr/PTFE	13Cr	13Cr
09	Cu-Ni	Cu-Ni	Cu-Ni	39	304SS/PTFE	304SS	304SS
10	316SS	316SS	316SS	40	316SS/PTFE	316SS	316SS
11	Cu-Ni	STELLITE	Cu-Ni	41	A105/RPTFE	A105+ENP	A105+ENP
12	STELLITE	316SS	316SS	42	A105/RPTFE	WCB+ENP	A105+ENP
13	ALLOY 20	ALLOY 20	ALLOY 20	43	13Cr/RPTFE	13Cr	13Cr
14	STELLITE	ALLOY 20	ALLOY 20	44	304SS/RPTFE	304SS	304SS
15	STELLITE	STELLITE	304SS	45	316SS/RPTFE	316SS	316SS
16	STELLITE	STELLITE	316SS	46	A105/NYLON	A105+ENP	A105+ENP
17	STELLITE	STELLITE	347SS	47	A105/NYLON	WCB+ENP	A105+ENP
18	STELLITE	STELLITE	ALLOY 20	48	A105/NYLON	304SS	304SS
19	MONEL	MONEL	MONEL	49	A105/NYLON	316SS	316SS
20	BRONZE	BRONZE	13Cr	50	13Cr/NYLON	13Cr	13Cr
21	HASTELLOY B	HASTELLOY B	HASTELLOY B	51	304SS/NYLON	304SS	304SS
22		HASTELLOY C	HASTELLOY C	52	316SS/NYLON	316SS	316SS
23	STELLITE	304SS	304SS	53	A105/PEEK	A105+ENP	A105+ENP
24	304LSS	304LSS	304LSS	54	A105/PEEK	WCB+ENP	A105+ENP
25	STELLITE	304LSS	304LSS	55	13Cr/PEEK	13Cr	13Cr
26	STELLITE	STELLITE	304LSS	56	304SS/PEEK	304SS	304SS
27	316LSS	316LSS	316LSS	57	316SS/PEEK	316SS	316SS
28	STELLITE	316LSS	316LSS
29	STELLITE	STELLITE	316LSS
30	321SS	321SS	321SS

Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table

Name

Company

Phone

Customer Type

Choose Your industry

Message
