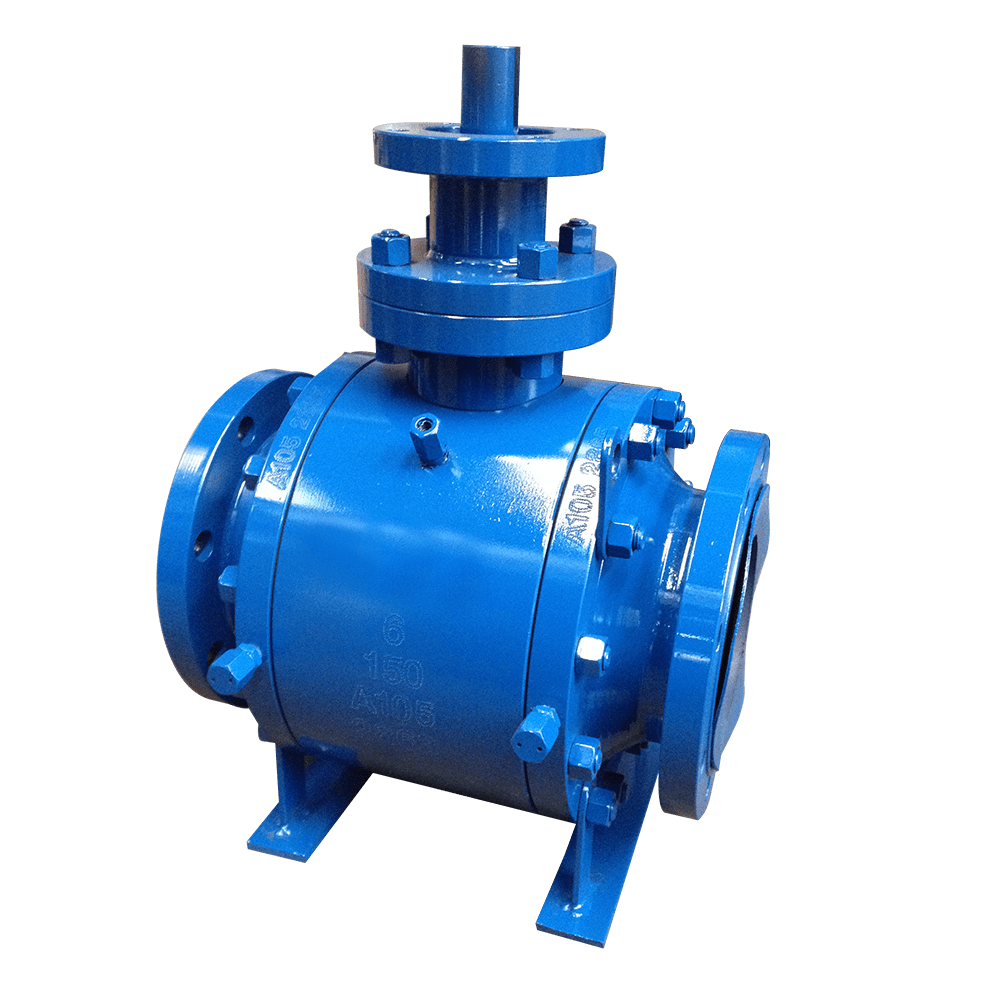

Forged Trunnion Mounted Ball Valve

The operating torque of large-bore, high-pressure ball valves should not be addressed by simply using a longer wrench. Medium pressure pushes the entire ball against the downstream seat, causing the torque to increase as pressure rises, making reliable operation difficult with both manual operation and standard actuators. A trunnion-mounted design transfers the thrust through the upper and lower trunnions, allowing the ball to rotate without translating. As a result, the operating torque is largely independent of valve size and pressure. This series is designed and manufactured in accordance with API 6D, covering NPS 2–24 and Class 150–900. Each valve is pressure tested in accordance with API 598.

Product Description

The distinction between a trunnion-mounted ball valve and a floating ball valve lies not in valve size, but in the load path of the medium-induced thrust. In a floating ball valve, sealing force is generated by the medium pushing the ball against the downstream seat. As pressure increases, the sealing force increases accordingly, and so does the operating torque. For floating ball valves above NPS 8 in high-pressure service, operating torque can reach several thousand N·m, while ball translation during operation can also cause circumferential wear of the sealing surfaces.

The trunnion-mounted design changes this load path. The ball is supported by upper and lower trunnions and bearings, with the medium-induced thrust transferred through the trunnions to the valve body. The ball rotates through 90° without translational movement. Sealing is provided jointly by the preloaded seat springs and medium pressure. Operating torque is primarily determined by the coefficient of friction at the sealing surfaces and does not increase linearly with valve size and pressure. Even an NPS 24, Class 900 valve can therefore be operated with relatively low torque.

The forged valve body is another key requirement. Thick sections of large castings are prone to shrinkage cavities and porosity, and microscopic defects can become crack initiation sites under high-pressure, sour-service conditions. This series uses an integral A105 forged valve body with a full-bore flow passage, allowing pigging operations to pass through the valve without obstruction.

The seats feature a double-piston effect design with an automatic cavity pressure relief function, allowing abnormal pressure in the body cavity to be relieved to the upstream side. Grease injection fittings are provided at the seats and stem, allowing temporary field sealing in the event of minor leakage.

The ball and sealing surfaces are selected according to the service medium: F51/F53 duplex stainless steel substrates with hard-chrome-plated balls are used for chloride-containing sour service; F11/F22 are used for high-temperature service; and LF2/LF3 are used for low-temperature service. Each valve undergoes shell and sealing tests in accordance with API 598. DBB functional test records, material certificates, and non-destructive examination reports can also be provided.

Applications

High-pressure natural gas and sour gas transmission pipelines: trunnion-mounted construction provides low operating torque in Class 600 and above service and can be equipped with actuators for remote shutdown.

Oilfield custody metering stations: double block and bleed (DBB) construction allows independent cavity bleeding for online verification and double isolation.

Sour crude oil pipelines containing H₂S: F51/F53 duplex stainless steel substrates can be configured for sour-service applications in accordance with NACE MR0175.

Condensate and light hydrocarbon pipelines: integral forged construction eliminates casting defects and withstands erosion from high-pressure, low-viscosity media.

High-pressure process piping on offshore platforms: duplex stainless steel with metal-seated construction is used for chloride-containing seawater and sour gas service.

Selection Guide

Design selection: For NPS 8 and above or Class 600 and above, a trunnion-mounted design is preferred. Floating ball valves may be used for small-bore, low-pressure service at a lower cost.

Seat configuration: Select double block and bleed (DBB) seats when online verification or double isolation is required. For fire-risk applications, confirm compliance with API 607 fire-safe requirements and the anti-static continuity design.

Emergency measures: Grease injection fittings are provided at the seats and stem, allowing temporary sealing by on-site grease injection in the event of abnormal leakage. Sealant should be replenished periodically in accordance with the maintenance manual.

Materials and operation: A105 is used for conventional oil and gas service, F51/F53 for chloride-containing seawater, and F11/F22 for high-temperature service. For NPS 12 and above, a gearbox or actuator is recommended to reduce opening and closing time.

Frequently Asked Questions

Q: How can a trunnion-mounted ball valve be distinguished from a floating ball valve?

A: A floating ball valve relies on medium pressure to push the ball against the downstream seat. The sealing force increases with pressure, and operating torque increases accordingly. In a trunnion-mounted ball valve, the upper and lower trunnions and bearings absorb the thrust, while the ball only rotates without translation. The relationship between operating torque and valve size or pressure is therefore much less pronounced.

Q: What is the purpose of a DBB design?

A: Double block and bleed allows the body cavity to be independently bled. When both seats are closed, the cavity can be checked for residual pressure, making the design suitable for metering pipelines requiring online verification or double isolation.

Q: What are the seat grease injection fittings used for?

A: They are used to inject sealant locally for temporary sealing when minor leakage occurs, and to replenish lubrication for the seats and stem during long-term operation, in accordance with the maintenance manual.

Project Case

At the DNO Iraq Tawke Oilfield export metering station in Iraq, sour crude oil containing 0.8% H₂S and chlorides was transported under Class 900 service. The original ball valves experienced a sharp increase in operating torque within 18 months due to seat swelling and deformation. Each failure required switching to the bypass line, resulting in an approximately 30,000-tonne loss of export volume.

Flowork supplied 36 NPS 8–16, Class 900 forged trunnion mounted ball valves featuring A105 integral forged valve bodies, full-bore flow passages, hard-chrome-plated balls, Devlon V seats, and double block and bleed (DBB) construction with automatic cavity pressure relief seats. The valves were designed in accordance with API 6D and tested in accordance with API 598, with on-site inspection witnessed by DNO.

Since commissioning in April 2022, the valves have operated continuously for three years with zero leakage and zero sticking. Metering deviation was reduced from ±3% to ±0.5%, significantly improving the stability of export metering.

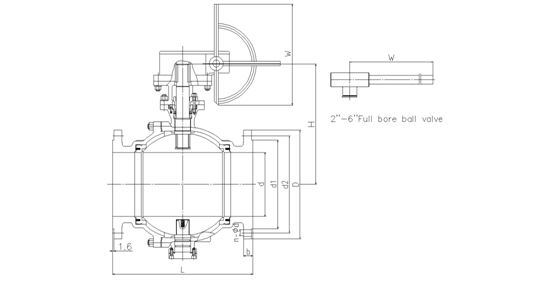

Class150
Forged trunnion mounted ball valve


NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

394

457

533

610

686

762

864

914

1016

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class300
Forgedtrunnion mounted ball valve

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

403

502

568

648

762

838

914

991

1143

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

Class600
Forgedtrunnion mounted ball valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

356

432

508

559

660

787

838

889

991

1092

1194

1397

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

1500

500

500

500

500

500

500

500

500

Class900
Forgedtrunnion mounted ball valve

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

500

500

500

500

500

500

500

500

500

 API Trim NO.
Table



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22



HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS









Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
