Butt Weld Check Valve

In high-pressure service above Class 900 involving flammable and explosive media, flange gaskets subjected to cyclic thermal loading are one of the most common sources of external leakage. Butt weld check valves eliminate the flanged connection interface by being welded directly into the pipeline, effectively removing the flange as an external leakage path.

This series is manufactured in accordance with API 594, covering NPS 2–24 and Class 600–2500. Valve bodies are available in forged steel and alloy steel, and every valve undergoes high-pressure testing in accordance with API 598.

Product Description

In high-pressure hydrogen and hydrocarbon pipelines, the most critical external leakage point is often not a casting defect in the valve body, but the flange gasket. After repeated temperature cycling, flange bolts can experience stress relaxation, reducing gasket seating force. High-pressure hydrogen-containing hydrocarbons can then gradually escape through the gasket joint and, if exposed to an ignition source or static discharge, can ignite rapidly. Repeated combustible-gas alarms in process units are often traced to flange leakage.

Butt weld check valves are welded directly to the pipeline at both ends. With no flanges, gaskets, or bolts, they eliminate this external leakage interface. The welded connection maintains its integrity under high pressure and is not subject to bolt relaxation and leakage after prolonged thermal cycling.

The bonnet uses a pressure-assisted self-sealing design. As process pressure increases, the metal sealing ring is pressed more tightly into position, improving sealing performance at higher pressures rather than developing the leakage risk associated with conventional gasketed bonnet connections.

For large-bore, high-pressure check valves, the disc incorporates a hydraulic cushioning mechanism. During closing, the disc is decelerated before contacting the seat, preventing severe impact from high-pressure reverse flow and water hammer. This protects the seat from deformation and reduces the risk of damage to the hinge pin and related components.

The sealing surfaces are hardfaced with Stellite 6 to resist erosion and surface degradation under prolonged exposure to high-pressure hydrogen-containing media, helping prevent internal leakage.

Butt-weld ends are machined strictly in accordance with ASME B16.25, allowing direct field welding without additional bevel modification.

Before shipment, every valve undergoes a high-pressure shell test at 1.5 times the design pressure, with test reports supplied with each valve.

Applications

  • Recycle hydrogen and high-pressure water-injection pump discharge lines in hydroprocessing units: For high-temperature, high-pressure hydrogen-containing hydrocarbon service where flange leakage cannot be tolerated.
  • High-pressure long-distance natural gas pipelines: Direct butt-welded installation provides a permanent connection with no external flange leakage point, minimizing the need for routine flange inspections.
  • Cracked-gas feed lines in ethylene plants: For high-pressure hydrocarbon service where gasketed flange connections present an elevated leakage risk; butt welding eliminates the external leakage interface.
  • Ultra-high-pressure boiler feedwater pump discharge lines: For high-pressure water service at Class 1500 and above, with the cushioning mechanism providing protection against water hammer and pump damage.
  • High-pressure production tree outlets in oil and gas fields: Butt-welded connections minimize maintenance requirements in remote field locations where frequent flange inspection is impractical.

Selection Guide

Valve Design: Select a swing check valve for small-bore, high-velocity service; a lift check valve for vertical upward flow; and a large-bore swing check valve with hydraulic damping for pipelines with nominal diameters of DN300 and above.

Bonnet Sealing: For Class 900 and above, a pressure-assisted self-sealing bonnet is required. Conventional bolted gasketed bonnets are more susceptible to leakage after repeated high-temperature cycling.

Material Selection: For high-temperature hydrogen service, select F22 chromium-molybdenum alloy steel. For hydrogen sulfide service, select sour-service materials that comply with NACE MR0175 requirements.

Weld Ends: Before field welding, verify that the weld-end bevel dimensions comply with ASME B16.25 to prevent excessive mismatch, inadequate penetration, or unacceptable weld quality.

Frequently Asked Questions

Q: How is a butt weld check valve serviced or repaired?

A: The valve uses a bolted bonnet and is fully serviceable. It can be cut out from the pipeline for workshop maintenance, or blind plates can be installed upstream and downstream before opening the bonnet for in-line maintenance. The valve is not permanently welded shut or non-removable.

Q: Can it be installed in a vertically upward-flowing pipeline?

A: Yes. A swing check valve can be used in horizontal pipelines and vertical upward-flow applications. For vertically downward flow, a spring-assisted closing design must be selected.

Q: What should be done if water hammer is severe under high-pressure service?

A: Large-bore, high-pressure versions can be equipped with a hydraulic damping cylinder. The disc closing speed can be controlled to reduce reverse-flow impact and prevent water hammer from damaging the valve body and sealing surfaces.

Project Case Study

The recycle hydrogen and high-pressure water-injection pump discharge lines of a hydroprocessing unit operated by PetroChina Indonesia use NPS 3, Class 1500 check valves for high-temperature, high-pressure hydrogen-containing hydrocarbon service. The original flanged check valves experienced external leakage after gasket relaxation under cyclic thermal loading, repeatedly triggering combustible-gas alarms and forcing the unit to operate at reduced load.

Flowork supplied 48 NPS 2–6, Class 1500 butt weld check valves featuring A182 F22 chromium-molybdenum alloy steel bodies, pressure-assisted self-sealing bonnets, swing discs with hydraulic cushioning, Stellite 6 hardfaced sealing surfaces, and butt-weld ends machined in accordance with ASME B16.25. The valves were designed in accordance with API 594 and underwent shell and high-pressure seat leakage testing in accordance with API 598, with inspection witnessed on site by the PetroChina Indonesia inspection department.

Since entering service in October 2021, the valves have operated continuously for four years with zero external leakage. Combustible-gas alarm events have been reduced from five per year to zero, unplanned unit load reductions have fallen from four per year to zero, and hydroprocessing unit operating availability has increased to 98.7%.

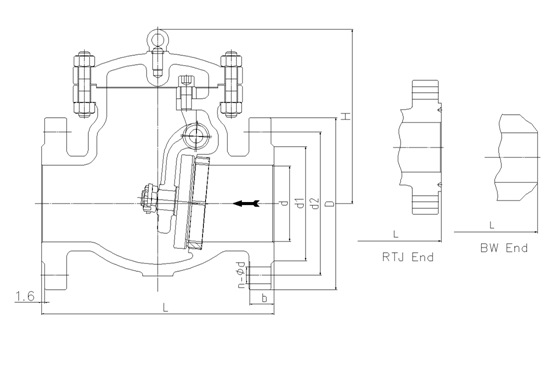

Class150
Butt Weld Check Valve



NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

438

489

591

L(RF)

mm

203

216

241

292

330

356

495

622

699

787

864

978

978

1295

L(BW)

mm

203

216

241

292

330

356

495

622

699

787

864

978

978

1295

L(RTJ)

mm

216

229

254

305

343

368

508

635

711

800

876

991

991

1308

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

216

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

254

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

132

147

176

198

255

320

380

440

480

530

580

618

657

760

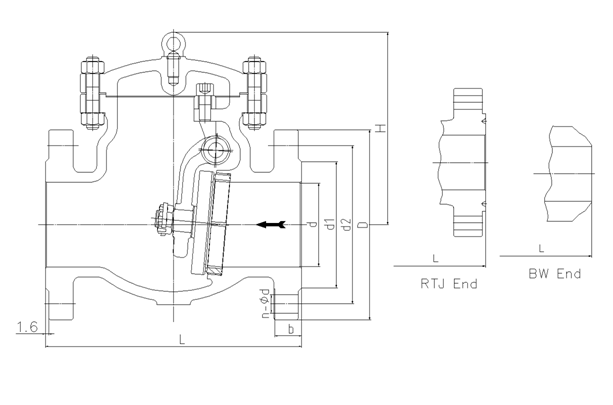

Class300
Butt Weld Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

203

254

305

337

387

432

483

584

L(RF)

mm

267

292

318

356

400

445

533

622

711

838

864

978

1016

1346

L(BW)

mm

267

292

318

356

400

445

533

622

711

838

864

978

1016

1346

L(RTJ)

mm

283

308

333

371

416

460

549

638

727

854

879

994

1035

1368

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

235

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

279

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

35

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

144

149

210

260

295

326

380

440

520

540

588

670

720

850

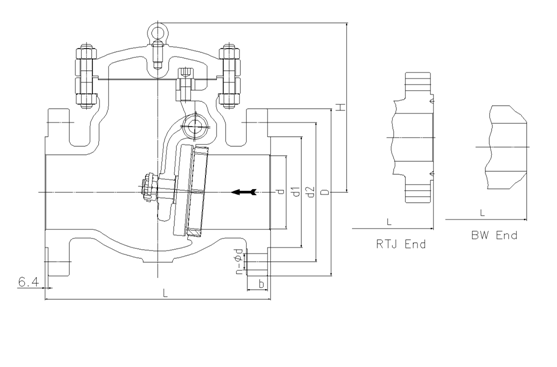

Class600
Butt Weld Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(BW)

mm

292

330

356

432

508

559

660

787

838

889

991

1092

1194

1397

L(RTJ)

mm

295

333

359

435

511

562

664

791

841

892

994

1095

1200

1407

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

190

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

29

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

170

178

246

290

320

360

430

502

554

595

680

778

970

1100

Class900
Butt Weld Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

57

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(BW)

mm

368

419

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

422

384

460

562

613

740

841

968

1038

1140

1232

1334

1568

d1

mm

92

105

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

244

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

41.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-29

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

200

220

280

320

360

400

480

560

630

680

780

880

1050

1200

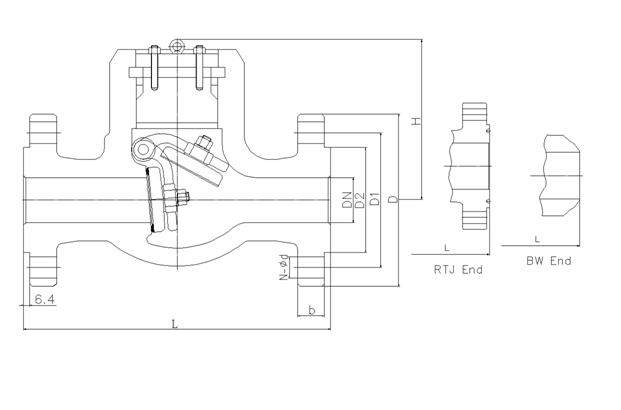

Class1500
Butt Weld Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

14

16

d

mm

47

57

70

92

111

136

178

222

263

289

330

L(RF)

mm

368

419

470

546

673

705

832

991

1130

1257

1384

L(BW)

mm

368

419

470

546

673

705

832

991

1130

1257

1384

L(RTJ)

mm

371

422

473

549

676

711

841

1000

1146

1276

1407

d1

mm

92

105

127

157

186

216

270

324

381

413

470

d2

mm

165

190.5

203.2

241.3

292.1

317.5

393.7

482.6

571.5

635

704.8

D

mm

216

244

267

311

375

394

483

585

675

750

825

b

mm

38.5

41.5

48

54

73.5

83

92.9

108

124

133.5

146.5

n-Фd

mm

8-26

8-29

8-32

8-35

8-42

12-39

12-45

12-51

16-54

16-61

16-67

H

mm

210

240

303

340

380

430

500

590

660

710

820

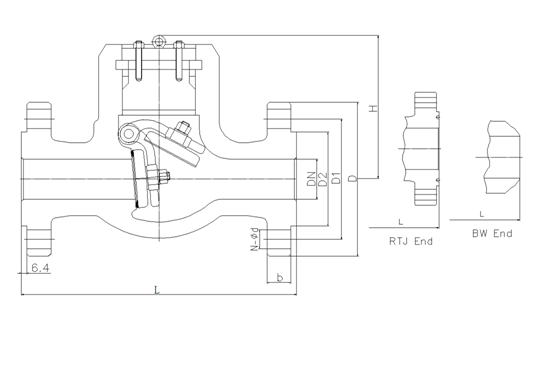

Class2500
Butt Weld Check Valve

NPS

in

2

2 1/2

3

4

5

6

8

10

12

d

mm

38

47

57

73

92

111

146

184

219

L(RF)

mm

451

508

578

673

794

914

1022

1270

1422

L(BW)

mm

451

508

578

673

794

914

1022

1270

1422

L(RTJ)

mm

454

514

584

683

807

927

1038

1292

1445

d1

mm

92

105

127

157

186

216

270

324

381

d2

mm

171.4

196.8

228.6

273

323.8

368.3

438.1

539.7

619.1

D

mm

235

267

305

356

419

483

550

675

760

b

mm

51

57.5

67

76.5

92.5

108

127

165.5

184.5

n-Фd

mm

8-29

8-32

8-35

8-42

8-48

8-54

12-54

12-67

12-74

H

mm

230

260

330

370

410

460

530

620

690

API Trim NO.
Table



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22



HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS









Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table







POPULAR PRODUCTS

High-temperature globe valves are designed for steam, hot oil, and other high-temperature process services. They feature chromium-molybdenum steel or heat-resistant stainless steel bodies, together with extended bonnets that help dissipate heat and protect the stem packing from excessive temperatures.

Face-to-face dimensions comply with ANSI B16.10, flange dimensions with ANSI B16.5, design and manufacture are in accordance with BS 1873, and pressure testing is performed in accordance with API 598. The product range covers NPS 2–12 and Class 150–900. Available body materials include WC6, WC9, CF8M, CN7M, and other grades.

Compared with other material, Bronze valves are good choices for industries which require the following characteristics: Desalination and Highly corrosive environments.Sedelon manufactures different types of Bronze valves which are suitable for Chemical and Oil Industries, Sea Water Service, Desalination Plants, Off-Shore and Platforms.

Super stainless steel ball valves feature bodies and balls made from super austenitic stainless steels such as 254SMO, offering greater resistance to chloride-induced corrosion than 316L stainless steel. They are designed for high-chloride environments, seawater systems, and selected acidic services. Face-to-face dimensions comply with ANSI B16.10, flange dimensions with ASME B16.5, butt-weld ends with ASME B16.25, design and manufacture with API 6D, and pressure testing with API 598. The range covers NPS 2–24 and Class 150–900, with available body materials including 254SMO (S31254), CN7M, Monel, and CW2M.

Butt-weld globe valves are connected directly to the pipeline by welding rather than flanged joints. This eliminates flange gaskets as a potential external leakage path, making them suitable for high-temperature, high-pressure service and applications where external leakage must be minimized.

Face-to-face dimensions comply with ANSI B16.10, butt-welding ends with ANSI B16.25, design and manufacture are in accordance with BS 1873, and pressure testing is performed in accordance with API 598. The product range covers NPS 2–12 and Class 150–1500. Available body materials include WCB, WC6, CF8M, CN7M, LCB, and other grades.

POPULAR PRODUCTS

Seraphinite AcceleratorOptimized by Seraphinite Accelerator
Turns on site high speed to be attractive for people and search engines.
