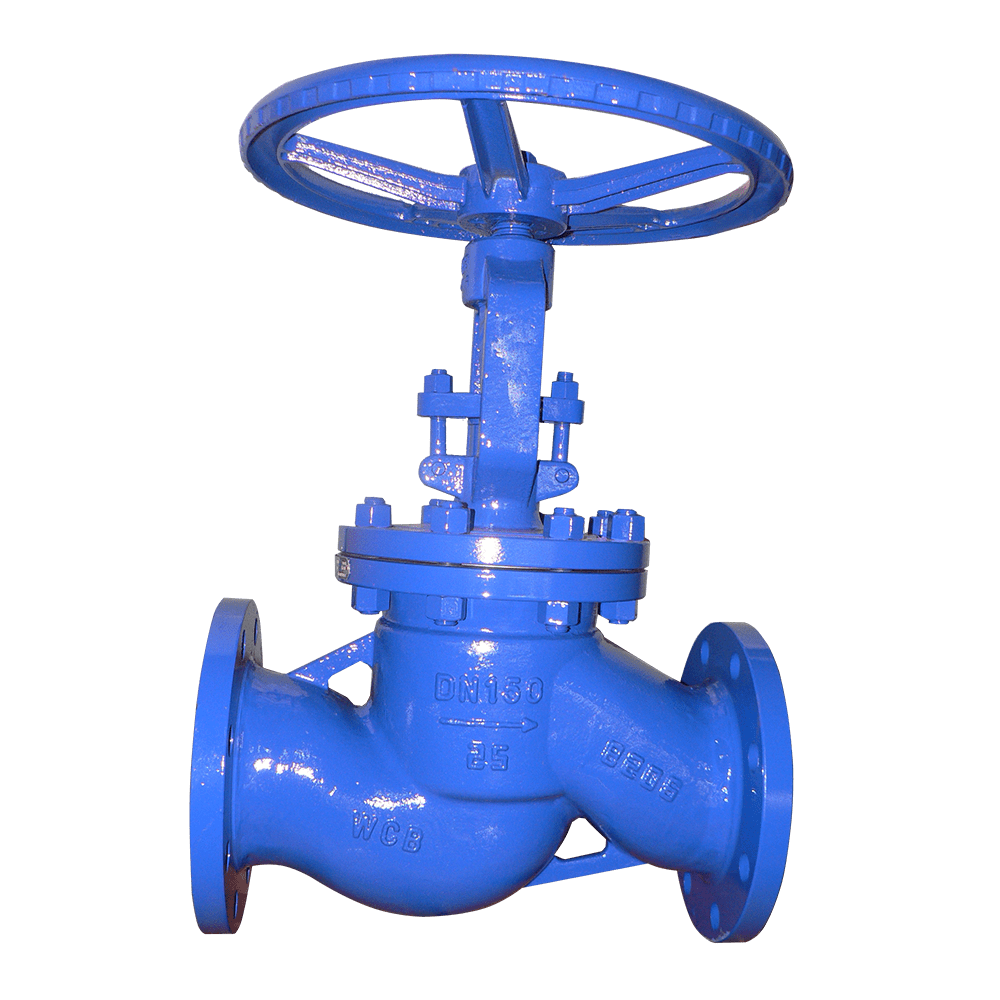

DIN3356 golbe Valve

Our valves utilize cutting-edge technology, undergo rigorous quality control, ensuring outstanding performance and durability.

DIN3356 golbe Valve

Face to Face Dimensions: EN558-1/DIN3202 F2

Flange end Dimension : EN1092-1/DIN2545

Design and Manufacture：EN 13709/DIN3356

Pressure Test：EN12266/DIN3230

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

product feature

Follow Us

Application

Face to Face Dimensions: EN558-1/DIN3202 F2

Flange end Dimension : EN1092-1/DIN2545

Design and Manufacture：EN 13709/DIN3356

Pressure Test：EN12266/DIN3230

Materials：WCB 、WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1

LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

PN16

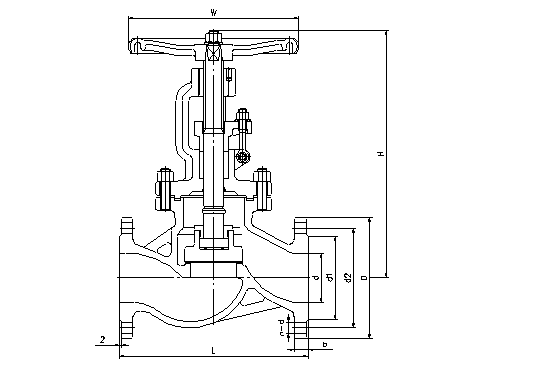

DIN3356 GolbeValve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	158	188	212	268	320	378	438	490
d2	mm	125	145	160	180	210	240	295	355	410	470	525
D	mm	165	185	200	220	250	285	340	405	460	520	580
b	mm	18	18	20	20	22	22	24	26	28	30	32
n-Фd	mm	4-18	8-18	8-18	8-18	8-18	8-22	12-22	12-26	12-26	16-26	16-30
H	mm	305	354	402	437	496	541	699	815	914	1189	1350
W	mm	200	200	250	250	300	350	400	450	500	550	600

PN25
DIN3356 Golbe Valve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	162	188	218	278	335	395	450	505
d2	mm	125	145	160	190	220	250	310	370	430	490	550
D	mm	165	185	200	235	270	300	360	425	485	555	620
b	mm	20	22	24	24	28	28	30	32	34	38	40
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-26	12-30	16-30	16-33	16-36
H	mm	325	363	415	453	505	556	744	864	948	1269	1450
W	mm	200	200	250	300	350	400	450	500	550	600	600

PN40
DIN3356Golbe Valve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	230	290	310	350	400	480	600	730	850	980	1100
d1	mm	102	122	138	162	188	218	285	345	410	465	535
d2	mm	125	145	160	190	220	250	320	385	450	510	585
D	mm	165	185	200	235	270	300	375	460	515	580	660
b	mm	20	22	24	24	28	28	34	38	42	46	50
n-Фd	mm	4-18	8-18	8-18	8-22	8-26	8-26	12-30	12-33	16-33	16-36	16-39
H	mm	325	370	430	480	532	589	783	888	965	1285	1512
W	mm	200	200	250	300	350	400	450	500	550	600	600

PN63 DIN3356 Golbe
Valve

DN		50	65	80	100	125	150	200	250	300	350	400
d	mm	50	63	76	100	125	150	200	250	300	336	387
L(RF)	mm	300	340	380	430	500	550	650	775	900	1025	1150
d1	mm	102	122	138	162	188	218	285	345	410	465	535
d2	mm	135	160	170	200	240	280	345	400	460	525	585
D	mm	180	205	215	250	295	345	415	470	530	600	670
b	mm	26	26	28	30	34	36	42	48	52	56	60
n-Фd	mm	4-22	8-22	8-22	8-28	8-30	8-33	12-36	12-36	16-36	16-39	16-42
H	mm	305	354	402	437	496	541	699	815	914	1189	1350
W	mm	200	200	250	250	300	350	400	450	500	550	600

Name

Email

Company

Phone

Customer Type

Choose Your industry

Message

POPULAR PRODUCTS

Slab Gate Valve

Main material：

WC6 、WC9 、CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1、LC2、LC3、LCB、LCC、Monel、 20# Alloys、4A、5A, ect.

Super Stainless Stee Plug Valves

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：API 6D

Pressure Test：API598

Materials： CF8、 CF8M、 CF3、 CF3M 、CN7M、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

Low Temperature Globe Valves

Face to Face Dimensions:ANSI B16.10

Flange end Dimension :ANSI B16.5

Butt Welded Dimensions：ANSI B16.25

Design and Manufacture：BS1873

Pressure Test：API598

Materials：CF8、 CF8M、 CF3、 CF3M 、CN7M、LC1LC2、LC3、LCB、LCC、Monel、20# Alloys、4A、5A、C95800、C95500, ect.

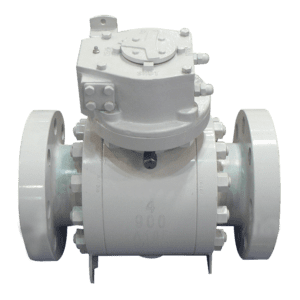

High temperature ball valve
