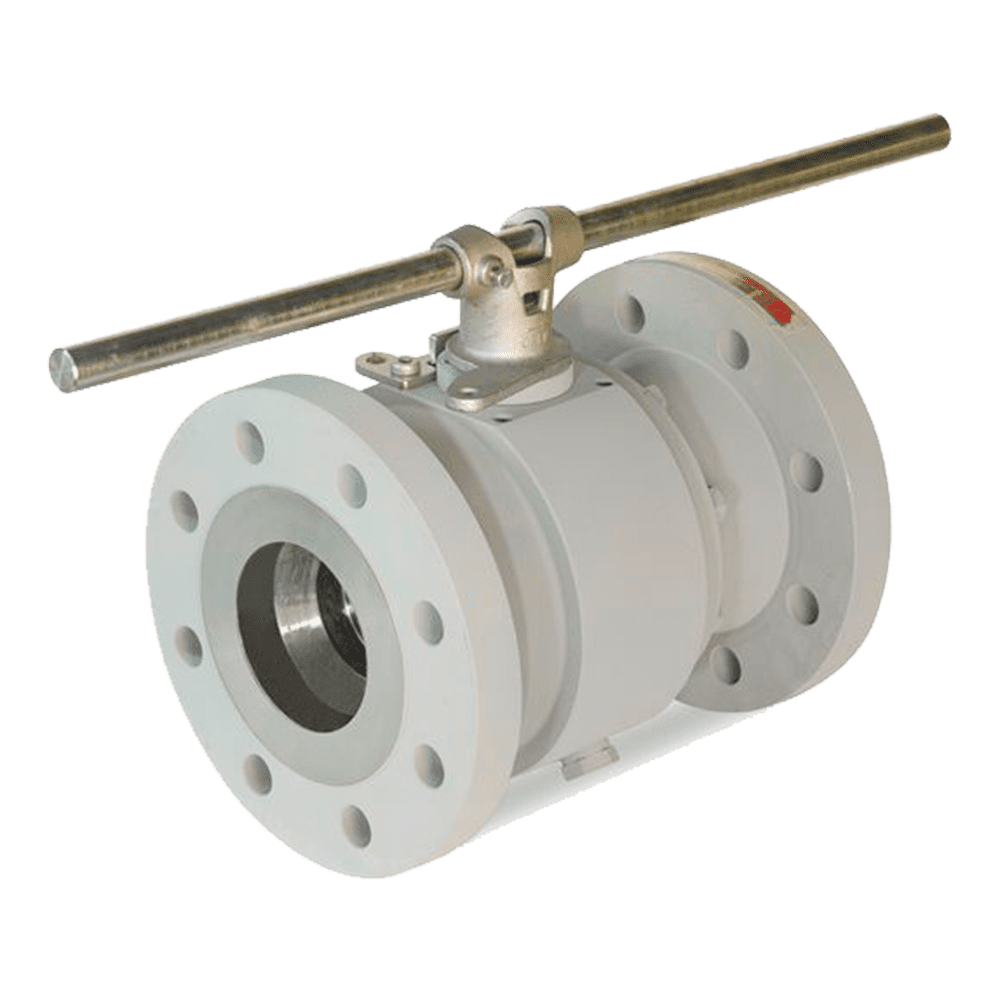

Low Emission Ball Valves

Low-emission ball valves are designed and manufactured per API 6D, pressure-tested per API 598, and have passed ISO 15848-1:2006 fugitive emission type testing. They cover NPS 2″–24″, Class 150–900. Body materials include A105, F304/F316, LF2, F51/F53, and F11/F22. Face-to-face dimensions per ANSI B16.10, flanges per ANSI B16.5. A ball valve’s stem only rotates 90°, but it has one more joint face than a gate valve—the body joint—and both must be controlled.

Product Description

A ball valve’s fugitive leakage paths differ from those of gate and globe valves, so the structure must be clarified first for proper selection. Gate and globe valve stems move up and down, so stem sealing is subject to axial friction; a ball valve stem only rotates 90°, so the packing is subject to rotary friction, which wears more evenly and at a lower rate. This leads to a commonly misunderstood conclusion: ball valves generally do not need the highest durability class of ISO 15848-1—CO3 (100,000 cycles) is intended for frequently cycled globe valves, while most ball valve applications are satisfied by CO1 or CO2.

What a ball valve genuinely adds is the body joint. In two-piece or side-entry ball valves, the body is bolted together, and this joint is a third external leakage path that gate and globe valves do not have. A low-emission design must control both the stem seal and the body joint.

The certification point must be stated clearly to avoid procurement errors: API 624 applies to rising-stem valves (gate, globe), API 641 applies to quarter-turn valves, and ball valves fall under API 641. This differs from check valves—check valves have no stem, so neither standard applies, and only ISO 15848-1 can be used.

Application Scenarios

  • 1. Hydrocarbon pipelines in refining and petrochemical units: for sealing points within LDAR monitoring scope, low-emission ball valves control both the stem and body joint leakage paths simultaneously.
  • 2. Natural gas processing and compressor outlets: for wet CO₂-containing service, NACE MR0175 material combinations are available.
  • 3. Chemical toxic media pipelines (chlorine, ammonia): supplied to ISO 15848-1 Class A with helium mass spectrometry leak test reports.
  • 4. Tank farms and loading arms: for volatile media such as gasoline and naphtha, fire-safe construction per API 607 is available.
  • 5. Hydrogen and refinery hydrogenation units: small-molecule media are more sensitive to sealing, requiring stem seals customized for small-molecule service.

Selection Guide

Durability class: Ball valves typically cycle far less frequently than globe valves. Select CO1 for fewer than 100 operations per year, CO2 for routine process isolation, and CO3 only when cycling multiple times per day—there is no need to always specify the highest class.

Sealing class: Class B satisfies general LDAR requirements for routine hydrocarbons and natural gas; select Class A for highly toxic media, TA Luft-regulated service, or hydrogen, with a helium leak test report.

Sealing coverage: Both the stem seal (PTFE lip seal + O-ring + graphite emergency ring) and the body joint (spiral-wound graphite gasket or RTJ metal ring gasket) must be covered. Addressing only the stem seal is incomplete.

Temperature and seat: PTFE seats are suitable below approximately 200°C; use PEEK or metal seats for higher temperatures; for cryogenic service, provide an extended bonnet and low-temperature materials. Select the body material per the medium: A105, F304/F316, LF2, F51/F53, or F11/F22.

FAQ

Q: Do low-emission ball valves require API 624 or API 641?

API 641. API 624 applies to rising-stem valves (gate, globe), and API 641 applies to quarter-turn valves, which includes ball valves. Check valves have no stem, so neither standard applies—only ISO 15848-1 can be used.

Q: Are ball valves harder to make low-emission than gate valves?

The difficulties differ. A ball valve stem involves rotary friction, which wears more evenly; however, split-body ball valves have an additional body joint, a third leakage path that gate and globe valves do not have, and it must be controlled together with the stem seal.

Q: Do ball valves also need the CO3 durability class?

Most applications do not. CO3 (100,000 cycles) targets frequently cycled globe valves; ball valves typically operate fewer than 100 times per year, so CO1 suffices, and CO2 for routine isolation.

Project Case

At ExxonMobil’s Baytown refining and petrochemical complex in Texas, USA, for the light hydrocarbon and ethylene pipelines of an olefins unit, subject to strict LDAR monitoring under EPA and Texas TCEQ regulations, the original standard ball valves leaked methane at the stem packing at levels up to 1,100 ppmv. The unit’s annual VOC emissions exceeded limits and faced fines of USD 25,000 per day. Flowork supplied 64 low-emission ball valves, NPS 2–8, Class 300: A216 WCB body, ISO 15848-1 Class BH certified, dual packing box with Belleville spring live-loaded packing, one-piece fugitive-emission-proof stem with a leak detection port, designed per API 6D and fugitive-emission tested per API 624, with on-site witnessing by ExxonMobil Global Projects quality control. Since commissioning in 2023, they have run continuously for two years. Measured fugitive emissions per valve have remained consistently below 60 ppmv, the unit’s annual reported VOC emissions dropped by 49%, and all LDAR inspections passed.

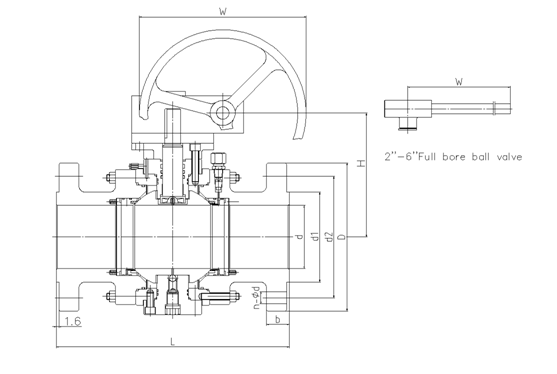

Class150
Low emission ball valves


NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

438

489

591

L(RF)

mm

178

190

203

229

394

457

533

610

686

762

864

914

1016

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

120.5

139.5

152.5

190.5

241.5

298.5

362

432

476

540

578

635

749.5

D

mm

152

178

190

229

279

343

406

483

533

597

635

699

813

b

mm

16

18

19

24

26

29

31

32

35

37

40

43

48

n-Фd

mm

4-19

4-19

4-19

8-19

8-22

8-22

12-25

12-25

12-29

16-29

16-32

20-32

20-35

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

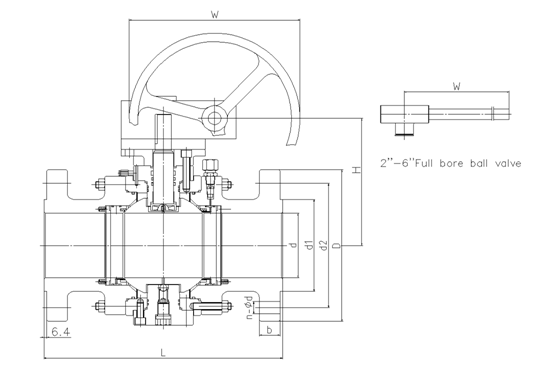

Class300
Low emission ball valves

NPS

in

2

2 1/2

3

4

6

8

10

12

14

16

18

20

24

d

mm

51

64

76

102

152

203

254

305

337

387

432

483

584

L(RF)

mm

216

241

283

305

403

502

568

648

762

838

914

991

1143

d1

mm

92

105

127

157

216

270

324

381

413

470

533

584

692

d2

mm

127

149

168.5

200

270

330

387.5

451

514.5

571.5

628.5

686

813

D

mm

165

190

210

254

318

381

445

521

584

648

711

775

914

b

mm

23

26

29

32

37

42

48

51

54

58

61

64

70

n-Фd

mm

8-19

8-22

8-22

8-22

12-22

12-25

16-29

16-32

20-32

20-35

24-35

24-35

24-41

H

mm

176

200

215

252

330

448

505

556

620

700

750

805

1110

W

mm

350

400

400

500

1000

300

350

400

500

500

500

500

500

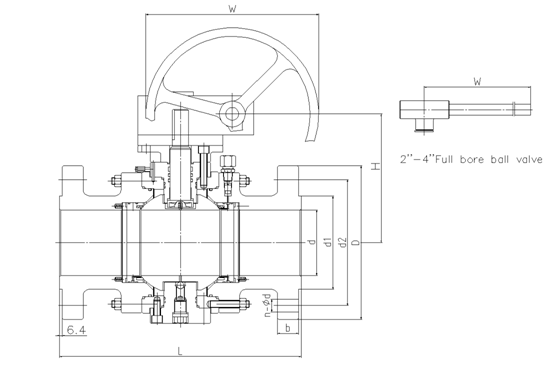

Class600
Low emission ball valves

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

51

76

102

127

152

200

248

298

327

375

419

464

559

L(RF)

mm

292

356

432

508

559

660

787

838

889

991

1092

1194

1397

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

127

168.5

216

267

292

349

432

489

527

603

654

724

838

D

mm

165

210

273

330

356

419

508

559

603

686

743

813

940

b

mm

26

32

38

45

48

56

64

67

70

77

83

89

102

n-Фd

mm

8-19

8-22

8-25

8-29

12-29

12-32

16-35

20-35

20-38

20-41

20-44

24-44

24-52

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

1500

500

500

500

500

500

500

500

500

Class900
Low emission ball valves

NPS

in

2

3

4

5

6

8

10

12

14

16

18

20

24

d

mm

47

73

98

121

146

190

234

282

311

354

400

444

533

L(RF)

mm

368

381

457

559

610

737

838

965

1029

1130

1219

1321

1549

L(RTJ)

mm

371

384

460

562

613

740

841

968

1039

1140

1232

1334

1568

d1

mm

92

127

157

186

216

270

324

381

413

470

533

584

692

d2

mm

165

190.5

235

279.4

317.5

393.7

469.9

533.4

558.8

615.9

685.8

749.3

901.7

D

mm

216

241

292

349

381

470

545

610

640

705

785

855

1040

b

mm

38.5

38.5

44.5

51

56

64

70

79.5

86

89

102

108

140

n-Фd

mm

8-26

8-26

8-32

8-35

12-32

12-39

16-39

20-39

20-42

20-45

20-51

20-54

20-67

H

mm

192

279

315

320

323

381

518

568

665

730

795

825

973

W

mm

600

1000

1500

1500

500

500

500

500

500

500

500

500

500

API Trim NO.
Table



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem



No
  of internal parts



Seat
  ring or body



Gate、disc 、ball or body



Stem

01

13Cr

13Cr

13Cr

31

STELLITE

321SS

321SS

02

304SS

304SS

304SS

32

STELLITE

STELLITE

321SS

03

310SS

310SS

310SS

33

347SS

347SS

347SS

04

HARD 13Cr

HARD 13Cr

13Cr

34

STELLITE

347SS

347SS

05

STELLITE

STELLITE

13Cr

35

NICKEL ALLOY

13Cr

13Cr

06

Cu-Ni

13Cr

13Cr

36

A105/PTFE

A105+ENP

A105+ENP

07

13Cr

HARD 13Cr

13Cr

37

A105/PTFE

WCB+ENP

A105+ENP

08

STELLITE

13Cr

13Cr

38

13Cr/PTFE

13Cr

13Cr

09

Cu-Ni

Cu-Ni

Cu-Ni

39

304SS/PTFE

304SS

304SS

10

316SS

316SS

316SS

40

316SS/PTFE

316SS

316SS

11

Cu-Ni

STELLITE

Cu-Ni

41

A105/RPTFE

A105+ENP

A105+ENP

12

STELLITE

316SS

316SS

42

A105/RPTFE

WCB+ENP

A105+ENP

13

ALLOY 20

ALLOY 20

ALLOY 20

43

13Cr/RPTFE

13Cr

13Cr

14

STELLITE

ALLOY 20

ALLOY 20

44

304SS/RPTFE

304SS

304SS

15

STELLITE

STELLITE

304SS

45

316SS/RPTFE

316SS

316SS

16

STELLITE

STELLITE

316SS

46

A105/NYLON

A105+ENP

A105+ENP

17

STELLITE

STELLITE

347SS

47

A105/NYLON

WCB+ENP

A105+ENP

18

STELLITE

STELLITE

ALLOY 20

48

A105/NYLON

304SS

304SS

19

MONEL

MONEL

MONEL

49

A105/NYLON

316SS

316SS

20

BRONZE

BRONZE

13Cr

50

13Cr/NYLON

13Cr

13Cr

21

HASTELLOY B

HASTELLOY B

HASTELLOY B

51

304SS/NYLON

304SS

304SS

22



HASTELLOY C

HASTELLOY C

52

316SS/NYLON

316SS

316SS

23

STELLITE

304SS

304SS

53

A105/PEEK

A105+ENP

A105+ENP

24

304LSS

304LSS

304LSS

54

A105/PEEK

WCB+ENP

A105+ENP

25

STELLITE

304LSS

304LSS

55

13Cr/PEEK

13Cr

13Cr

26

STELLITE

STELLITE

304LSS

56

304SS/PEEK

304SS

304SS

27

316LSS

316LSS

316LSS

57

316SS/PEEK

316SS

316SS

28

STELLITE

316LSS

316LSS











29

STELLITE

STELLITE

316LSS







30

321SS

321SS

321SS









Note:please indicate it directly in the
order for the internal part’smaterial uncovered in the table
