Choosing the right valve end connection is one of the most consequential—and most overlooked—decisions in pipeline design. Specify the wrong joint and you risk crevice corrosion, leakage under thermal cycling, or a weld that fails inspection. At Sedelon, we manufacture socket weld, butt weld, and flanged valves for refineries, power plants, and chemical facilities worldwide, and we are asked this question on nearly every bid. This guide compares all three connections on the factors that actually matter—bore size, pressure, temperature, and lifecycle cost—so you can specify with confidence.
1. What Socket Weld, Butt Weld, and Flanged Connections Actually Are

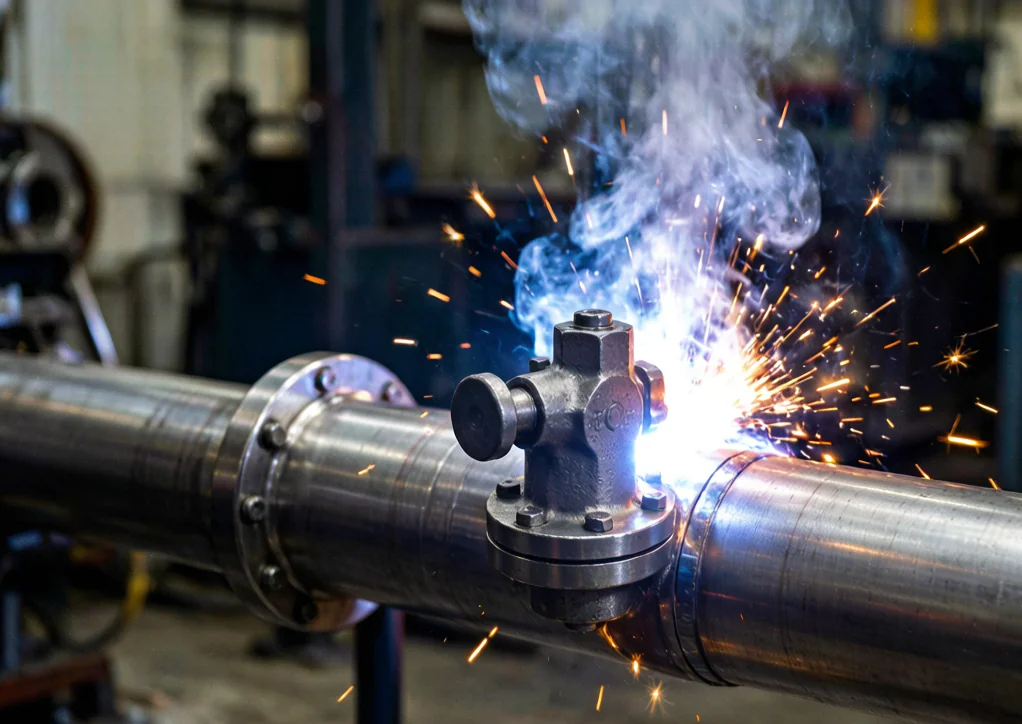

Socket Weld Ends
Socket weld (SW) ends are designed for smaller-diameter, high-pressure pipe. The valve has a socket-shaped recess; the pipe slips into the socket and is welded around the outside fillet. Per ASME B16.11, socket weld fittings are typically used for pipe sizes up to NPS 2 (DN 50) and pressure classes up to 6 000 LB. Because the bore is slightly larger than the pipe ID, there is a small crevice at the socket bottom; proper installation requires a 1.6 mm (1/16 in.) expansion gap before welding to prevent thermal fatigue cracking. For high-integrity small-bore service, specifiers often pair socket weld ends with API 602 forged steel gate valves.

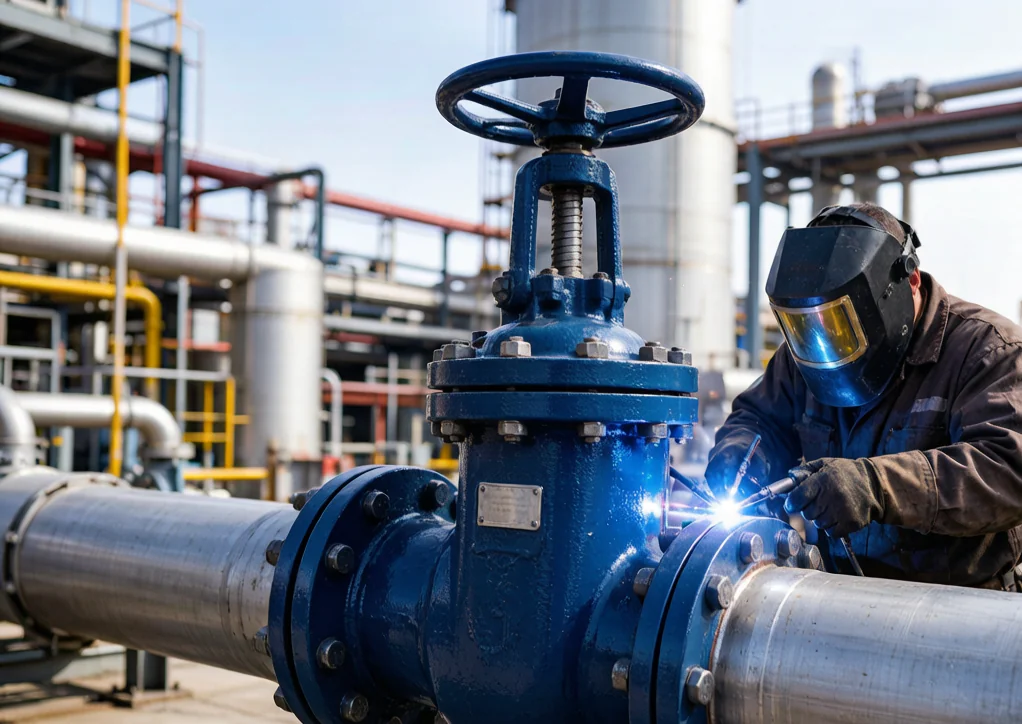

Butt Weld Ends
Butt weld (BW) ends join two components by welding the abutting ends directly together, usually after V-preparation per ASME B16.25. The result is a smooth, continuous internal surface with no crevice. Butt weld is the default for NPS 2½ and larger, high-temperature, and cyclic services because it distributes stress evenly and allows pigging. If your line needs full-bore flow or will see frequent thermal transients, a butt weld gate valve is usually the safer long-term choice.

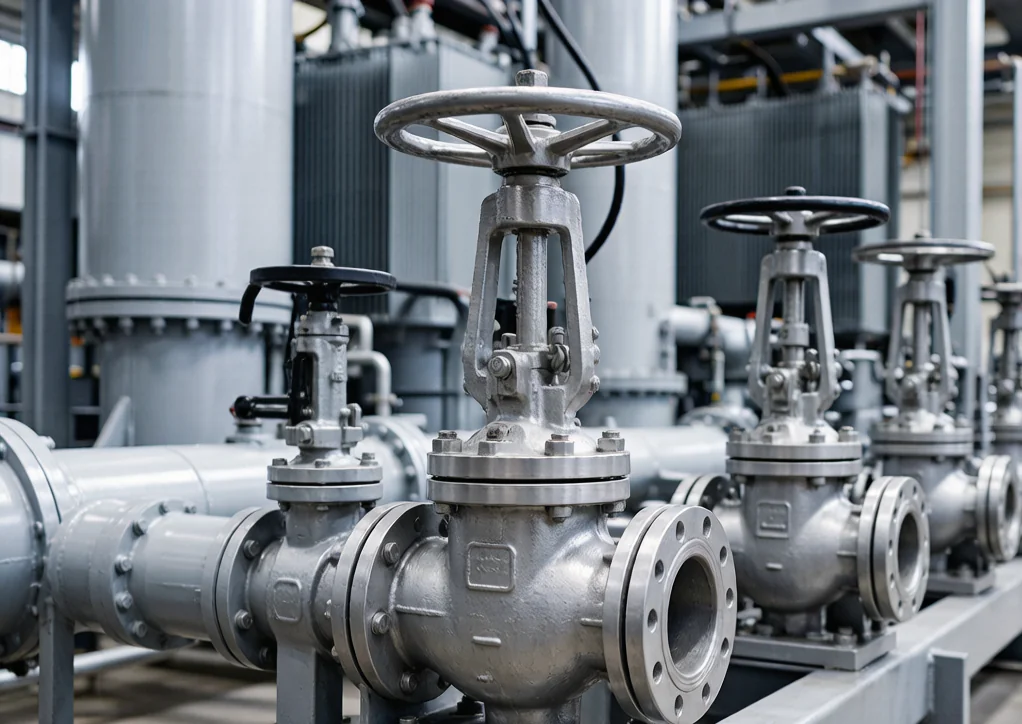

Flanged Ends
Flanged ends use two bolted plates with a gasket to create a separable mechanical joint. Standardized under ASME B16.5 / B16.47, flanges excel where equipment must be disconnected for inspection, maintenance, or isolation. The trade-off is higher weight, more bolting, and a potential leak path at the gasket. When your P&ID calls for removable isolation, flanged globe valves and flanged check valves are the standard answer.
2. When Socket-Weld Ends Outperform the Alternatives
Socket weld ends win in four specific situations:
- Small-bore, high-pressure lines: Instrumentation take-offs, vents, drains, bypass lines, and sample connections up to NPS 2 benefit from the compact socket recess and the single fillet weld.
- Space-constrained skids and pipe racks: The socket joint adds less overall length than a pair of flanges and needs no wrench clearance for bolting.
- Faster, lower-cost installation: A socket weld fillet can be completed in less time and with fewer weld passes than a comparable butt weld, reducing skilled-labor hours on site.
- Higher integrity than threaded connections: Unlike threaded ends, socket welds eliminate thread-root leak paths while remaining more economical than flanged assemblies in small sizes.
These advantages make socket weld forged gate valves and socket weld check valves common choices in refinery auxiliary piping, compressor skids, and power-plant instrumentation loops.
3. When Butt Weld Is the Smarter Choice
Butt weld ends become the better engineering decision when any of the following apply:
- Line size is NPS 2½ (DN 65) or larger. ASME B16.11 socket weld coverage effectively stops at NPS 2; larger valves transition to butt weld by design.
- Thermal cycling is expected. Steam lines, hot-oil circuits, and cryogenic systems expand and contract repeatedly. Butt welds distribute stress evenly and avoid the stress concentration created by a socket fillet.
- The line must be piggable or full-bore. Butt weld joints leave a smooth internal contour, which is essential for pigging, inspection, and slurry service.
- Corrosion is a concern. Crevices—such as the one at the bottom of a socket—can trap corrosive fluids and accelerate localized attack. Butt weld eliminates that geometry.
For these cases, Sedelon offers butt weld globe valves and butt weld check valves in carbon steel, stainless steel, and special alloys.
4. When Flanged Ends Make More Sense
Flanged connections remain indispensable on process plants for one reason: they can be taken apart. Specifiers prefer flanged ends when:
- The valve must be removed during turnarounds without cutting pipe.
- The line connects to existing flanged equipment, pumps, or vessels.
- On-site welding capacity is limited; a mechanical joint can be assembled by pipe fitters.
- The application is large diameter or low pressure where welding is uneconomical.
Flanges add weight and gasket inventory, but they pay for themselves in maintainability. Sedelon’s gate valve, globe valve, and check valve ranges all include flanged configurations up to the ratings required by ASME B16.34.
5. Side-by-Side Decision Matrix
| Criterion | Socket Weld | Butt Weld | Flanged |
|---|---|---|---|
| Typical size range | ≤ NPS 2 (DN 50) | NPS 2½ and larger | All sizes |
| Pressure class | Up to 6 000 LB | All classes | 150–2 500 LB typical |
| Internal surface | Small crevice at socket bottom | Smooth, continuous | Gasket creates step |
| Relative installed cost | Lower | Higher (skilled welds) | Medium (gaskets + bolts) |
| Maintenance access | Requires cut-out | Requires cut-out | Bolt-off access |
| Best for | Small-bore high-pressure static service | Cyclic, corrosive, piggable lines | Frequent maintenance, isolation points |
Need Help Matching the Right End Connection to Your Line List?
Sedelon’s application engineers review pressure, temperature, pipe size, and code requirements to recommend socket weld, butt weld, or flanged valves that keep your project on schedule and within spec.
6. Application Examples from the Field
- Refinery auxiliary bypass lines: NPS ¾–1½ vent and drain circuits often use socket weld forged globe valves for their compact footprint and high-pressure rating.
- Power plant main steam: High-temperature, cyclic steam headers favor butt weld gate valves to avoid thermal fatigue and to maintain full-bore flow.
- Chemical plant header isolation: Flanged ball valves and butterfly valves let operators isolate process trains during scheduled turnarounds without welding.
7. Interactive Quick Selection Guide
Use the foldable guide below to narrow down the best end connection for your service.
My line size is NPS 2 (DN 50) or smaller and pressure is high.
Start with socket weld. Pair it with an API 602 forged steel valve for the highest integrity in a compact package. Consider a socket weld forged gate valve.
My line is NPS 2½ or larger, or it sees thermal cycling.
Choose butt weld. The continuous internal surface and even stress distribution handle thermal transients and pigging better than socket or flanged joints.
I need to remove the valve during shutdowns without cutting pipe.
Choose flanged. A bolted joint with the correct gasket is the only option that gives repeatable removal and reassembly.
My service is corrosive, sour, or sensitive to crevice attack.
Avoid socket weld because of the internal crevice. A butt weld gate valve or a flanged valve with the right metallurgy is the safer path.
8. Frequently Asked Questions
What is the maximum size for socket weld valves?
ASME B16.11 generally limits socket weld fittings to NPS 2 (DN 50). Larger sizes move to butt weld because a socket joint becomes impractical and the crevice effect grows.
Is socket weld or butt weld better for high-pressure steam?
For small-bore, high-pressure steam at relatively stable temperatures, socket weld ends work well. For main steam headers with thermal cycling, butt weld ends are preferred because they eliminate the socket crevice and distribute thermal stress more evenly.
Why are flanged valves still used in process plants?
Flanged valves remain popular because they are easy to remove during maintenance. In complex plants, the ability to unbolt a valve and drop it out without cutting pipe saves hours of outage time and reduces hot-work permits.
Do socket weld valves need a gap before welding?
Yes. A 1.6 mm (1/16 in.) gap between the pipe end and the socket bottom allows for differential thermal expansion. Omitting this gap is a common cause of socket weld cracking in high-temperature service.
Are socket weld valves suitable for sour gas or H2S service?
Sour gas service is generally avoided with socket weld ends because the socket crevice can concentrate chlorides and H2S, accelerating sulfide stress cracking or pitting. Butt weld or flanged valves with sour-service-qualified materials are usually specified instead.
Can I mix socket weld, butt weld, and flanged valves on the same line?
Yes, but transitions must be engineered carefully. Common examples include a butt weld main line with socket weld instrument take-offs and flanged isolation valves. Just ensure wall thickness, pressure rating, and material specifications match at each transition.
Specifying the right end connection is as important as selecting the right valve body material or trim. Socket weld ends deliver a compact, cost-effective, high-integrity joint for small-bore, high-pressure service; butt weld ends are the long-term answer for large, cyclic, and corrosive lines; and flanged ends keep maintenance access open. If you are comparing these options for an upcoming project, Sedelon’s application engineers can review your line list and recommend the most economical, code-compliant solution.
